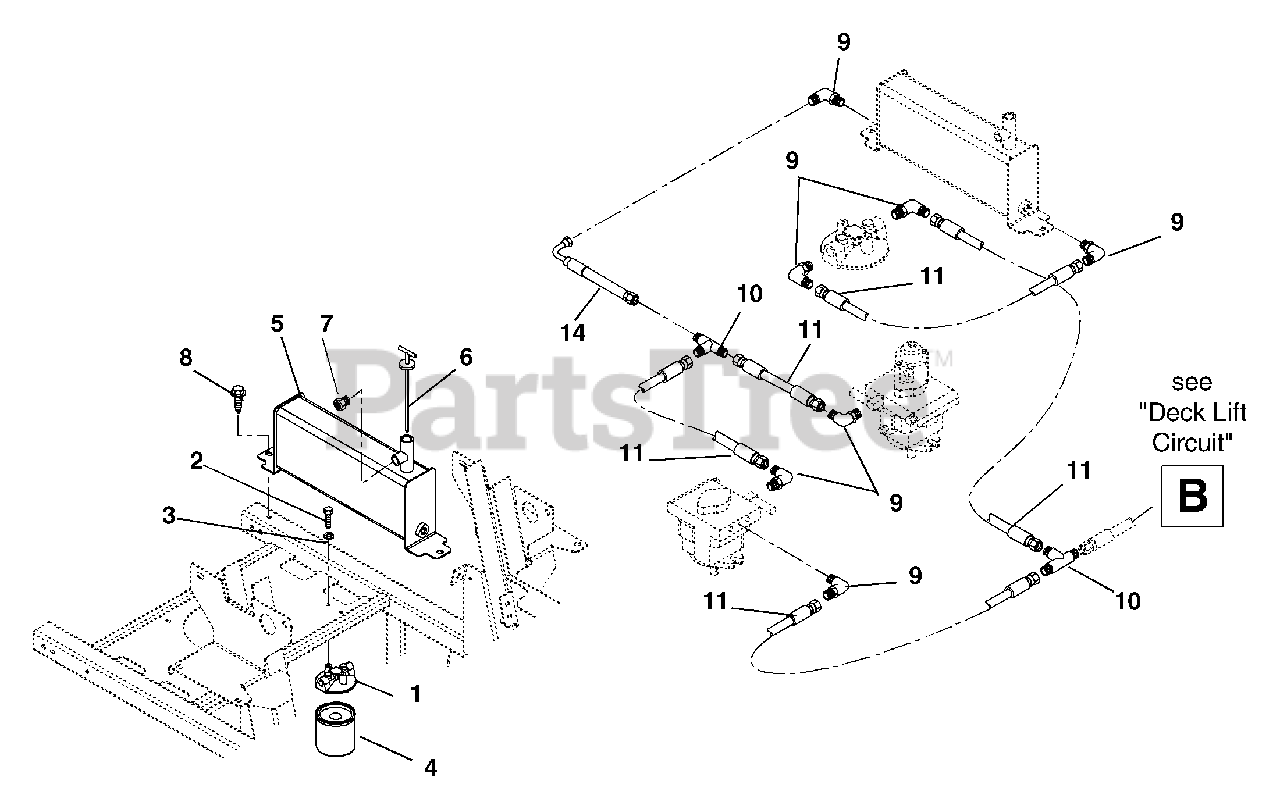

992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Ariens 09072100

HEAD, FILTER

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 09246900

ELEMENT, FILTER BE-40-0

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 09233159

TANK, HYDRAULIC WMT - ORANGE
(Superseded to 09277559)

$

$

Not available

6

Ariens 00566400

DIPSTICK, HYDRAULIC TANK

$129.99

$

Usually ships in 4-12 days

0

7

Ariens 07050600

PLUG, BREATHER 3/8"

$

$

Not available

8

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

10

Ariens 07019500

ADPTR-PIPE (063T-6-6)

$

$

Not available

11

Ariens 08811300

HOSE,HYD VALVE TO TANK

$39.99

$

Usually ships in 4-12 days

0

12

Ariens 09234700

ADP 0503-4-6

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 08901000

ADPT 3903-6-6

$20.99

$

Usually ships in 4-12 days

0

14

Ariens 09221000

HOSE, HYD .38-29-OK F6LO-F6J9

$

$

Not available
