992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Continuity Diagram Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

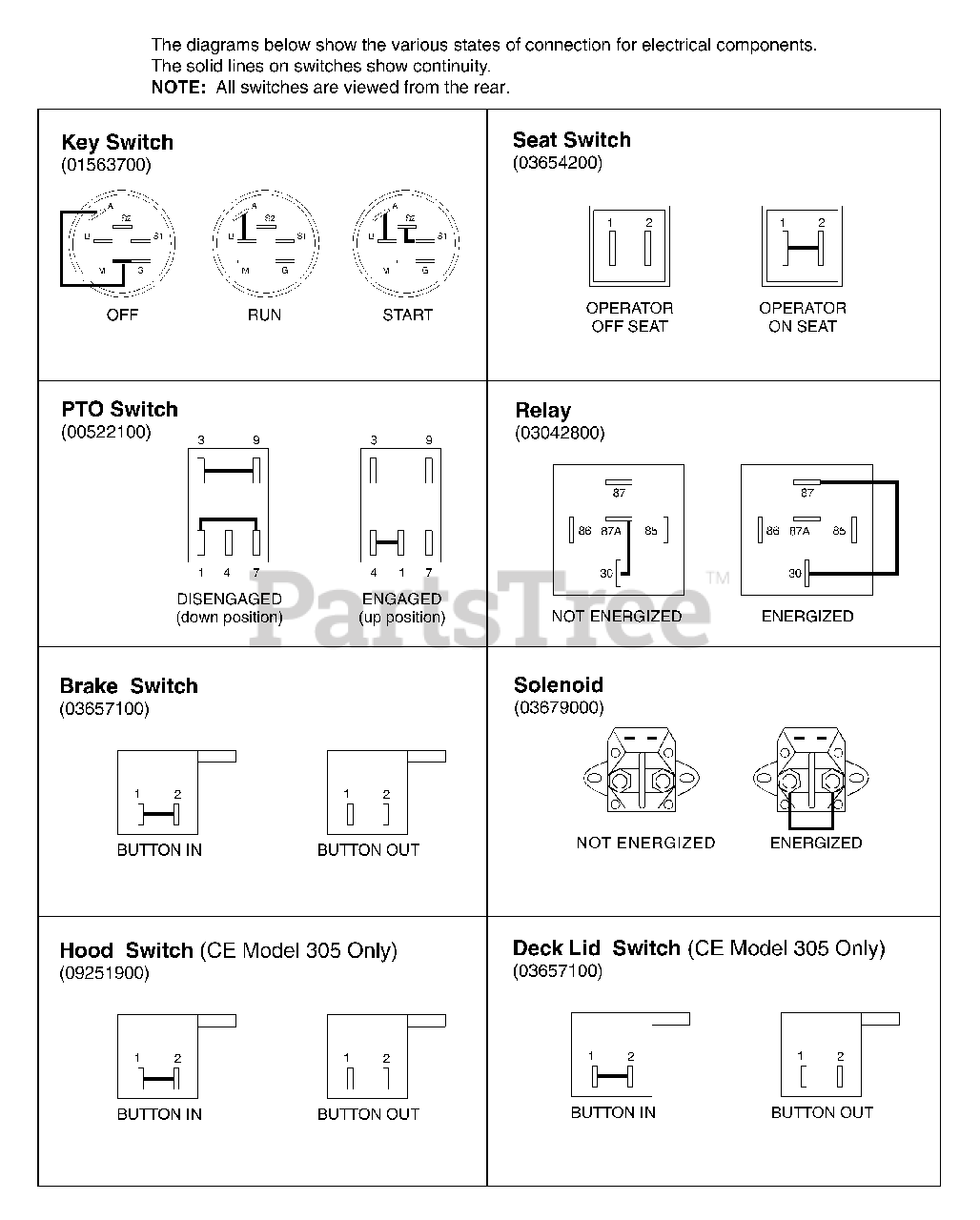

Continuity Diagram Parts Diagram

  • Title
01563700

Ariens 01563700

SWITCH KEY 5Y463A ALT GRDNG

$34.99

$

In Stock, only 1 left!

0

03654200

Ariens 03654200

SWITCH- SEAT

$

$

Not available

00522100

Ariens 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

03042800

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

03657100

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

Usually ships in 4-12 days

0

03679000

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

09251900

Ariens 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (CE Model 305 Only)

$22.99

$

Usually ships in 4-12 days

0

03657100

Ariens 03657100

SWITCH- SINGLE POLE N.O.

Note: (CE Model 305 Only)

$9.49

$

Usually ships in 4-12 days

0
