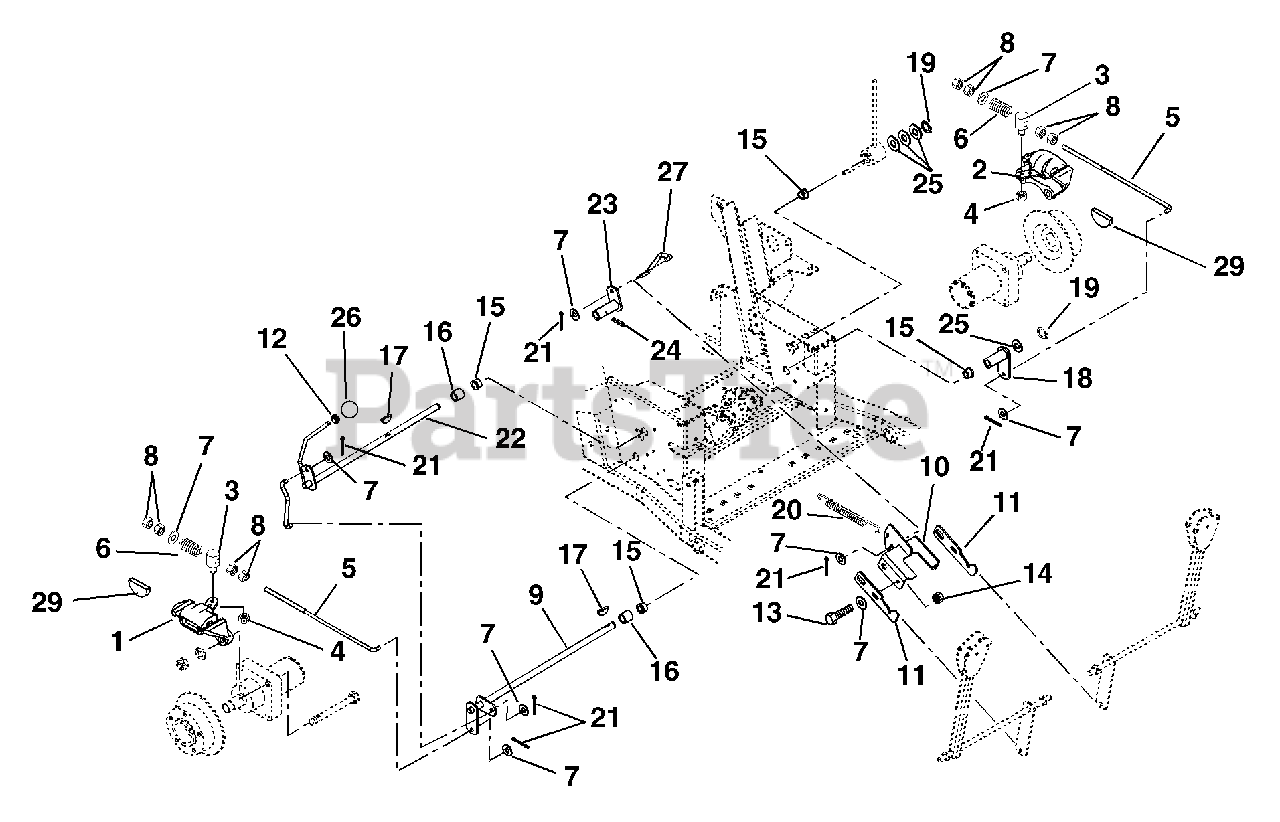

992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Brakes Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

Brakes Parts Diagram

  • Title
1

Ariens 09243600

CALIPER PARK BRAKE (CW) RH 2"

Note: (CW) Right Hand

$193.99

$

Usually ships in 4-12 days

0

2

Ariens 09243500

CALIPER,PARK BRAKE (CCW) LH 2"

Note: (CCW) Left Hand

$193.99

$

Usually ships in 4-12 days

0

3

Ariens 09267300

PIN, PIVOT/TRUNNION

$6.99

$

In Stock, only 1 left!

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 09248000

ROD - BRAKE 12 INCH

$

$

Not available

6

Ariens 08328500

SG-COMP .142 X .710 X 2.00

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 09235200

SHAFT - BRAKE CROSS

$22.99

$

Usually ships in 4-12 days

0

10

Ariens 09236900

INTERLOCK - FIXED

$

$

Not available

11

Ariens 09237400

INTERLOCK - ADJUSTABLE

$

$

Not available

12

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05517400

BSHG-FLG .630X1.000X.625 NY

$

$

Not available

16

Ariens 09304700

SPACER .630X.878X1.000

$

$

Not available

17

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

18

Ariens 09235300

ARM - BRAKE LH

$

$

Not available

19

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 1 left!

0

21

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

22

Ariens 09237200

SHAFT - BRAKE ACTUATING

$

$

Not available

23

Ariens 09237000

ACTUATOR

$

$

Not available

24

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

26

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

27

Ariens 09237100

ROD - BRAKE ACTUATING

$

$

Not available

28

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

29

Ariens 09200600

PAD SET, DISK BRAKE

$59.99

$

In Stock, only 2 left!

0
