992039 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 001000 - 001499) Controls Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

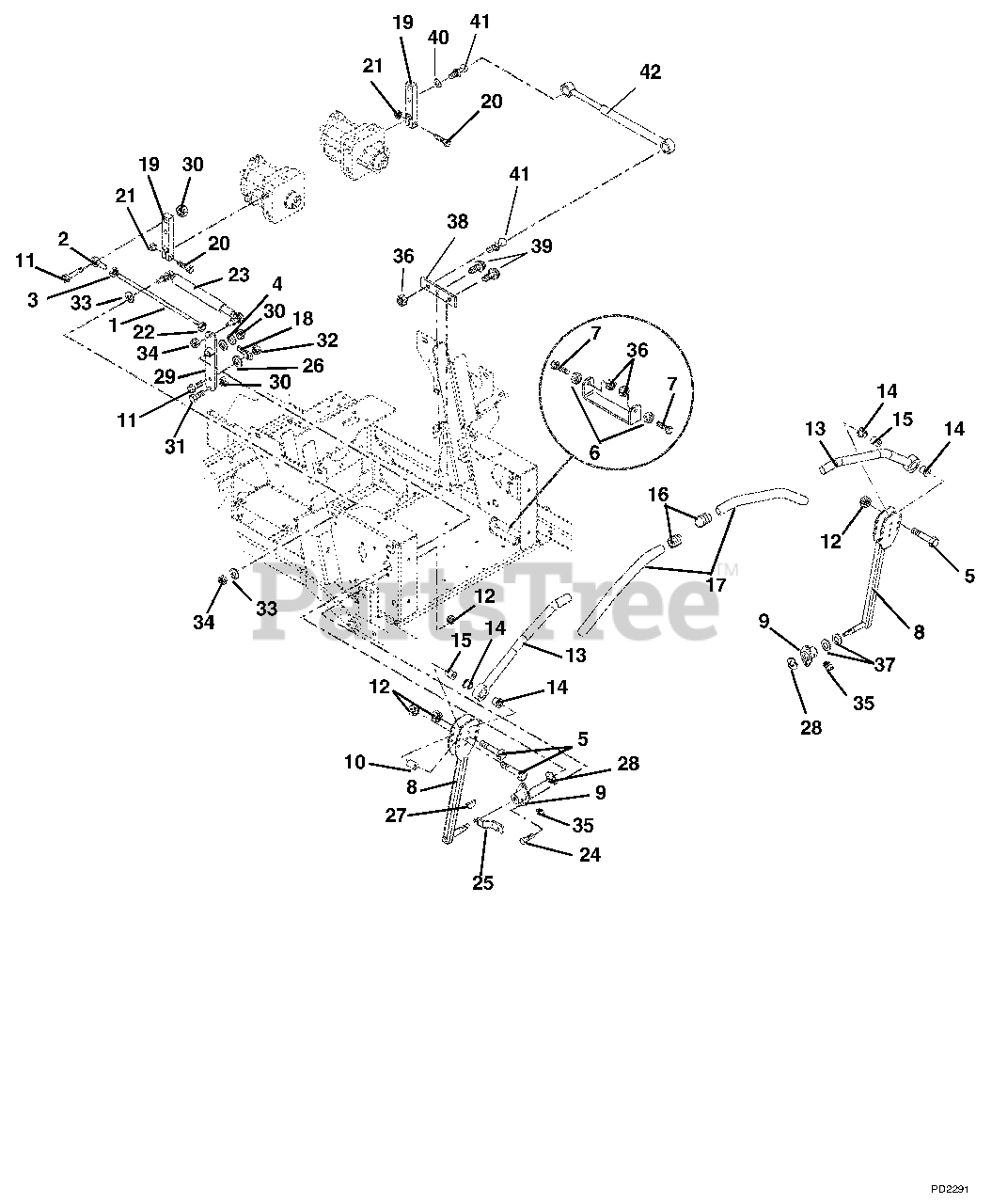

Controls Parts Diagram

  • Title
1

Gravely 03360901

Tie Rod Assembly

$

$

Not available

2

Gravely 044753

Rod End, .38 Right Hand
(Superseded to 03563100)

$15.99

$

In Stock, only 2 left!

0

3

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05921500

Bolt-Hex .31-18 x 1.50 Grade 2

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 09268851

Weldment, Control Arm

$272.99

$

Usually ships in 4-12 days

0

9

Gravely 05534100

Bushing-Flange .515 x .750 x .745 x 1.00

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09235500

Handle Weldment Left-Hand

$90.99

$

In Stock, only 1 left!

0

13

Gravely 09235600

Handle Weldment Right-Hand

$93.99

$

In Stock, only 1 left!

0

14

Gravely 035172

Bushing-Flange-Nylon .762 x 1.48 x .44
(Superseded to 05525200)

$3.49

$

In Stock, Qty 12

0

15

$

$

Not available

16

Gravely 09211400

Caplug- Handlebar

$2.99

$

In Stock, only 4 left!

0

17

Gravely 09246800

Grip-Handlebar

$12.99

$

Usually ships in 4-12 days

0

18

Gravely 03668700

Rod End, .38 Left Hand

$15.99

$

Usually ships in 4-12 days

0

19

Gravely 09264100

Arm, Pump Actuating

$

$

Not available

20

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

21

Gravely 06531000

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 06537400

Nut-Jam .375-24 Left Hand
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 09274600

Dampener, Self-Centering

$206.99

$

Usually ships in 4-12 days

0

24

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09267400

Footboard, Lock-Up

$

$

Not available

26

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06608400

Key-Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

28

Gravely 03704900

Wave Washer

$2.49

$

In Stock, only 4 left!

0

29

Gravely 09267500

Weldment, Pivot Arm

$

$

Not available

30

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06512200

Nut-Locking Top .375-16 Grade C

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

35

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

36

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06436100

Washer-Flat-Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 09280651

Bracket, Damper Mounting

$

$

Not available

39

Gravely 07414400

Screw-Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

40

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 03652200

Stud- Ball

$3.49

$

In Stock, only 3 left!

0

42

Gravely 09273400

Damper, Control

$71.99

$

In Stock, only 4 left!

0
