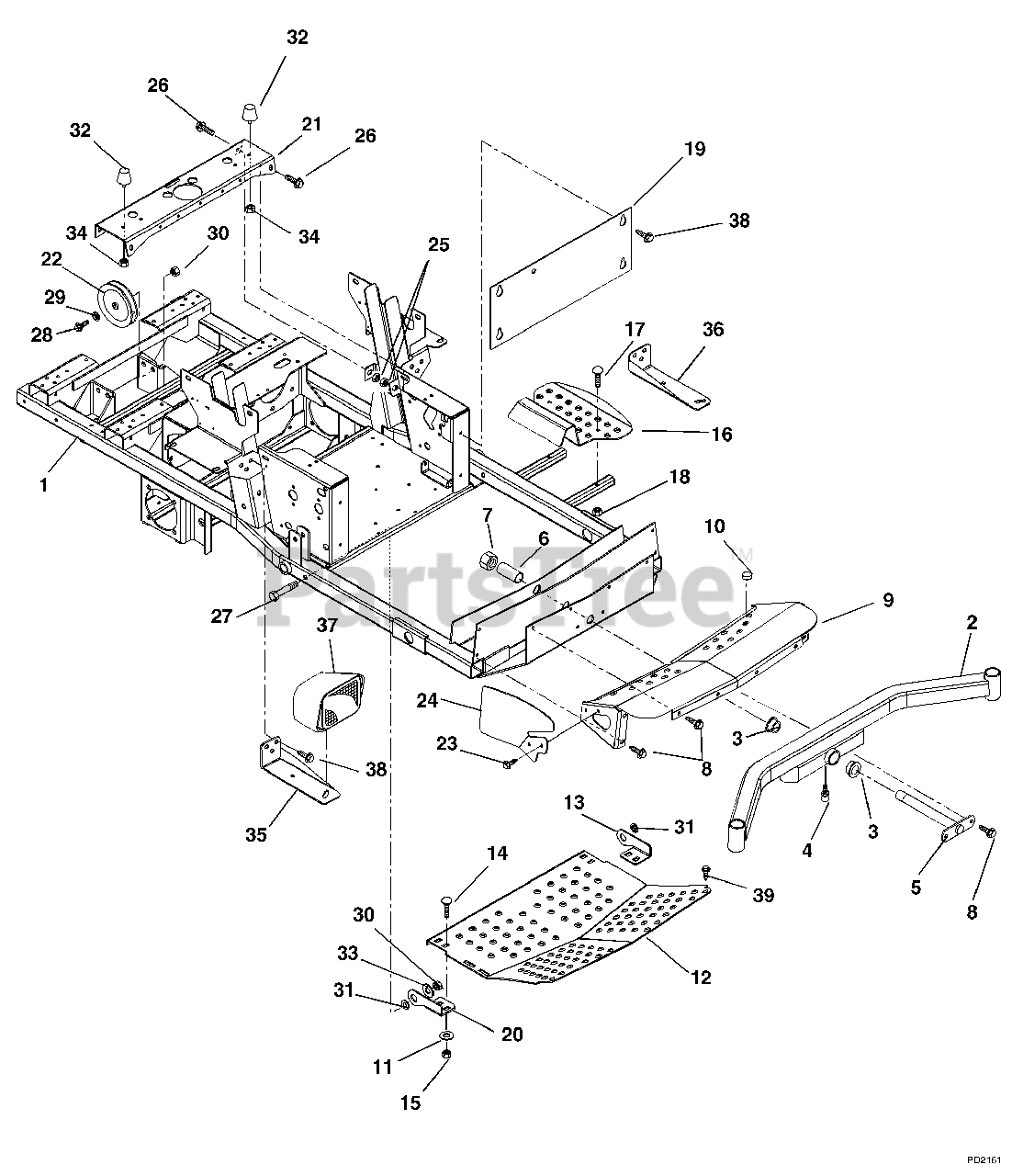

992039 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000999) Frame Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

Frame Parts Diagram

  • Title

1

Gravely 09267051

Weldment, Frame

$

$

Not available

2

Gravely 09278453

Weldment, Axle

$768.99

$

Usually ships in 4-12 days

0

3

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 12

0

4

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

5

Gravely 09232000

Pin-Axle

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

Spacer

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut-Locking-Nylon 1.0-14

$9.49

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw-Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09233453

Cover- Axle (Red)
(Superseded to 09278053)

Note: (Red)

$

$

Not available

10

Gravely 07516000

Button, Bumper

$0.99

$

In Stock, Qty 14

0

11

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09233353

Panel-Inspection

$112.99

$

Usually ships in 4-12 days

0

13

Gravely 09267151

Hinge, Footboard Left Hand

$

$

Not available

14

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 09231251

Step-Ingress

$

$

Not available

17

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

18

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09234053

Plate-Kick
(Superseded to 00483153)

$

$

Not available

20

Gravely 09267251

Hinge, Footboard Right Hand

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 09275051

Channel-Cross

$

$

Not available

22

Gravely 07327200

Pulley, Idler
(Superseded to 07328000)

$108.99

$

In Stock, only 1 left!

0

23

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 09276551

Guard, Foot

$25.99

$

Usually ships in 4-12 days

0

25

Gravely 07053300

Nut-Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

26

Gravely 07049900

Bolt-Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 05961000

Bolt-Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

29

Gravely 06436600

Washer-Flat-Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 05532100

Bushing-Flange .515 x .75 x .275 x 1.12

$

$

Not available

32

Gravely 07533000

Bumper

$14.99

$

Usually ships in 4-12 days

0

33

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 06534600

Nut-Locking-Flange .312-24

$

$

Not available

35

Gravely 09276251

Weldment, Light Mount-Right Hand

$

$

Not available

36

Gravely 09276351

Weldment, Light Mount-Left Hand

$11.99

$

Usually ships in 4-12 days

0

37

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

38

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 07414100

Screw-Tapping .38-16X1.00 Hex Washer Head (309)
(Superseded to 07417500)

Note: (309)

$3.99

$

In Stock, only 2 left!

0
