992039 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000999) 72" Deck And Spindles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

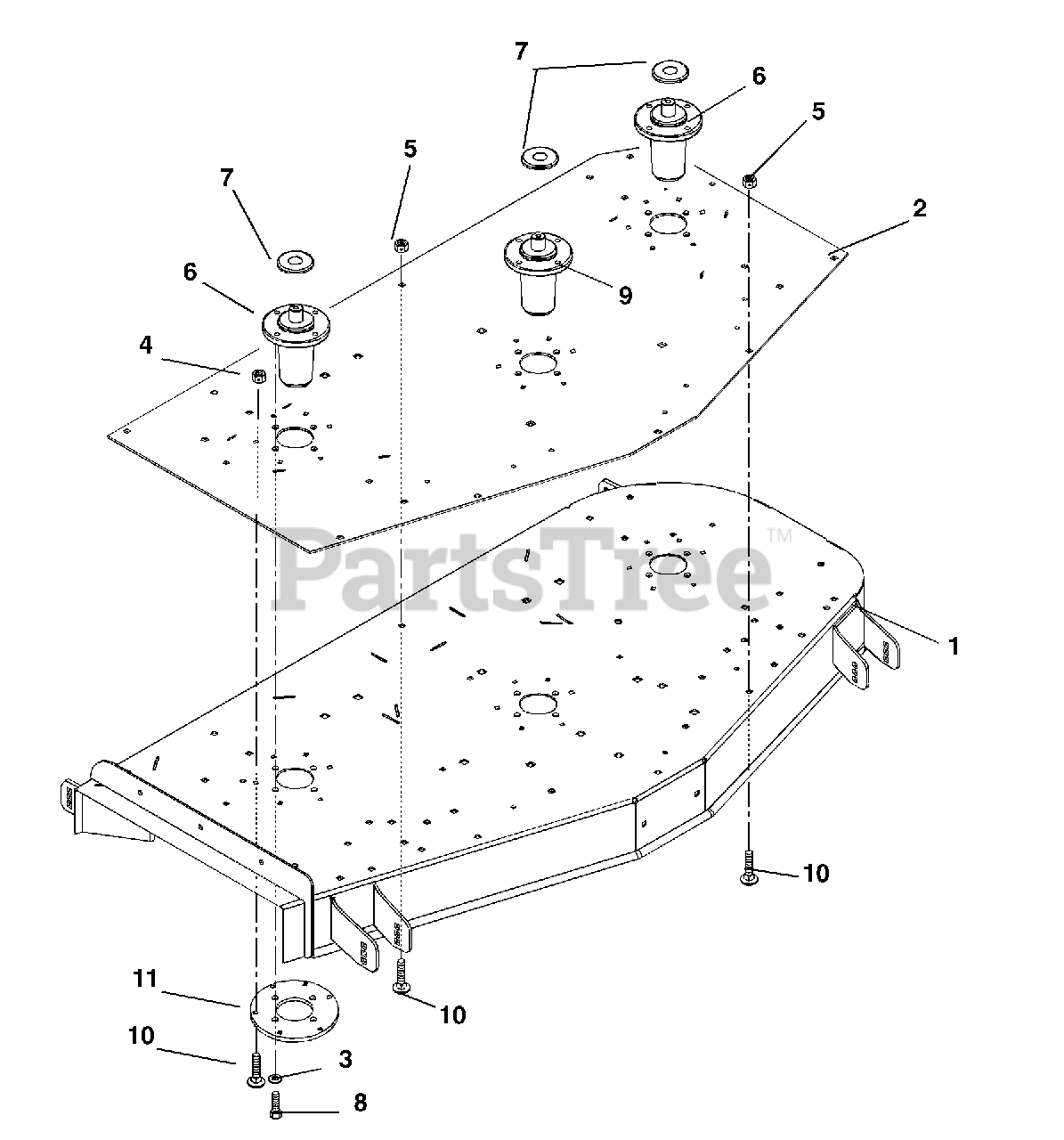

72" Deck And Spindles Parts Diagram

  • Title
1

Gravely 09256853

Weldment, 72" Deck (Side Discharge)

Note: (Side Discharge)

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 09097553

Plate, 72" Reinforcment

$

$

Not available

3

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 7)

$262.99

$

Usually ships in 4-12 days

0

7

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

8

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Contains Item 7)

$239.99

$

In Stock, Qty 20+

0

10

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

11

Gravely 09096151

Plate, Spindle Reinforcement

$111.99

$

In Stock, only 1 left!

0
