992038 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 001500 & Above) 60" Deck And Spindles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

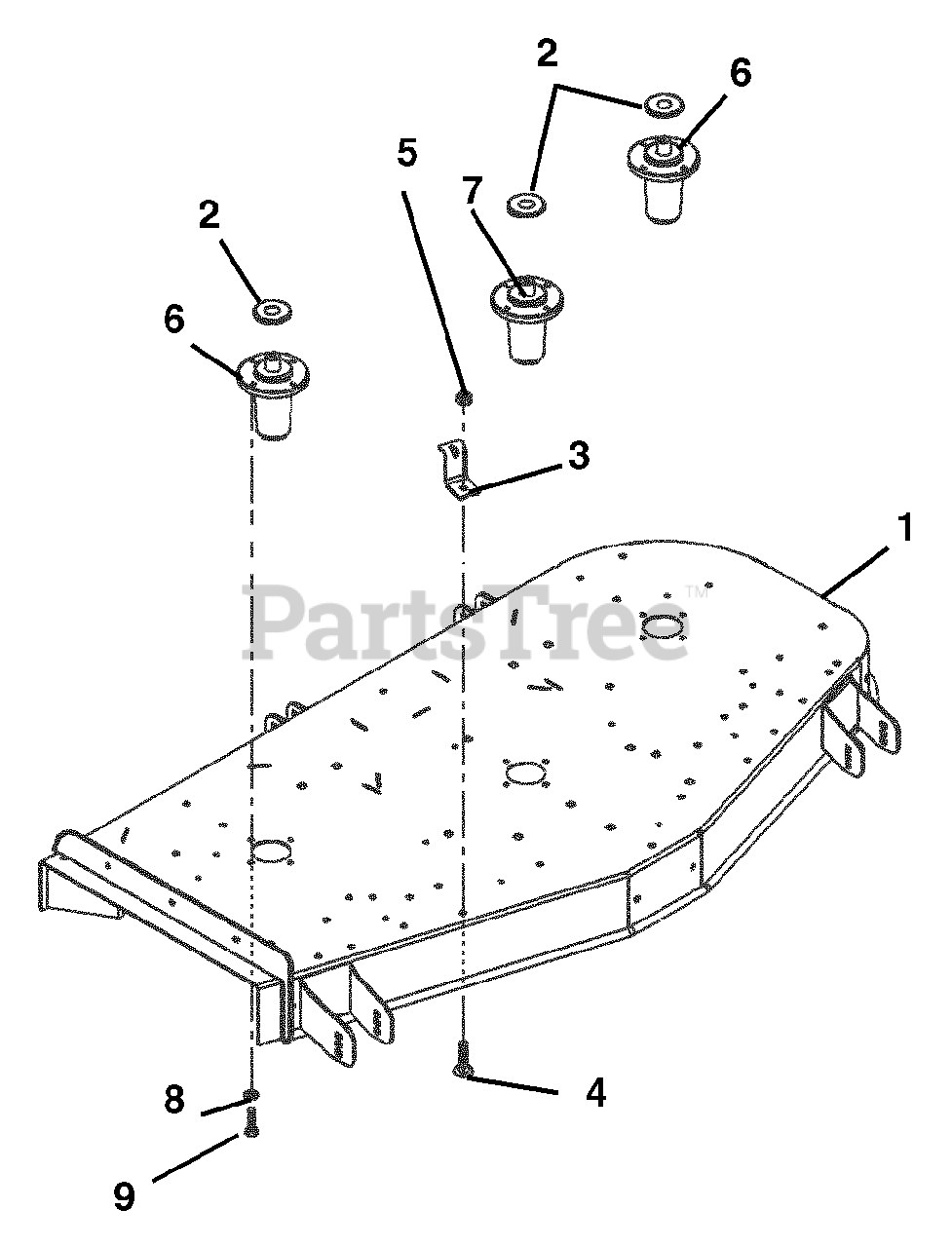

60" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09288253

Weldment, 60" Deck (Side Discharge)
(Superseded to 59228200)

Note: (Side Discharge)

$1758.99

$

Usually ships in 4-12 days

0

2

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

3

Gravely 09245353

Anchor, Spring

$

$

Not available

4

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 2)

$262.99

$

Usually ships in 4-12 days

0

7

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Contains Item 2)

$239.99

$

In Stock, Qty 20+

0

8

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
