992037 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 001000 - 001499) Deck And Spindles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

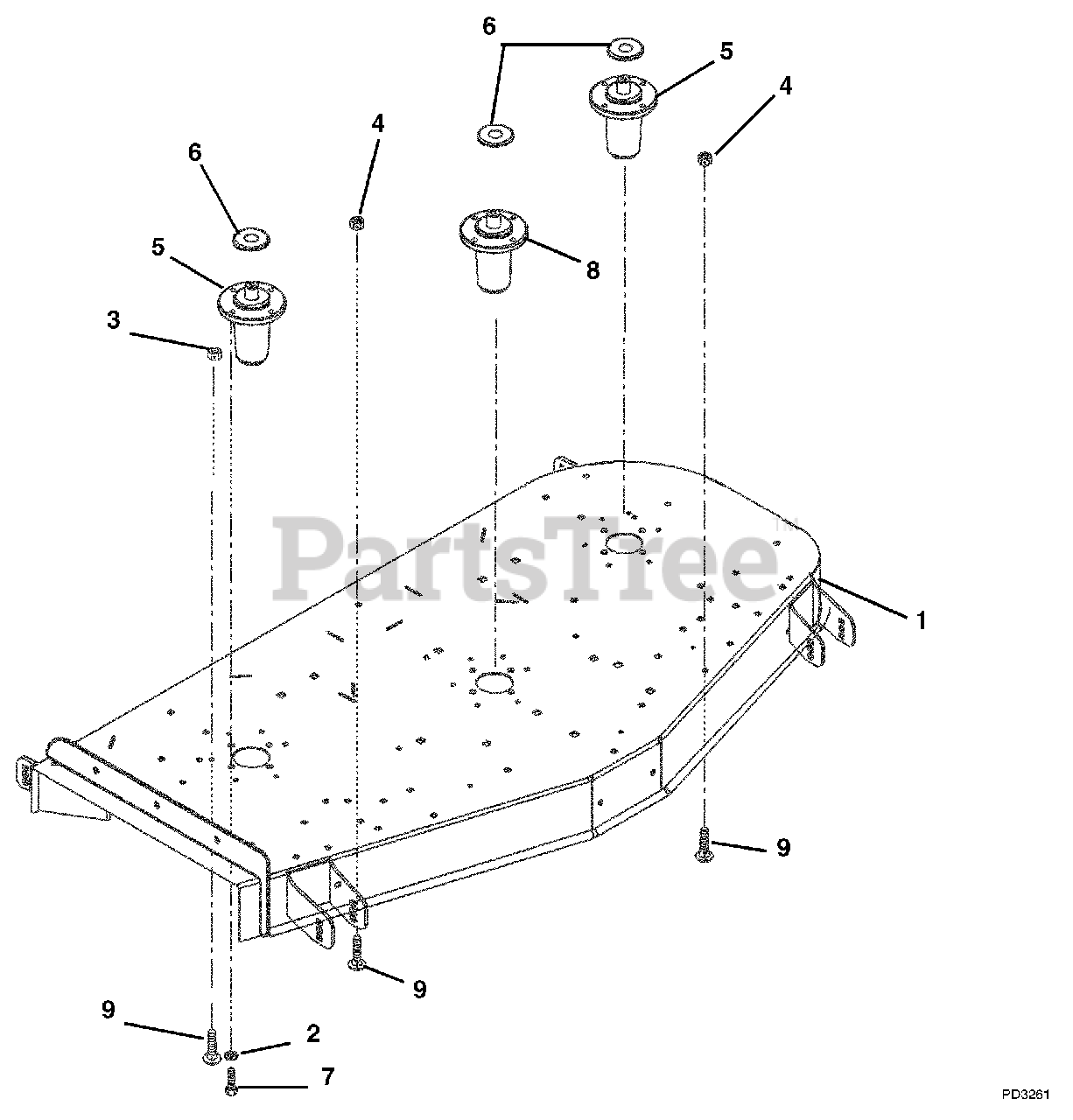

Deck And Spindles Parts Diagram

  • Title
1

Gravely 09292953

Weldment, 72" Deck (Side Discharge)
(Superseded to 59004300)

Note: (Side Discharge)

$

$

Not available

2

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Item 6)

$262.99

$

In Stock, only 4 left!

0

6

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

7

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Contains Item 6)

$239.99

$

In Stock, Qty 20+

0

9

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0
