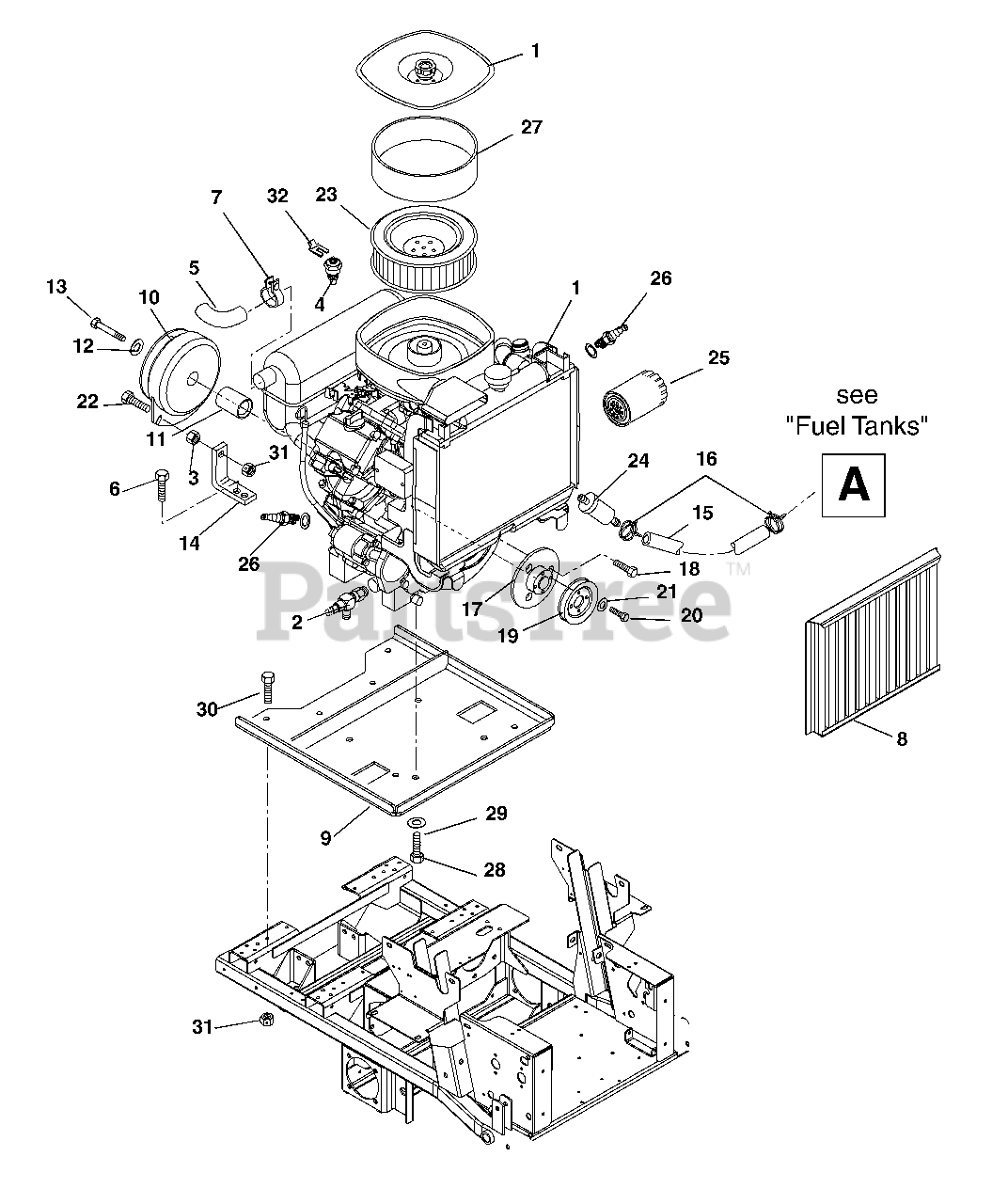

992037 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000999) Engine - Gas Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

Engine - Gas Parts Diagram

  • Title

1

Gravely 08267200

Engine, 27HP Gas Kawasaki

$

$

Not available

2

Gravely 07067400

Drain, Oil

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

4

Gravely 09058800

Temperature Sender

$106.99

$

Usually ships in 4-12 days

0

5

Gravely 09268500

Elbow

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01551500

Clamp, Muffler Assembly

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 09268700

Screen (Gas)

Note: (Gas)

$

$

Not available

9

Gravely 09264951

Weldment, Engine Plate (Gas)

Note: (Gas)

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 09266700

Clutch, Electric
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

11

Gravely 09263800

Spacer, Clutch

$

$

Not available

12

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 05968300

Bolt-Hex M10 x 1.5 x 60 8.8

$

$

Not available

14

Gravely 09264651

Anchor-Clutch

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 021134

Gas Line-Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Clamp-Hose Wire .490/.510X.116

$3.99

$

In Stock, Qty 10

0

17

Gravely 09264400

Adapter, Sheave (Kawasaki)

Note: (Kawasaki)

$

$

Not available

18

Gravely 05978700

Bolt, M8-1.25 x 25

$

$

Not available

19

Gravely 07327300

Sheave 3.50

$

$

Not available

20

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

23

Gravely 21538600

Air Filter

$74.99

$

Usually ships in 4-12 days

0

24

Gravely 21527800

Fuel Filter

$28.99

$

Usually ships in 4-12 days

0

25

Gravely 21380000

Oil Filter
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21538500

Spark Plug

$3.99

$

In Stock, Qty 20+

0

27

Gravely 21538700

Element, Precleaner

$

$

Not available

28

Gravely 05967600

Bolt-Hex M10 x 1.5 x 20 Grade 5

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 06309300

Washer-Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

30

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 03005000

Male Disconnect Adapter

$

$

Not available
