992035 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 23hp Kawasaki (SN: 035000 & Above) Decals (Part 2) Parts Diagram

Pro-Master 50" Zero-Turn Mower, 23hp Kawasaki

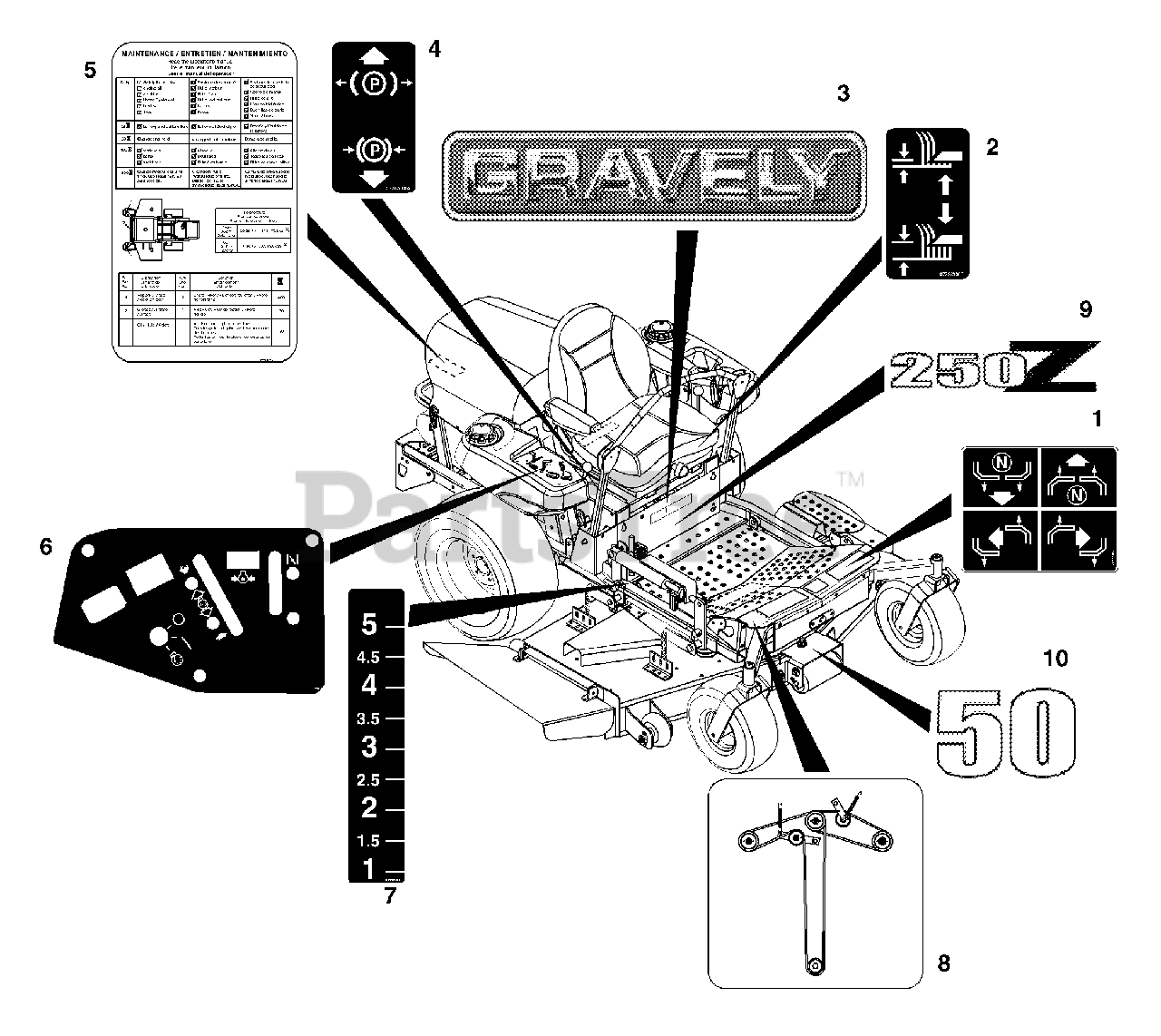

Decals (Part 2) Parts Diagram

  • Title

1

Gravely 07757600

Decal-Instructional Steering

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 07735300

Decal, Lift Lever

$

$

Not available

3

Gravely 05225500

Decal, 15" Gravely Logo
(Superseded to 07800338)

$11.99

$

In Stock, Qty 16

0

4

Gravely 07757500

Decal, Parking Brake Lever

$1.49

$

In Stock, Qty 11

0

5

Gravely 07735500

Decal, Service Instructions
(Superseded to 07700005)

$

$

Not available

6

Gravely 07735100

Decal, Control Panel

$

$

Not available

6

Gravely 05234000

Decal, Control Panel-EFI

$

$

Not available

7

Gravely 05354700

Decal, Height of Cut

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 07734600

Decal, Belt Diagram (020, 029, 033, 034, 035)

Note: (020, 029, 033, 034, 035)

$

$

Not available

8

Gravely 05227100

Decal, Belt Diagram (030, 032)

Note: (030, 032)

$

$

Not available

9

Gravely 05355200

Decal, Logo- Gravely 250Z (030, 032)

Note: (030, 032)

$

$

Not available

9

Gravely 05233600

Decal, PM-260Z (020, 029, 033)

Note: (020, 029, 033)

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 05233500

Decal, PM-272Z (034, 035)

Note: (034, 035)

$

$

Not available

10

Gravely 05231900

Decal, 50 (030, 032)

Note: (030, 032)

$

$

Not available

10

Gravely 05232000

Decal, 60 (020, 029, 033)

Note: (020, 029, 033)

$

$

Not available

10

Gravely 05232100

Decal, 72 (034, 035)

Note: (034, 035)

$

$

Not available
