992034 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 19hp Kawasaki (SN: 035000 & Above) Lift Valve And Cylinder Parts Diagram

Pro-Master 50" Zero-Turn Mower, 19hp Kawasaki

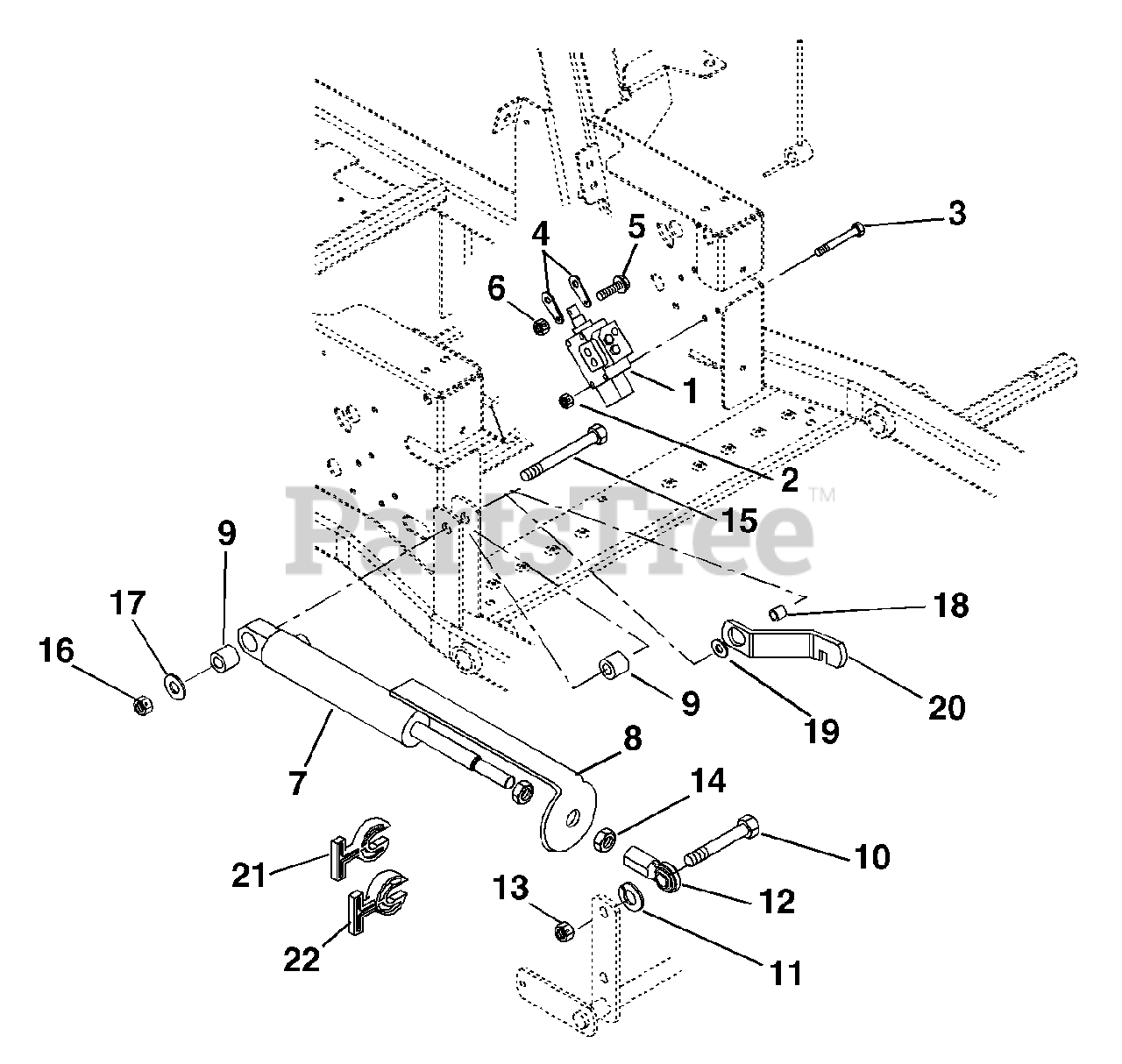

Lift Valve And Cylinder Parts Diagram

  • Title
1

Gravely 09231300

Valve, Hydraulic Lift

$517.99

$

Usually ships in 4-12 days

0

2

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 05969900

Bolt-Hex .25-20 x 2.75 Grade 5

$

$

Not available

$

$

Not available

5

Gravely 06118500

Screw-Machine 10-24 x 1.00 Hex Washer Head
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09245100

Cylinder-Hydraulic Lift
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

8

Gravely 09255900

Strap-Height of Cut Indicator

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

Bushing .516 x 1.000 x 1.050

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09221600

Rod End-Right Hand-Female 5/8

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06539600

Nut-Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 3 left!

0

18

Gravely 05532100

Bushing-Flange .515 x .75 x .275 x 1.12

$

$

Not available

19

Gravely 03515000

Wave-Washer .76 x 1.12 x .08

$

$

Not available

20

$

$

Not available

21

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, only 2 left!

0

22

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0
