992033 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) 60" Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 26hp Kohler EFI

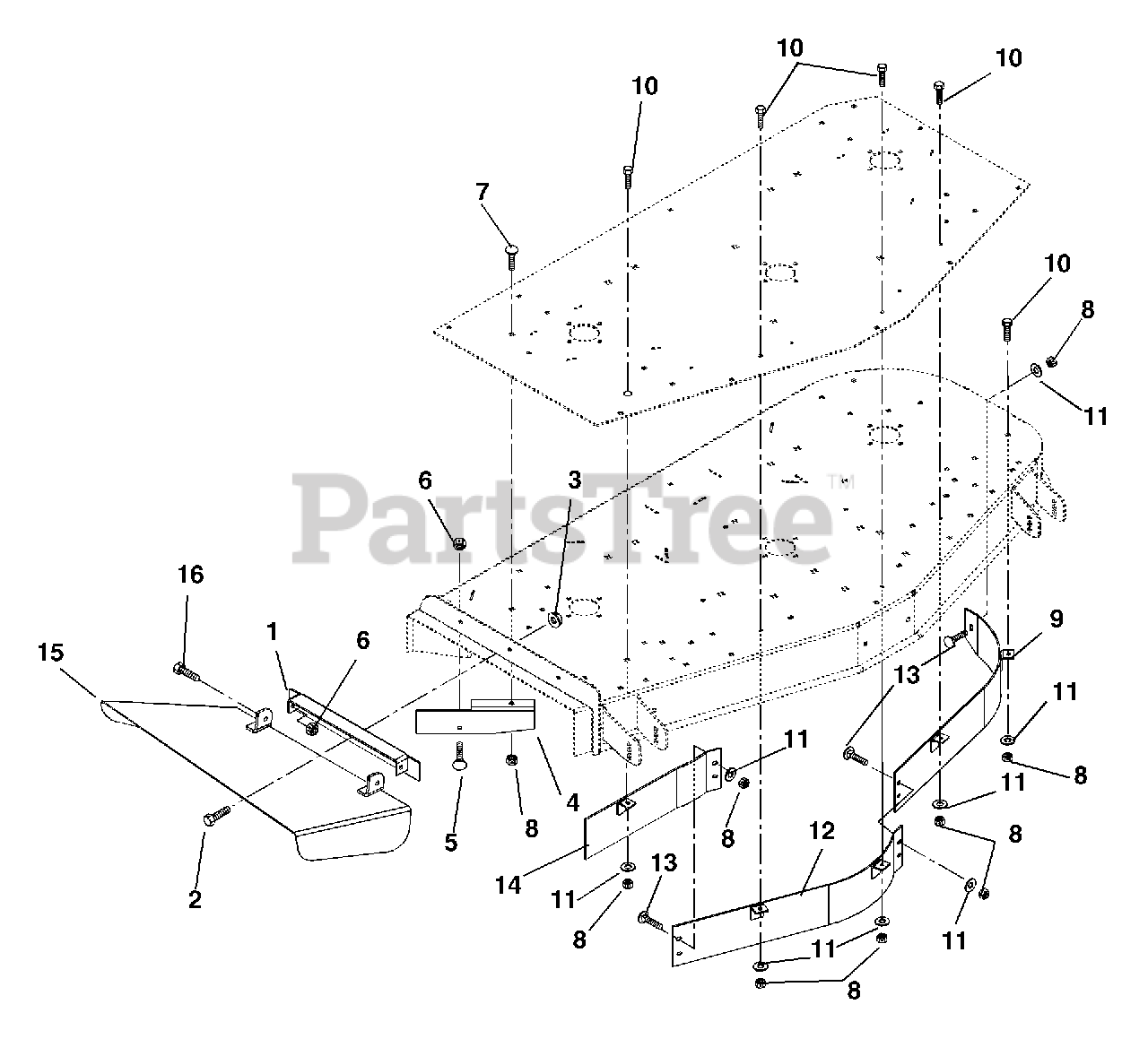

60" Discharge Chute And Baffles Parts Diagram

  • Title
1

Gravely 09238353

Weldment, Discharge Chute Bracket
(Superseded to 00253253)

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06534900

Nut-Locking-Flange .38-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09238451

Deflector, 60

$

$

Not available

5

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 09241651

Weldment, 60" Left Hand Baffle-Upper

$110.99

$

In Stock, only 1 left!

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 09241751

Weldment, 60" Center Baffle-Up

$100.99

$

In Stock, only 2 left!

0

13

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 09241851

Weldment, 60" Right Hand Baffle-Upper

$56.99

$

Usually ships in 4-12 days

0

15

Gravely 09250653

Weldment, Discharge Chute 60"
(Superseded to 00198253)

$228.99

$

In Stock, only 1 left!

0

16

Gravely 07056500

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

17

Gravely 79200300

60" Discharge Cover

$

$

Not available

18

Gravely 79200400

60" Mulch Kit

$

$

Not available
