992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Mounting Brackets Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

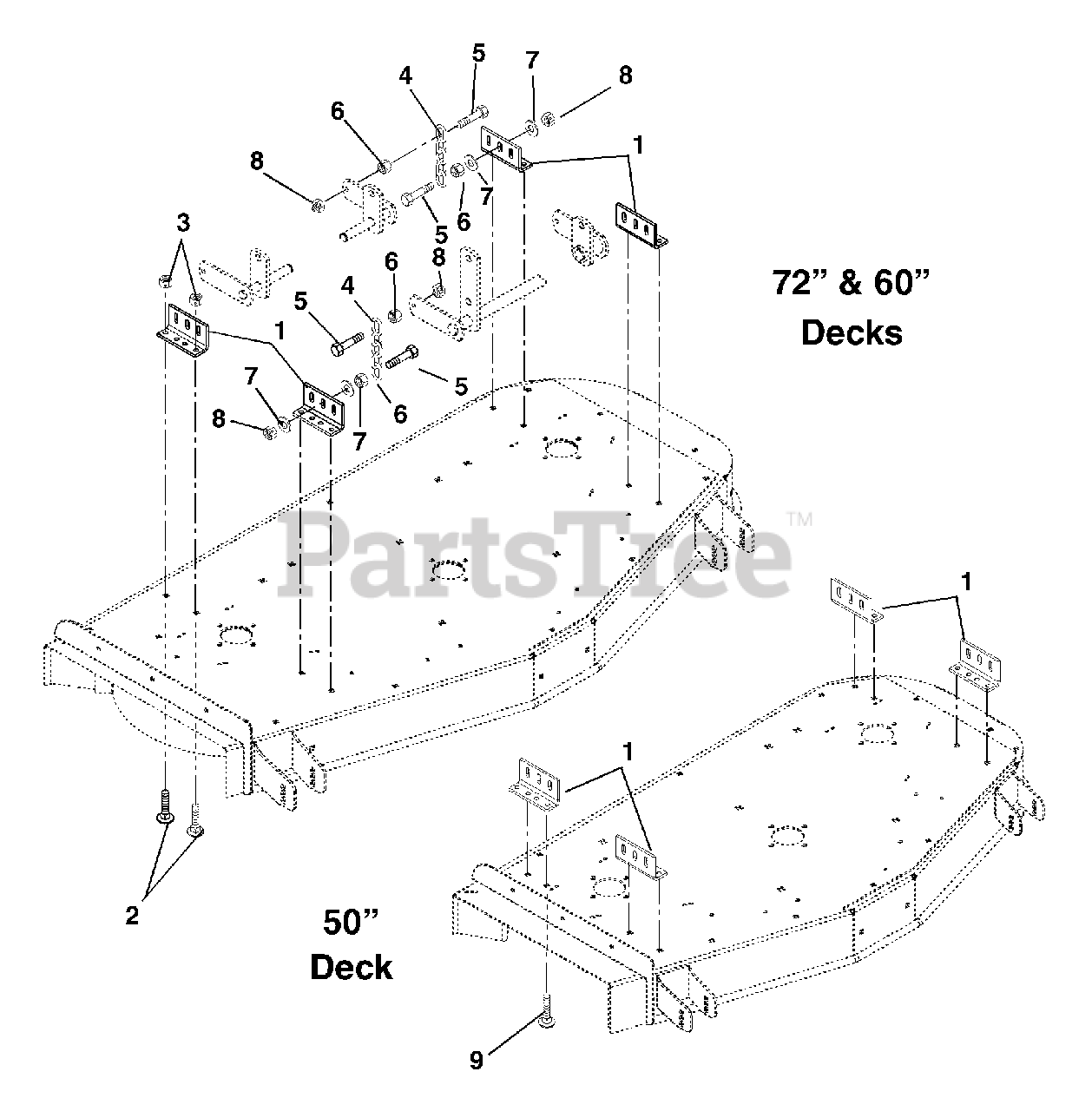

Mounting Brackets Parts Diagram

  • Title

1

Gravely 09242900

Bracket, Mower Mounting
(Superseded to 09242953)

$

$

Not available

2

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2 (60" Deck)
(Superseded to 06224100)

Note: (60" Deck)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2 (50" Deck)
(Superseded to 06224100)

Note: (50" Deck)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 09215300

Chain, Link

$

$

Not available

5

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

6

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06215300

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 2 (50" Deck)
(Superseded to 06224200)

Note: (50" Deck)

$3.99

$

In Stock, only 2 left!

0
