992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 031000 - 034999) Engine - EFI And Clutch Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

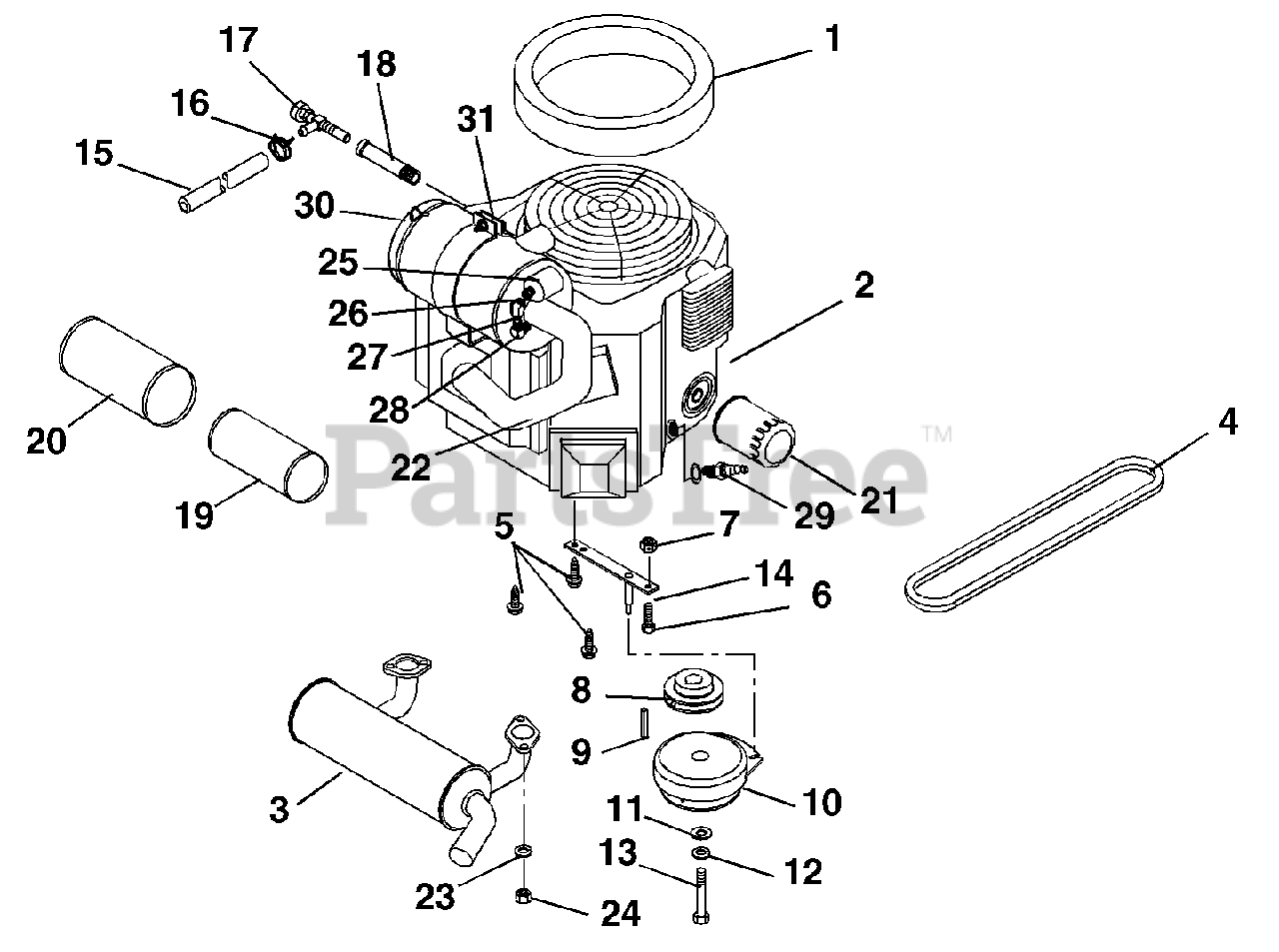

Engine - EFI And Clutch Parts Diagram

  • Title

1

Gravely 09231400

Seal-Foam

$58.99

$

Usually ships in 4-12 days

0

2

Gravely 08265000

Engine, Kohler EFI26

$

$

Not available

3

Gravely 09257300

Muffler, Kohler EFI

$641.99

$

Usually ships in 4-12 days

0

4

Gravely 07239200

V-Belt, A-Section 28.29 x .531

$43.99

$

In Stock, only 1 left!

0

5

Gravely 07414100

Screw-Tapping Hex-Washer-Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07321700

Pulley-V 4.00 x 1.125 with Key

$107.99

$

Usually ships in 4-12 days

0

9

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

10

Gravely 09266700

Electric Clutch
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

11

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 4 left!

0

12

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 04907200

Anchor-Clutch

$68.99

$

In Stock, only 1 left!

0

15

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 15

0

17

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

20

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, only 2 left!

0

21

Gravely 21397200

Oil Filter
(Superseded to 20715100)

$18.99

$

In Stock, only 4 left!

0

22

Gravely 21536800

Hose, Air Intake

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 06308600

Washer-Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06538600

Nut-Hex M8-1.25

$

$

Not available

25

Gravely 09258800

Filter Minder

$

$

Not available

26

Gravely 07065800

Nipple, .125" NPT

$

$

Not available

27

Gravely 07065700

Elbow, 45 Degree 1/8" NPT

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 07012300

Elbow,Adapter 90 Degree, Brass, .125 x .125

$

$

Not available

29

Gravely 21525900

Spark Plug
(Superseded to 21541700)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

31

Gravely 09257600

Bracket, Air Cleaner Mount

$87.99

$

Usually ships in 4-12 days

0
