992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 031000 - 034999) EFI Fuel Tanks And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

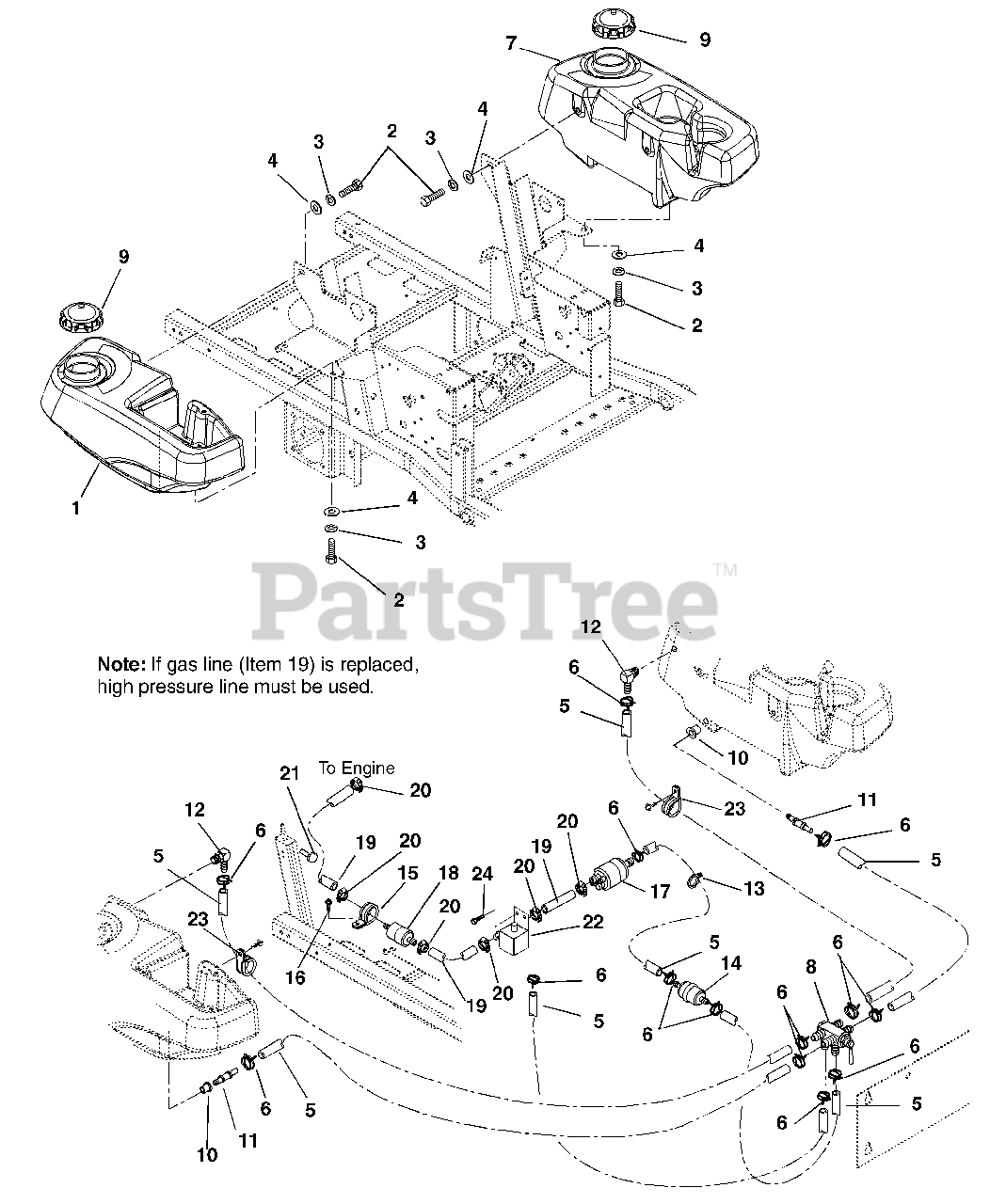

EFI Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09257100

Fuel Tank, Right Hand

$

$

Not available

2

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00922600

Hose, .31 ID

$

$

Not available

6

Gravely 06947900

Hose-Clamp

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 09257200

Fuel Tank Left-Hand

$

$

Not available

8

Gravely 09227000

Valve, Fuel
(Superseded to 09289600)

$

$

Not available

9

Gravely 09239500

Cap-Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

10

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

11

Gravely 21537300

Fitting, Tank with Screen

$

$

Not available

12

Gravely 21537200

Fitting, Tank

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 09258600

Tube Clip 1.50

$

$

Not available

14

Gravely 05050300

Filter, Fuel .31

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 06948000

Clamp, 2.18

$

$

Not available

16

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 21536600

Pump, EFI Fuel

$

$

Not available

18

Gravely 21536500

Filter, Fuel
(Superseded to 21542900)

$68.99

$

Usually ships in 4-12 days

0

19

Gravely 00936700

Gas Line .31 ID High Pressure

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 09236500

Tube Clip .75

$

$

Not available

22

Gravely 21536700

Regulator, EFI Fuel

$

$

Not available

23

Gravely 06941400

Clamp, .50 I.D.

$

$

Not available

24

Gravely 07411600

Screw-Tapping .25-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0
