992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 031000 - 034999) 72" Discharge Chute And Baffles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

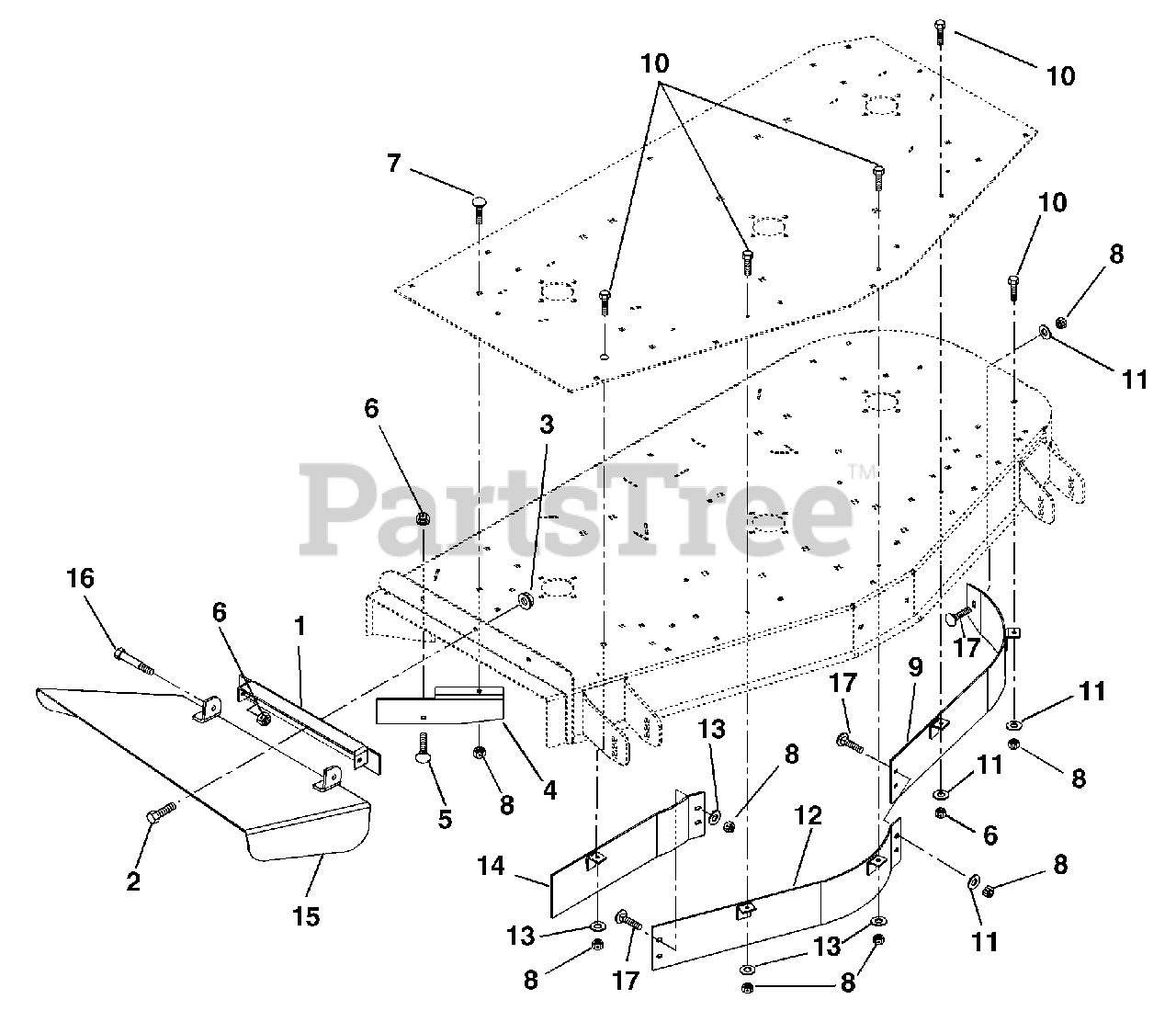

72" Discharge Chute And Baffles Parts Diagram

  • Title
1

Gravely 09238353

Weldment, Discharge Chute Bracket
(Superseded to 00253253)

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06534900

Nut-Locking-Flange .38-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09096051

Deflector, 72"

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 09096451

Weldment, 72" Left Hand Baffle

$93.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 09096351

Weldment, 72" Center Baffle

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09096551

Weldment, 72" Right Hand Baffle

$87.99

$

Usually ships in 4-12 days

0

15

Gravely 09096953

Weldment, Discharge Chute 72"

$262.99

$

In Stock, only 1 left!

0

16

Gravely 07056500

Bolt-Shoulder .38-16 x .38
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

17

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 79200900

72" S.D. Mulch Kit

$

$

Not available

19

Gravely 79201000

72" Discharge Cover Kit

$

$

Not available
