992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Wiring Diagram Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

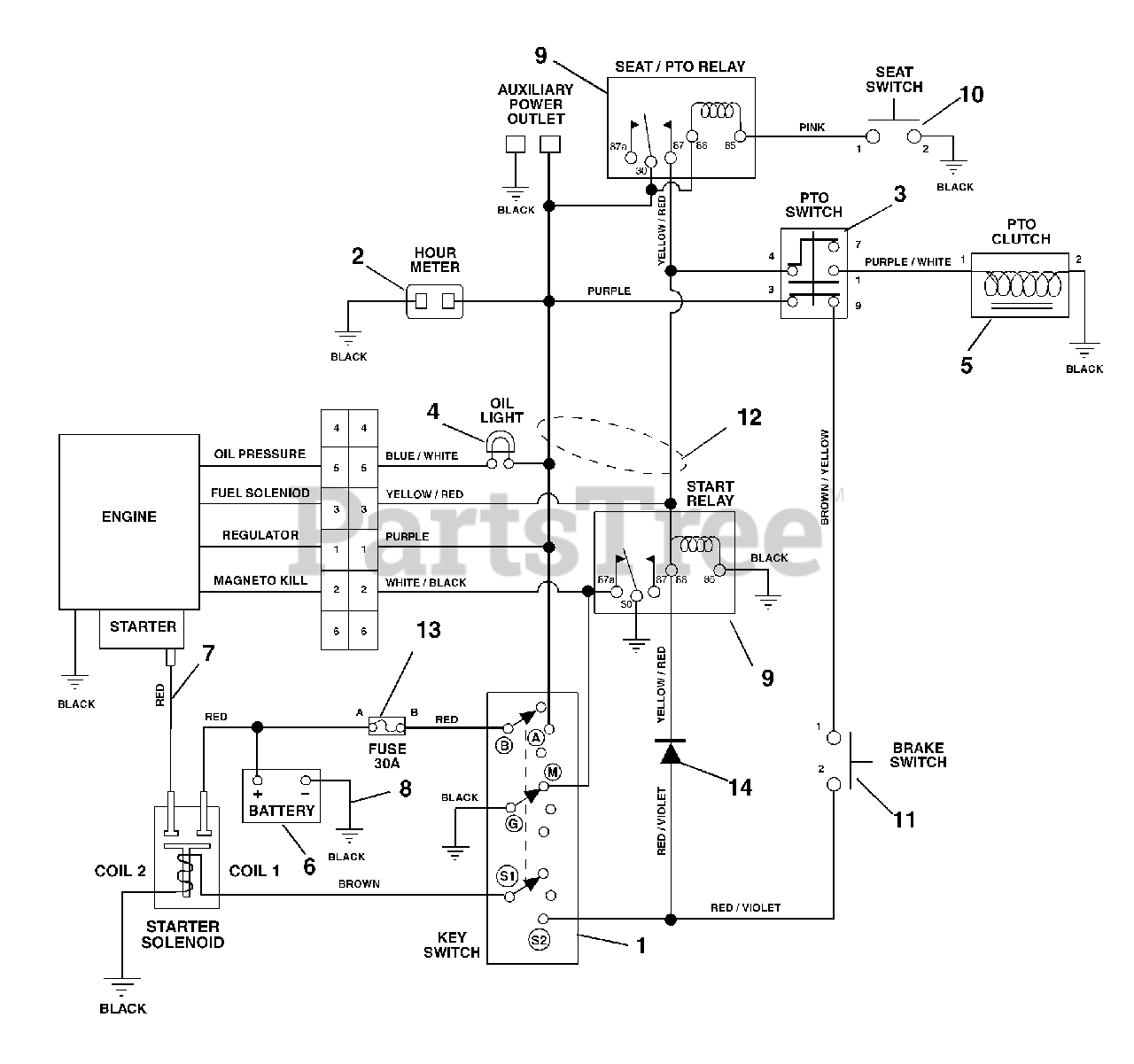

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

2

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

3

Gravely 00522100

Switch-Clutch With Retainer Ring
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

4

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

5

Gravely 09232700

Electric Clutch
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

6

Gravely 03621100

Battery with Tube

$

$

Not available

7

Gravely 049101

Cable-Battery To Solenoid
(Superseded to 08987000)

$51.99

$

In Stock, only 1 left!

0

8

Gravely 02518900

Ground Cable
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

9

Gravely 040216

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

10

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

11

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 1 left!

0

12

Gravely 09239600

Harness-Kohler

$387.99

$

Usually ships in 4-12 days

0

13

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

14

Gravely 03081700

Molded Diode Plug-Black 1-Amp

Note: (Included with Harness)

$26.99

$

In Stock, only 1 left!

0
