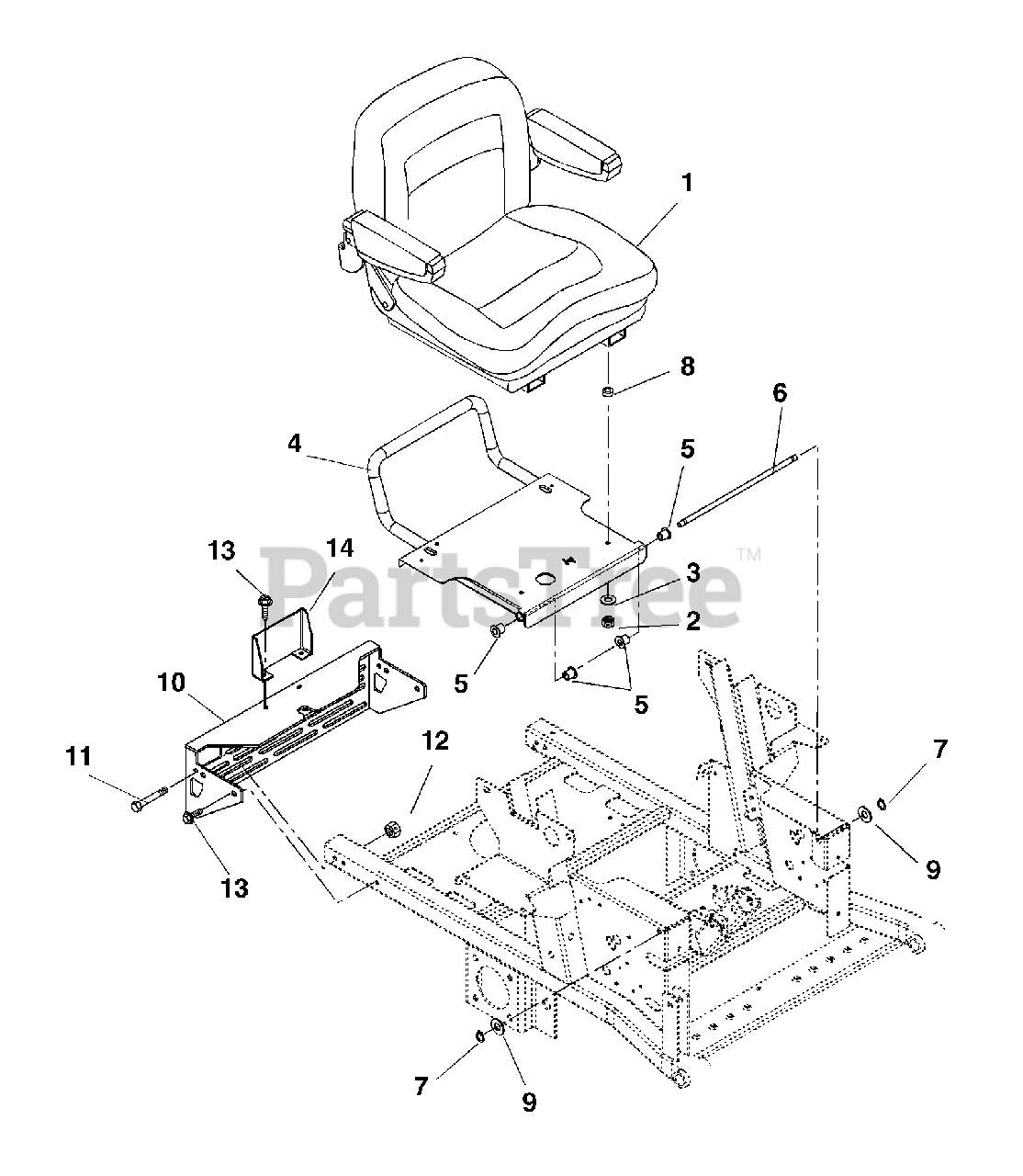

992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Seat, Frame And Bumper Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

Seat, Frame And Bumper Parts Diagram

  • Title

1

Gravely 09214500

Seat, MILSCO

$

$

Not available

2

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09210453

Weldment- Hood Frame
(Superseded to 09259851)

$

$

Not available

5

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 09245400

Rod-Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 05717100

Ring-Retaining-External .50 x .05

$2.49

$

In Stock, Qty 8

0

8

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

9

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 09258153

Bumper-Rear

$

$

Not available

11

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09229951

Guard, Engine

$64.99

$

Usually ships in 4-12 days

0
