992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Engine And Clutch Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

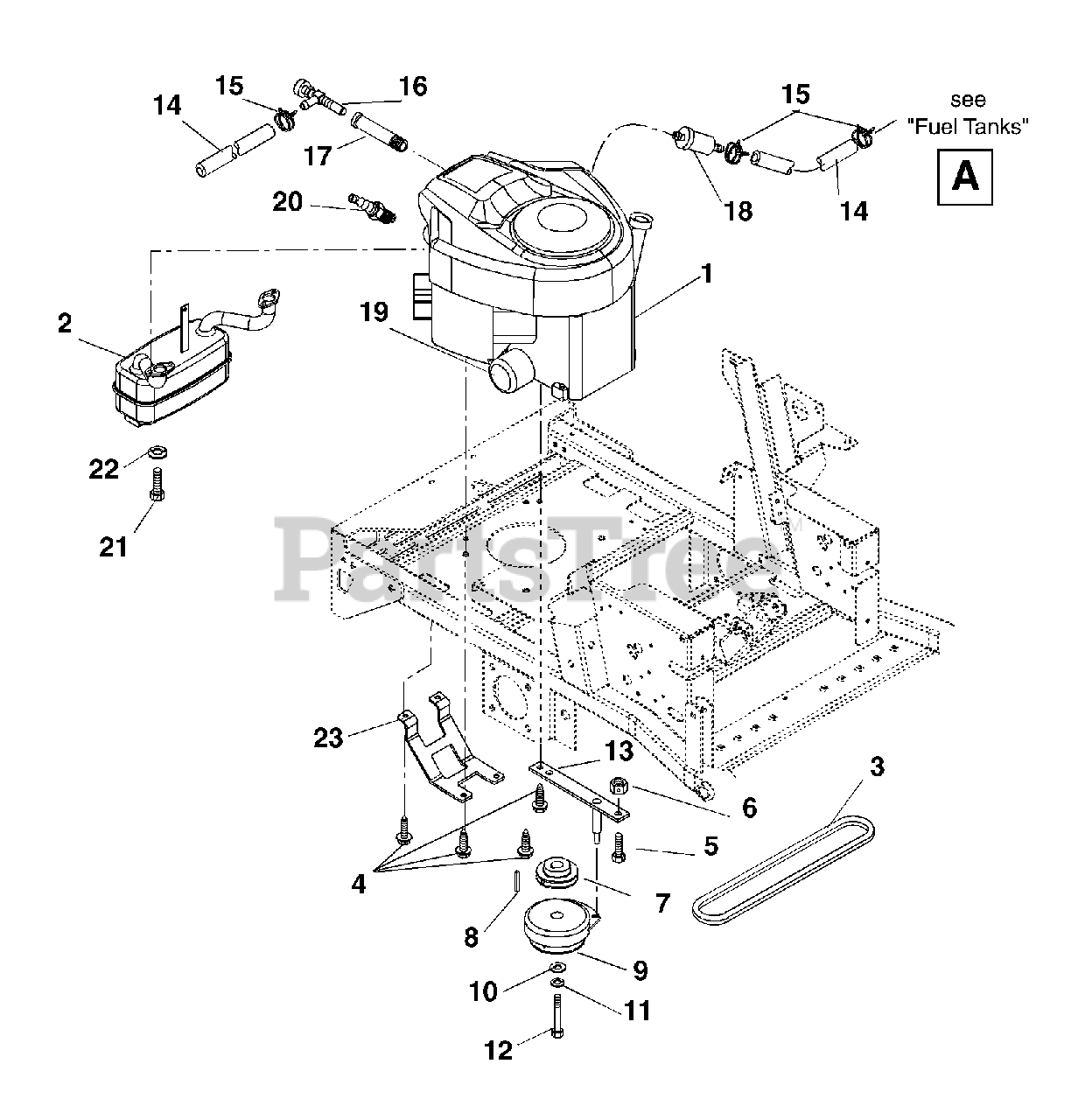

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08262500

Engine, 20 HP Briggs & Stratton Intek 6-Pin

$

$

Not available

2

Gravely 01557000

Muffler Assembly

$155.99

$

Usually ships in 4-12 days

0

3

Gravely 07239200

V-Belt, A-Section 28.29 x .531

$43.99

$

In Stock, only 1 left!

0

4

Gravely 07414700

Screw-Tapping Hex-Washer-Head .38-16 x 1.25
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

5

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09113600

Pulley-4.46 Dia. x 1.12 Bore

$116.99

$

Usually ships in 4-12 days

0

8

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

9

Gravely 03357900

Clutch, Electric

$491.99

$

In Stock, only 1 left!

0

10

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

11

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

13

Gravely 04907200

Anchor-Clutch

$68.99

$

In Stock, only 1 left!

0

14

Gravely 021134

Gas Line-Bulk .25" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 10

0

16

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 21531800

Fuel Filter
(Superseded to 00682500)

$13.99

$

Usually ships in 4-12 days

0

19

Gravely 21530700

Oil Filter

$12.99

$

In Stock, Qty 20+

0

20

Gravely 21534100

Plug, Spark

$3.49

$

In Stock, Qty 20+

0

21

Gravely 051666

Screw-Socket Head M8 x 1.25 x 20
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

09258453

Guard, Muffler

$

$

Not available
