992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) 50" Deck And Spindles Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

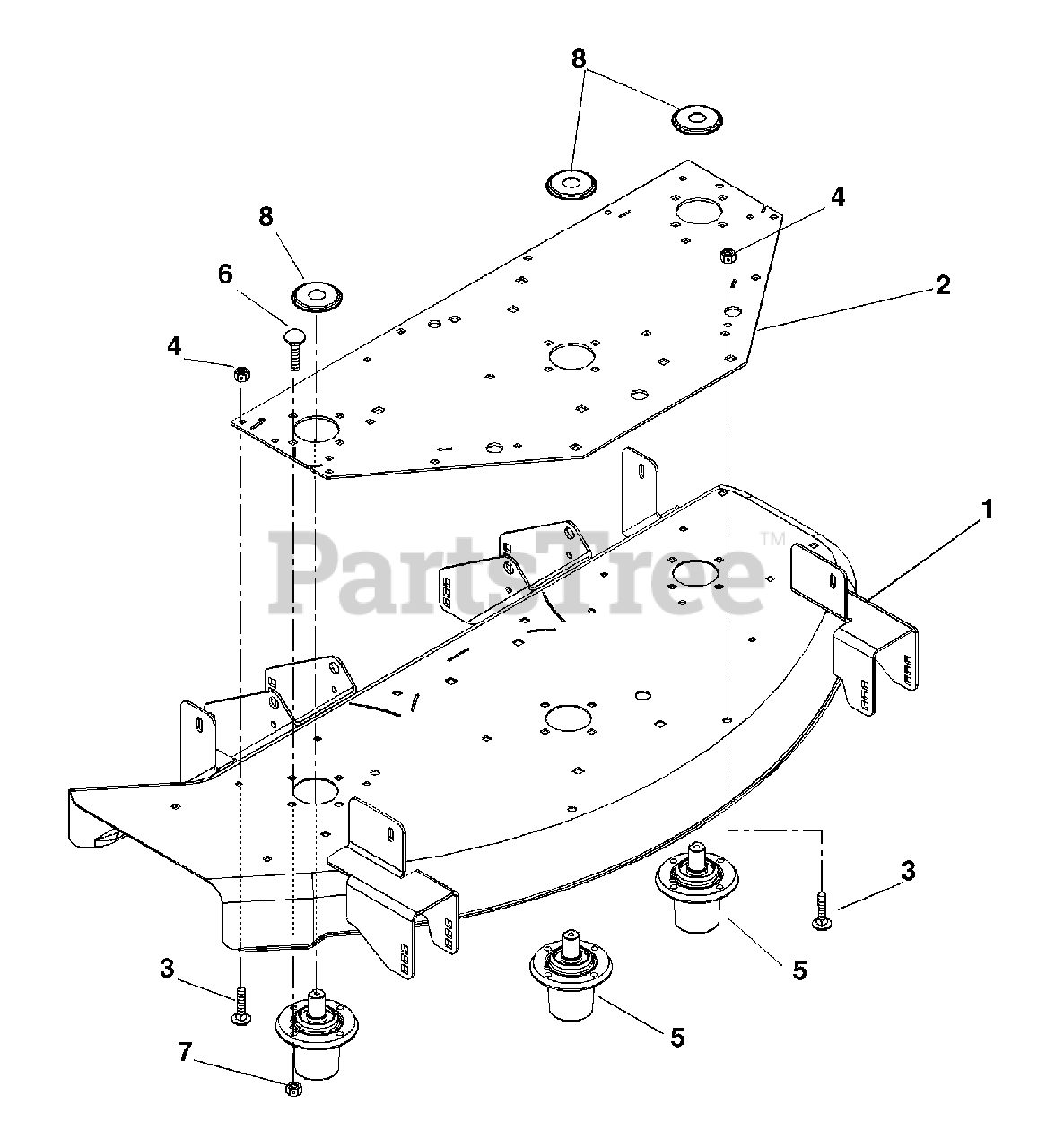

50" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09212653

Weldment, 50" Deck
(Superseded to 59224600)

Note: (Side Discharge)

$774.99

$

Usually ships in 4-12 days

0

2

Gravely 08850153

Plate,Support 50"

$220.99

$

Usually ships in 4-12 days

0

3

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 58803600

Assembly, Spindle

$262.99

$

In Stock, only 1 left!

0

6

Gravely 06224200

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0
