992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Transmission Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

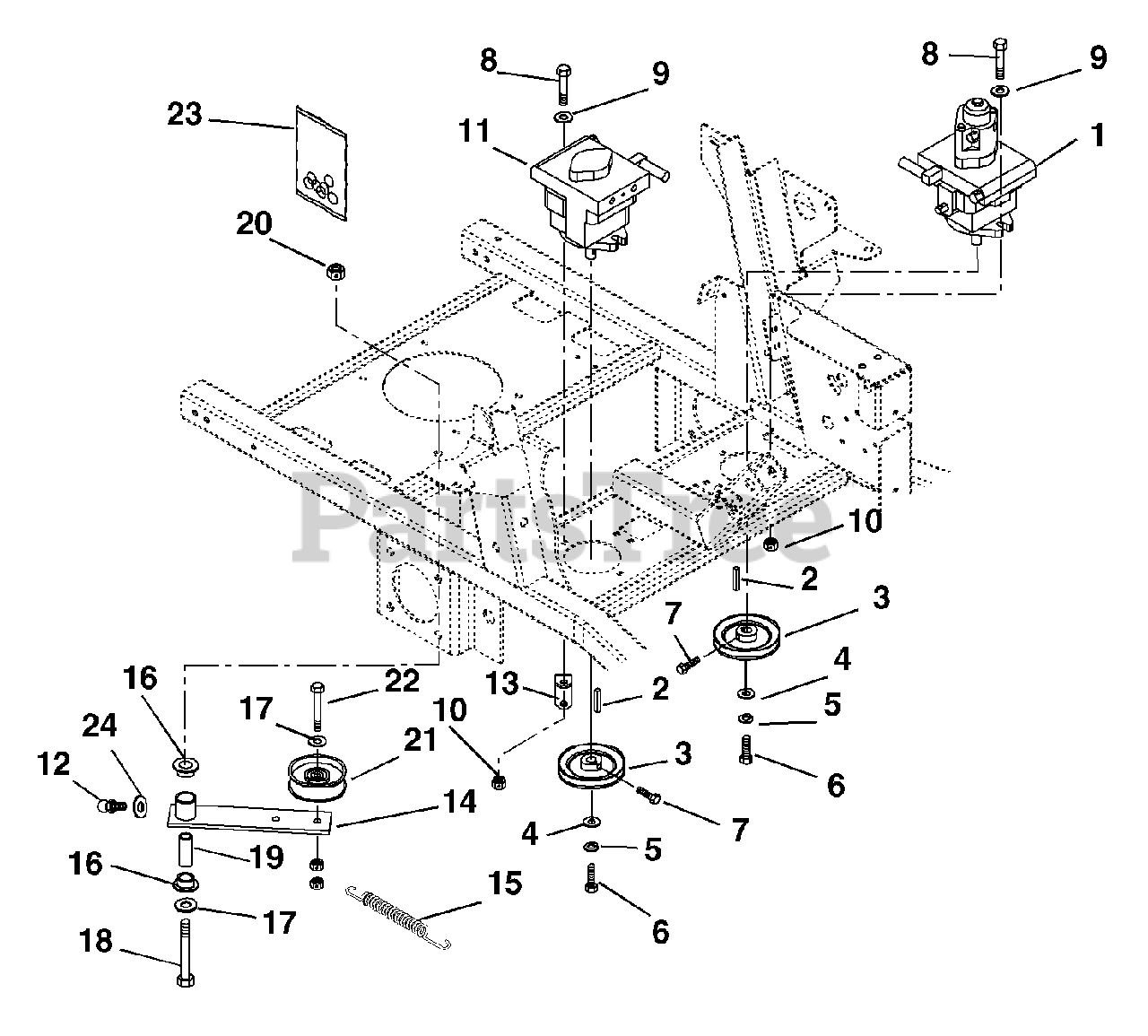

Transmission Parts Diagram

  • Title

1

Gravely 09235800

Hydrostat BDP with Auxiliary
(Superseded to 09279800)

$1939.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

Key-Straight 5mm x 25mm x 5mm
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

4

Gravely 06442200

Washer-Flat-Steel .25 x 1.0 x .048
(Superseded to 06426600)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05969800

Bolt-Hex M6 x 1.0 x 12

$1.99

$

In Stock, Qty 14

0

7

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06444300

Washer-Flat-Steel .390 x .75 x .125

$7.99

$

In Stock, Qty 8

0

10

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 053330

Variable-Displace Pump
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

12

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

13

Gravely 09231151

Anchor-Spring-Idler
(Superseded to 09231100)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 09249500

Arm-Ground Drive Idler
(Superseded to 09249551)

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 08334100

Spring-Tension .120 x .845 x 6.500
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

16

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 041992

Bushing-Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

20

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 053125

Assembly-Idler Pulley
(Superseded to 07320800)

$34.99

$

In Stock, Qty 13

0

22

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 58800300

Kit-Pump Seal

Note: (One kit required for each pump)

$45.99

$

Usually ships in 4-12 days

0

24

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0
