992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Steering Controls - Upper Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

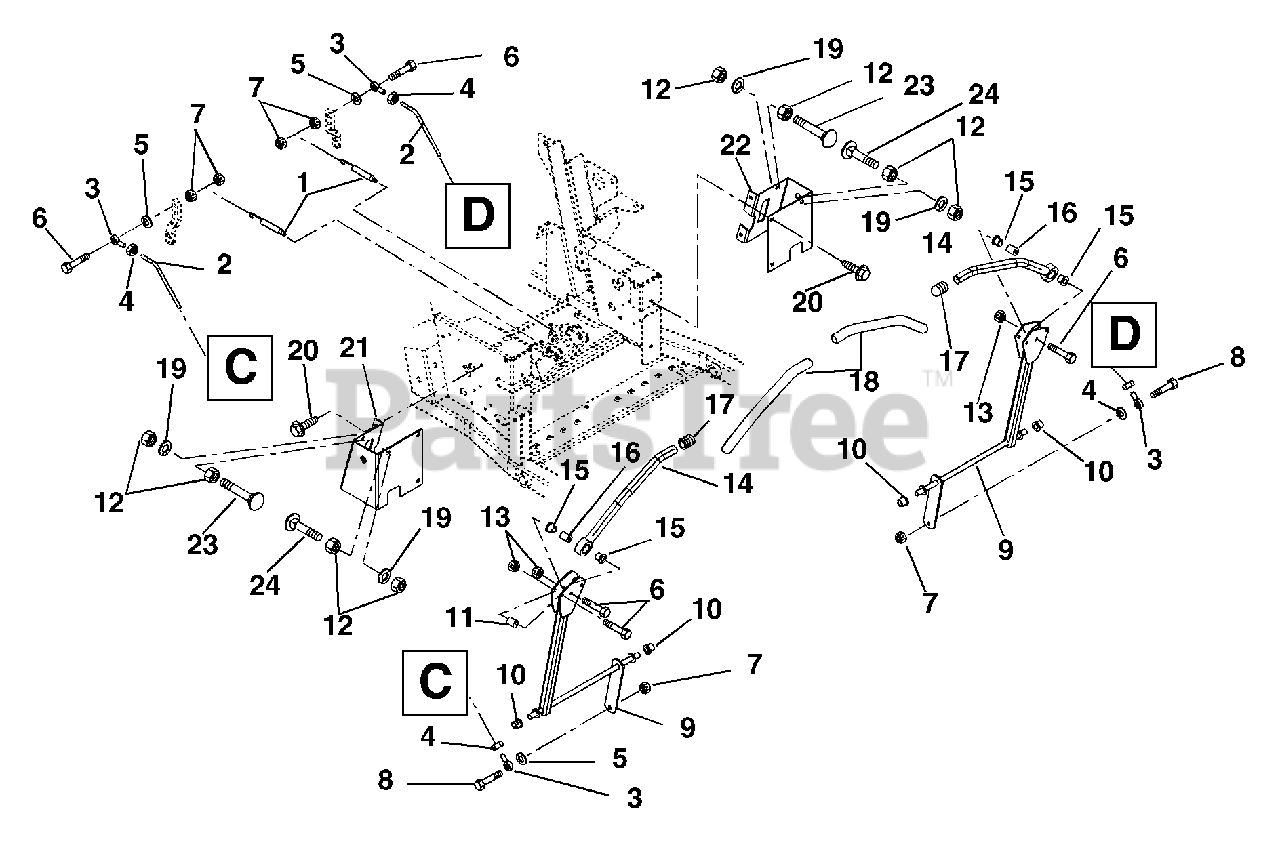

Steering Controls - Upper Parts Diagram

  • Title
1

Gravely 08316400

Spring-Tension .062 x .56 x 8.0
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

2

Gravely 09235900

Rod-Steering Adjustment

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 045002

Rod End .312 Right-Hand-Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

4

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

5

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

9

Gravely 09234900

Rod-Steering
(Superseded to 09278251)

$103.99

$

Usually ships in 4-12 days

0

10

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09235500

Handle Weldment Left-Hand

$90.99

$

In Stock, only 1 left!

0

15

Gravely 035172

Bushing-Flange-Nylon .762 x 1.48 x .44
(Superseded to 05525200)

$3.49

$

In Stock, Qty 12

0

16

$

$

Not available

17

Gravely 09211400

Caplug- Handlebar

$2.99

$

In Stock, only 4 left!

0

18

Gravely 09246800

Grip-Handlebar

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09246153

Mount-Steering Rod-Right Hand
(Superseded to 09224553)

$34.99

$

Usually ships in 4-12 days

0

22

Gravely 09246053

Mount-Steering Rod-Left Hand
(Superseded to 09224453)

$41.99

$

Usually ships in 4-12 days

0

23

Gravely 06220500

Bolt-Round Head Square Neck .38-16 x 2.00
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 06215300

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0
