992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Motors And Wheels Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

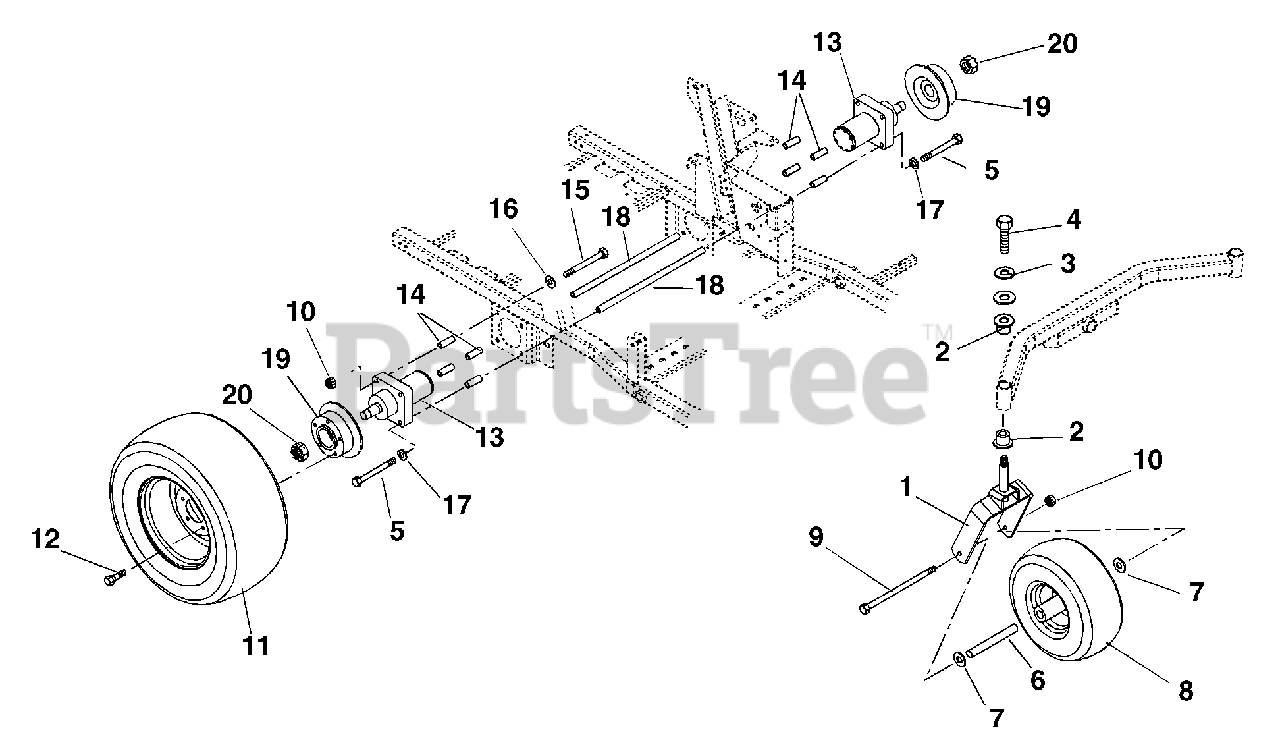

Motors And Wheels Parts Diagram

  • Title
1

Gravely 09214153

Fork-Front

$

$

Not available

2

Gravely 018355

Bushing, Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

3

Gravely 06443400

Washer-Flat-Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

4

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05958000

Bolt-Hex .38-16X1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09231800

Spacer-Wheel

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 4 left!

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

8

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Gravely 05961200

Bolt-Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 07150700

Wheel-Tire 23 x 8.50 Multi-Trac

$

$

Not available

11

Gravely 07150800

Tire 23 x 8.50-12 Multitrac C/S

$

$

Not available

12

Gravely 034597

Bolt-Lug .50-20 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Gravely 09232300

Hydraulic Wheel Motor

Note: (Includes 20)

$905.99

$

In Stock, only 1 left!

0

14

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.129

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 05975400

Bolt-Hex .50-13 x 5.00 Grade 8

$5.99

$

In Stock, only 2 left!

0

16

Gravely 050351

Spacer .500 x .750 x .321
(Superseded to 00211100)

$3.49

$

In Stock, Qty 5

0

17

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

18

Gravely 09236200

Rod-Motor Connecting

$94.99

$

In Stock, only 1 left!

0

19

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

20

Gravely 06541900

Nut -Lock Jam Patch

Note: (Included with 13)

$30.99

$

Usually ships in 4-12 days

0
