992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Electrical System Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

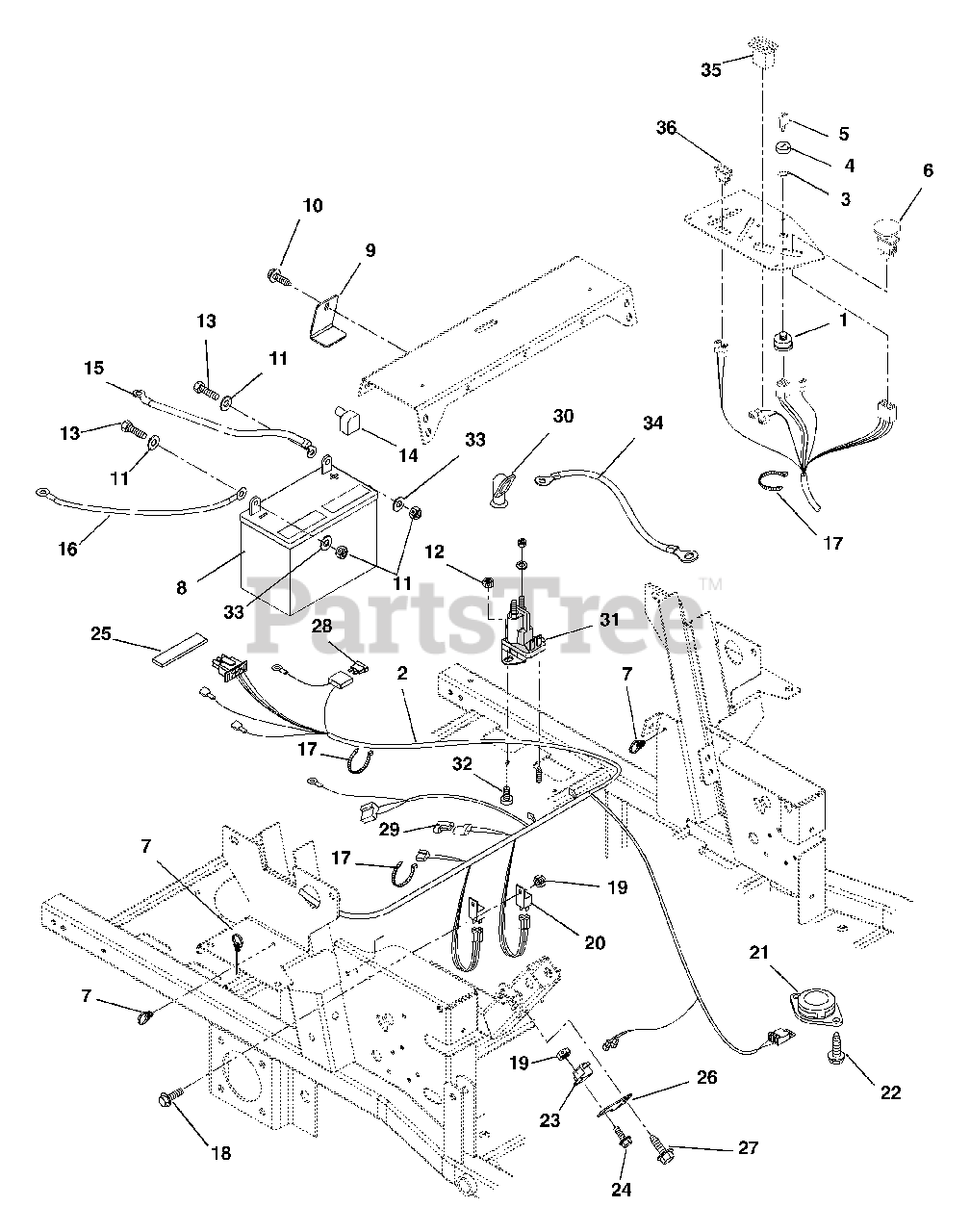

Electrical System Parts Diagram

  • Title

1

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 09217800

Harness, Z 6-Pin Wiring
(Superseded to 09286301)

$335.99

$

Usually ships in 4-12 days

0

3

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 02460700

Key-with Cap

$7.99

$

In Stock, Qty 20+

0

6

Gravely 01545600

Switch-Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

7

Gravely 09236500

Tube Clip .75

$

$

Not available

8

Gravely 03621100

Battery with Tube

$

$

Not available

9

Gravely 09236400

Clamp-Battery

$

$

Not available

10

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

13

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 02743300

Positive Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

16

Gravely 02518900

Ground Cable
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

17

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

18

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 040216

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

21

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

22

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

23

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 2 left!

0

24

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 050418

Pad-Battery
(Superseded to 08800600)

$

$

Not available

26

Gravely 09237553

Plate-Switch
(Superseded to 09237500)

$

$

Not available

27

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

29

Gravely 03081700

Molded Diode Plug-Black 1-Amp

Note: (Included with Harness)

$26.99

$

Usually ships in 4-12 days

0

30

Gravely 033847

Insulator, Boot
(Superseded to 03384700)

$

$

Not available

31

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

32

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 042696

Starter Cable 6.75"
(Superseded to 00145900)

$13.99

$

In Stock, only 1 left!

0

35

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: (Optional)

$23.99

$

In Stock, only 1 left!

0

36

Gravely 050673

Light-Indicator
(Superseded to 05128700)

Note: (Optional)

$6.99

$

Usually ships in 4-12 days

0
