992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Seat, Frame And Bumper Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

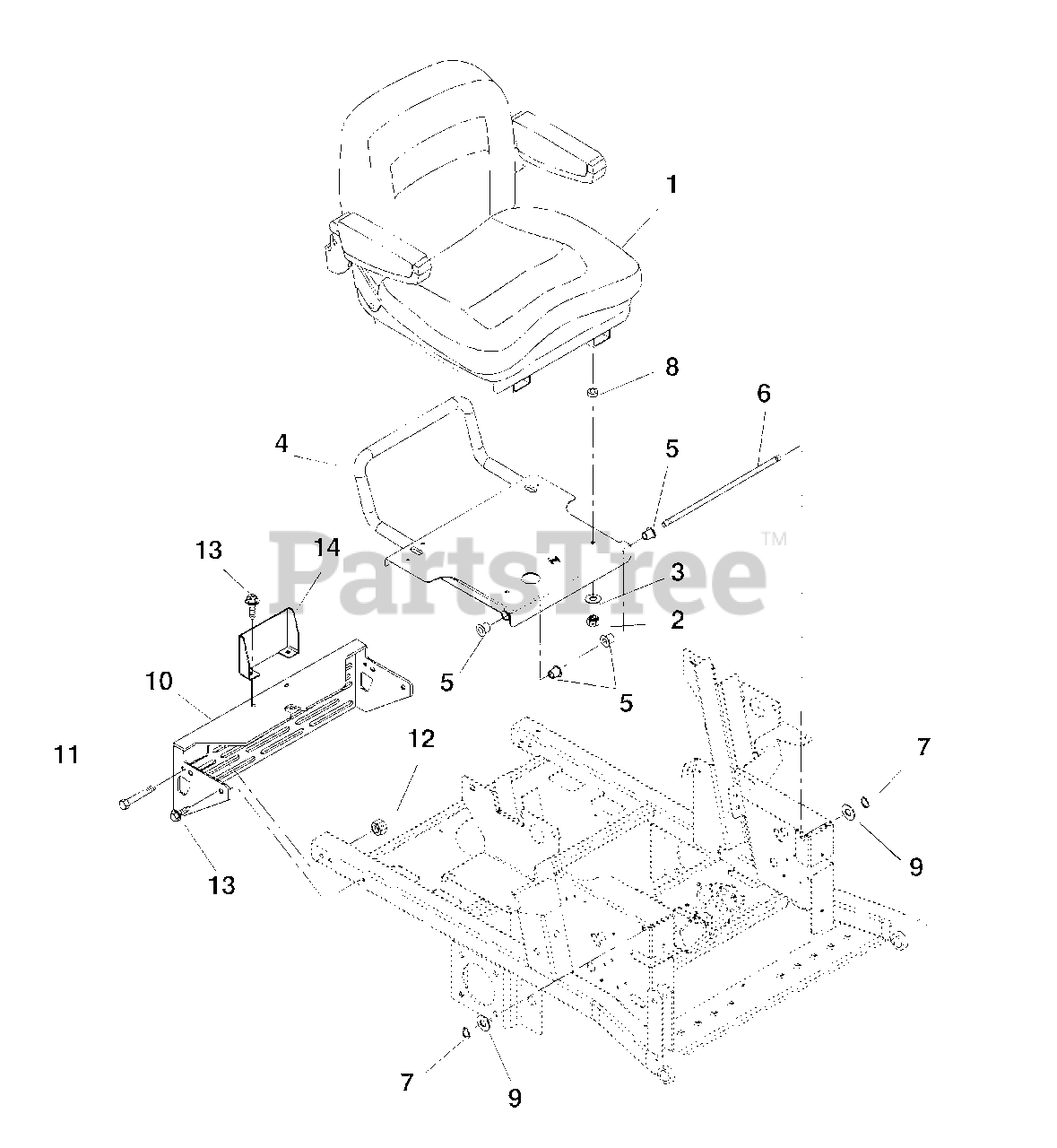

Seat, Frame And Bumper Parts Diagram

  • Title

1

Ariens 09214500

SEAT, MILSCO XB180 - ZOOM

$

$

Not available

2

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 09210459

WMT, SEAT FRAME - ORANGE
(Superseded to 09259851)

$

$

Not available

5

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 2 left!

0

6

Ariens 09245400

ROD - SEAT FRAME PIVOT

$129.99

$

Usually ships in 4-12 days

0

7

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

8

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

9

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 09258159

WLDMT, BUMPER

$

$

Not available

11

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

12

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 09229951

GUARD, ENGINE

$64.99

$

Usually ships in 4-12 days

0
