992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Lift Valve And Cylinder Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

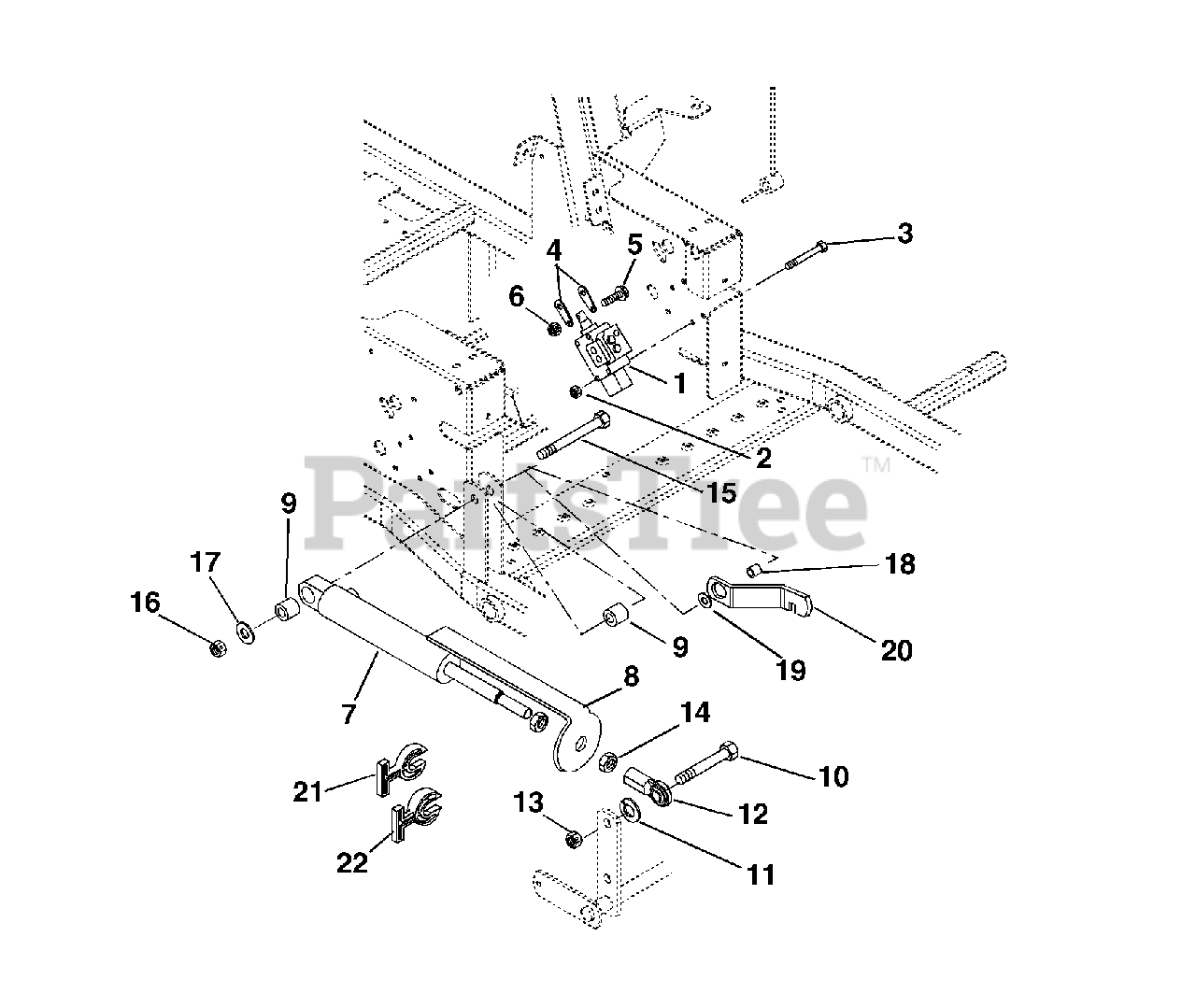

Lift Valve And Cylinder Parts Diagram

  • Title

1

Ariens 09231300

VALVE, HYDRAULIC LIFT

$517.99

$

Usually ships in 4-12 days

0

2

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

3

Ariens 05969900

@BLT-HEX .25-20X2.75 GR5 YWZC

$

$

Not available

4

Ariens 09230300

LINK

$

$

Not available

5

Ariens 06118500

@SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

6

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 09245100

CYLINDER - HYDRAULIC LIFT
(Superseded to 04864700)

$516.99

$

In Stock, only 1 left!

0

8

Ariens 09255900

STRAP, HEIGHT OF CUT INDICATOR

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 09215200

BUSHING, .516X1.000X1.050 LG

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06309500

@WSHR-LK .62X.156 REG YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 09221600

ROD END, 5/8 RH - FEMALE

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 06539600

NUT-JAM .625-18 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

18

Ariens 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

19

Ariens 03515000

WAVE WASHER .760X1.062X.105FH

$

$

Not available

20

Ariens 09250300

LATCH

$

$

Not available

21

Ariens 09212200

STOP, CYLINDER .34 THK

$11.99

$

In Stock, only 2 left!

0

22

Ariens 09212300

STOP, CYLINDER .680 THK

$11.99

$

In Stock, Qty 20+

0
