992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) 50" Discharge Chute And Rollers Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

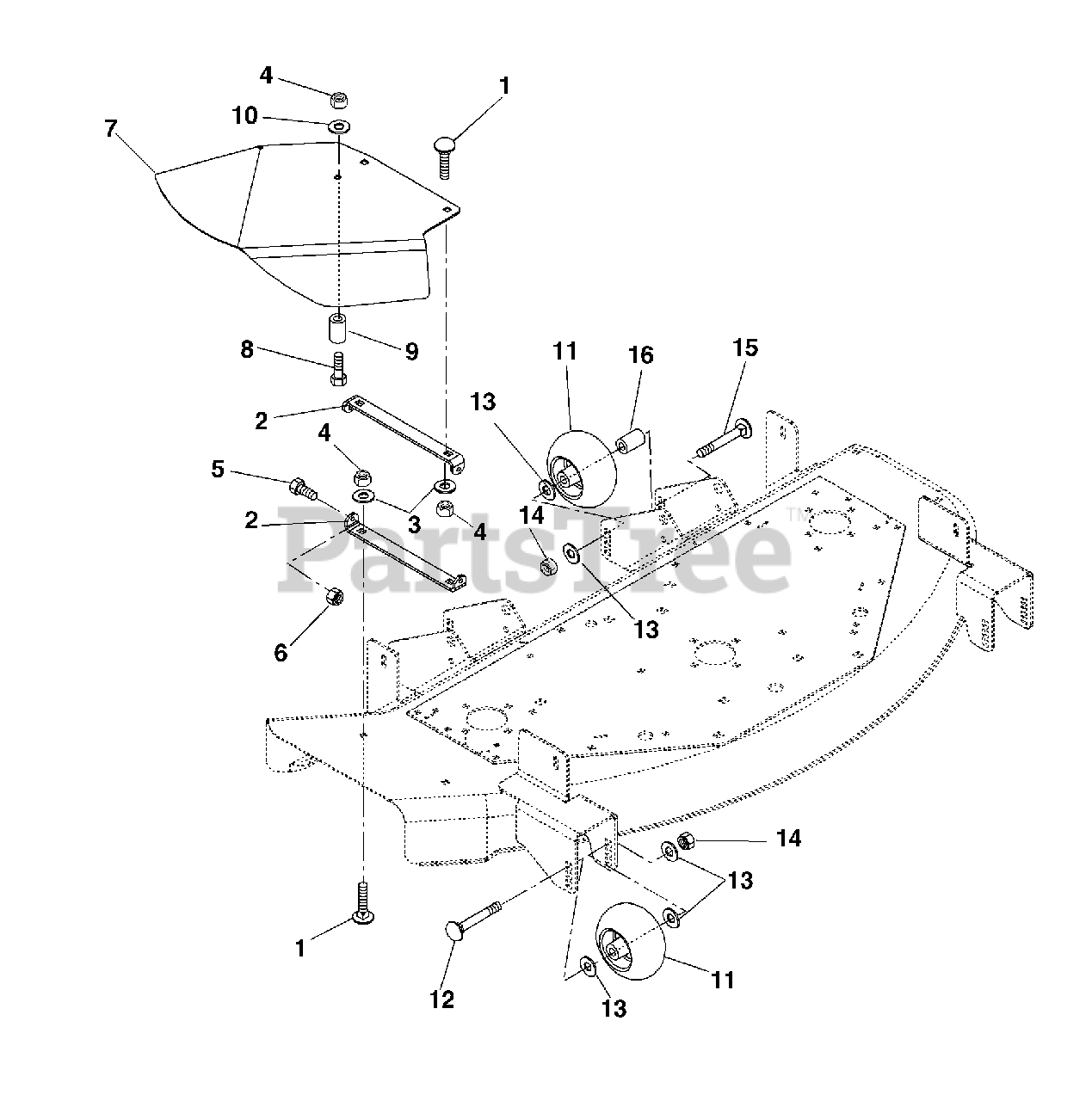

50" Discharge Chute And Rollers Parts Diagram

  • Title

1

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

2

Ariens 08827659

BRACKET, CHUTE - ORANGE

$

$

Not available

3

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03498959

SHIELD, 50" SAFETY - ORANGE

$

$

Not available

8

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

9

Ariens 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, only 1 left!

0

10

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

11

Ariens 09253700

WHEEL, 3X5

$14.99

$

In Stock, Qty 6

0

12

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Ariens 06225100

BLT-RDHDSQNK .50-13X6.50 YWZC2

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 09214400

SPACER, .505 X 1.00 X 1.56

$31.99

$

Usually ships in 4-12 days

0
