992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) 50" Deck And Spindles Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

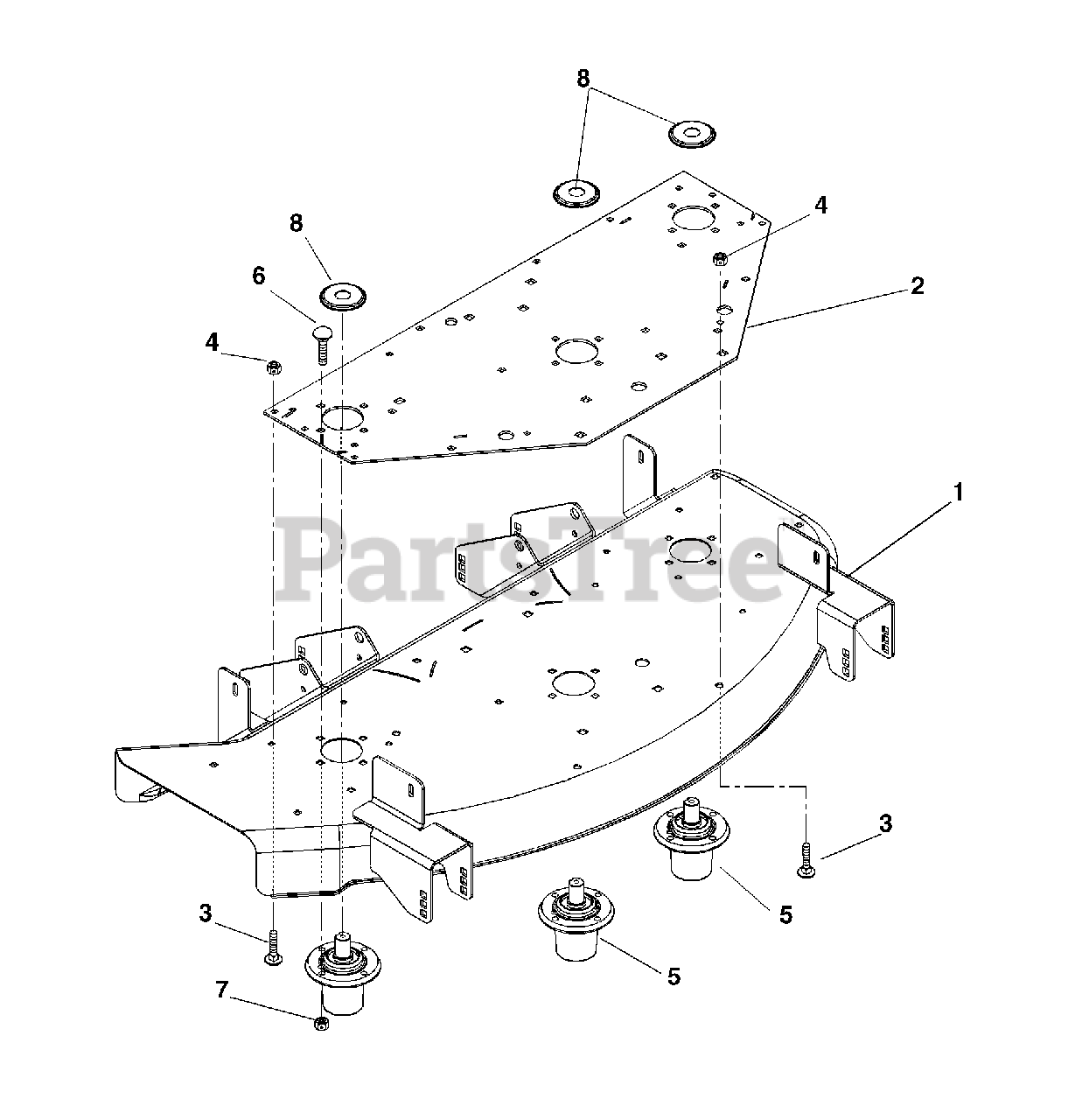

50" Deck And Spindles Parts Diagram

  • Title

1

Ariens 09212659

WMT, 50" STAMPED DECK - ORANGE
(Superseded to 59224600)

Note: (Side Discharge)

$774.99

$

Usually ships in 4-12 days

0

2

Ariens 08850159

PLATE, SUPPORT 50" - ORANGE

$

$

Not available

3

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 58803600

MAINTENANCE FREE SPINDLE ASSY

$262.99

$

In Stock, only 1 left!

0

6

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

7

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0
