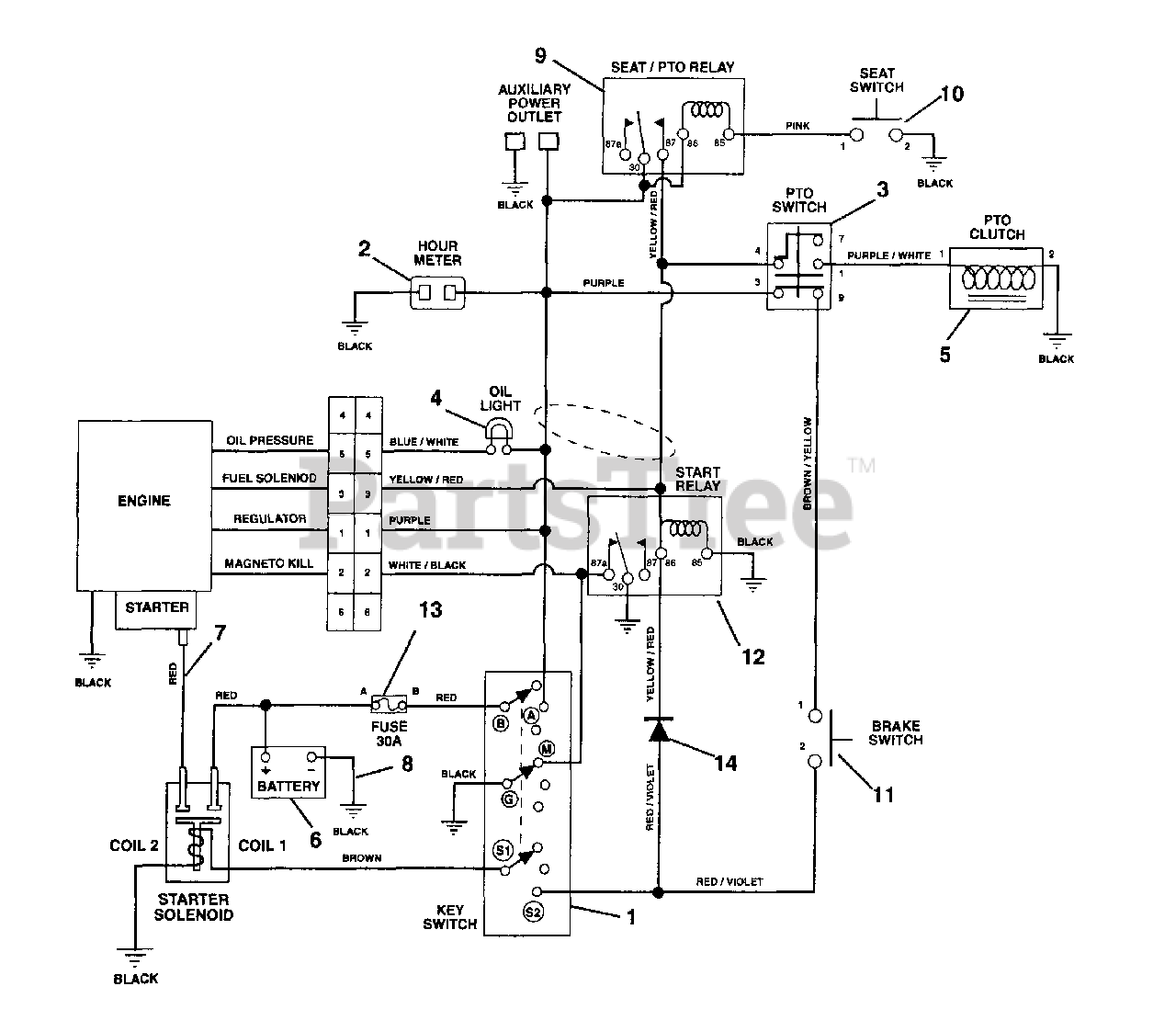

992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Wiring Diagram Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

2

Ariens 03492700

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

3

Ariens 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

4

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

5

Ariens 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

6

Ariens 03621100

BATTERY W/ TUBE

$

$

Not available

7

Ariens 08987000

CBL,BATTERY TO SOLENOID

$51.99

$

In Stock, only 1 left!

0

8

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

9

Ariens 03042800

RELAY
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

10

Ariens 03490500

SEAT SWITCH

$15.99

$

In Stock, only 1 left!

0

11

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

12

Ariens 09239600

HARNESS KOHLER

$387.99

$

Usually ships in 4-12 days

0

13

Ariens 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$

$

Not available

14

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$26.99

$

Usually ships in 4-12 days

0
