992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Transmission Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

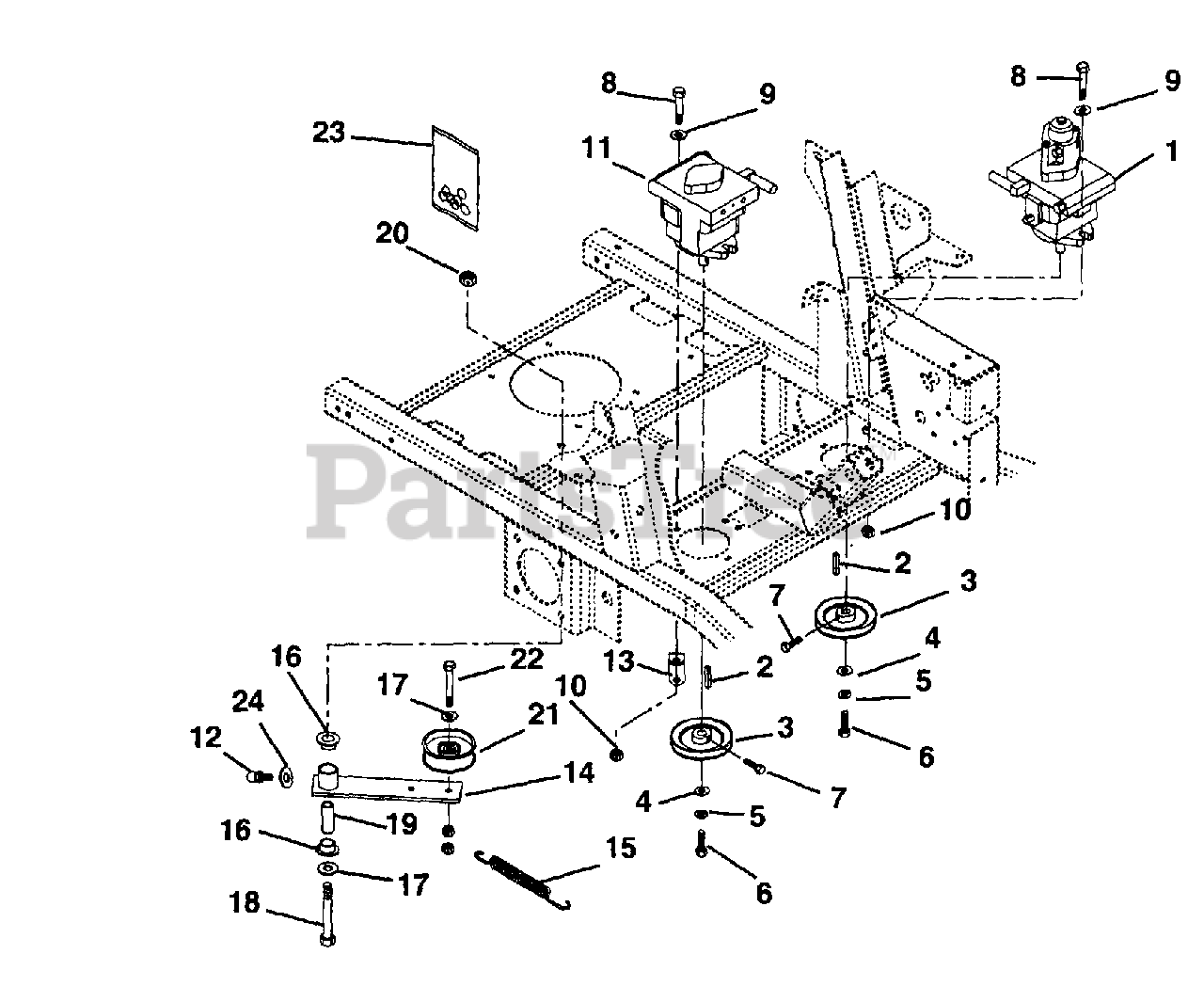

Transmission Parts Diagram

  • Title

1

Ariens 09235800

HYDROSTAT BDP-10L-901P W/AUX
(Superseded to 09279800)

$1939.99

$

Usually ships in 4-12 days

0

2

Ariens 06607500

KEY-STR 5MMX25MMX5MM

$3.99

$

In Stock, only 2 left!

0

3

Ariens 07318900

SHEAVE, PUMP .592 X 4.345

$51.99

$

In Stock, only 2 left!

0

4

Ariens 06442200

WSHR-FL-STL .281X1.0X.048 YWZC
(Superseded to 06426600)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05969800

BLT-HEX M6 X 1.0X12 YWZC

$1.99

$

In Stock, Qty 14

0

7

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 08867300

VARIABLE PUMP BDP-10L-117P
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

12

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

13

Ariens 09231151

ANCHOR, SPRING IDLER
(Superseded to 09231100)

$23.99

$

Usually ships in 4-12 days

0

14

Ariens 09249500

IDLER ARM - GROUND DRIVE
(Superseded to 09249551)

$64.99

$

Usually ships in 4-12 days

0

15

Ariens 08334100

SG-TENS .120 X .845 X 6.50
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

16

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

19

Ariens 08815100

BUSH.,S.560X.745X2.04 ST

$21.99

$

In Stock, only 1 left!

0

20

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 07320800

IDLER, FLAT .377X4.0X.96W POLY

$34.99

$

In Stock, Qty 12

0

22

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Ariens 58800300

KIT, PUMP SEAL (P/N 2513018)

Note: (One kit required for each pump)

$45.99

$

Usually ships in 4-12 days

0

24

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0
