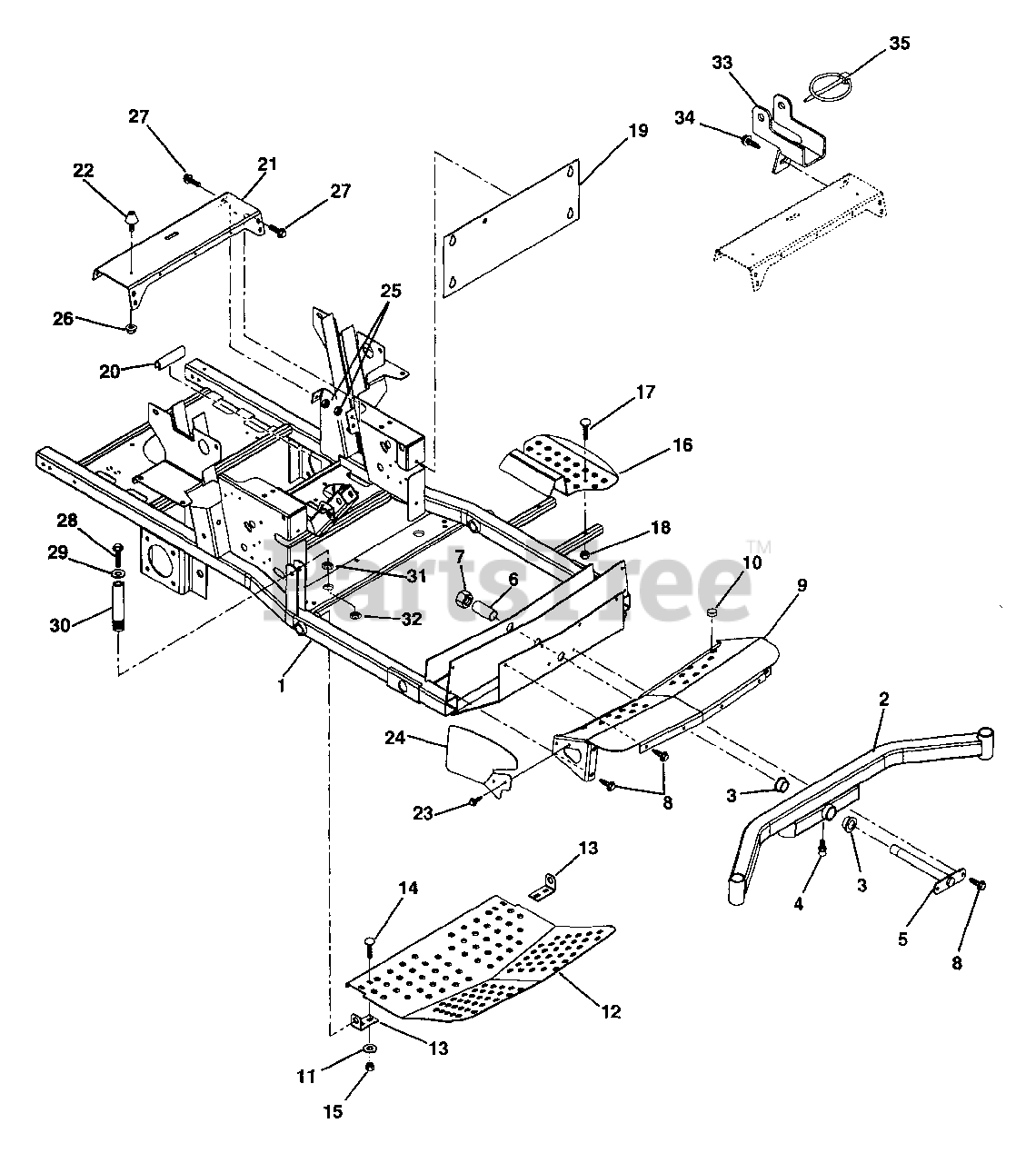

992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Frame Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

Frame Parts Diagram

  • Title

1

Ariens 09248259

FRAME SHORT WHEELBASE (ORANGE)

$581.99

$

Usually ships in 4-12 days

0

2

Ariens 09214359

WMT, FRONT AXLE - ORANGE

$

$

Not available

3

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

4

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

5

Ariens 09232000

PIN - AXLE

$68.99

$

In Stock, only 1 left!

0

6

Ariens 09231900

SPACER 1.009 X 1.250 X 4.23

$20.99

$

In Stock, only 2 left!

0

7

Ariens 06543200

NUT-LK-NYL 1.0-14 YWZC

$9.49

$

In Stock, only 2 left!

0

8

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 09233459

COVER - AXLE (ORANGE)
(Superseded to 09278059)

$271.99

$

Usually ships in 4-12 days

0

10

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 09233359

PANEL - INSPECTION (ORANGE)

$

$

Not available

13

Ariens 09231051

MOUNT, INSPECTION PANEL(BLACK)
(Superseded to 09231000)

$11.99

$

Usually ships in 4-12 days

0

14

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

15

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Ariens 09231259

STEP - INGRESS (ORANGE)
(Superseded to 09231251)

$

$

Not available

17

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

18

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 09234059

PLATE - KICK (ORANGE)

$

$

Not available

20

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 09246459

CHANNEL - CROSS (ORANGE)

$22.99

$

Usually ships in 4-12 days

0

22

Ariens 07533000

BUMPER, RUBBER CONE,STUD MOUNT

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 09255859

GUARD, FOOT - ORANGE
(Superseded to 09255851)

$

$

Not available

25

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

26

Ariens 06534600

@NUT-SPNLK-FLG .312-24 YWZC

$

$

Not available

27

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 05975000

BLT-HEX .50-20X1.00 GR5 YWZC

$3.49

$

In Stock, only 4 left!

0

29

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 09255700

POST
(Superseded to 09260800)

$

$

Not available

31

Ariens 06539900

NUT-JAM .75-16 YWZC

$3.49

$

In Stock, only 2 left!

0

32

Ariens 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

33

Ariens 09211100

BRACKET, SEAT LOCK

$

$

Not available

34

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0
