992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Electrical System Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

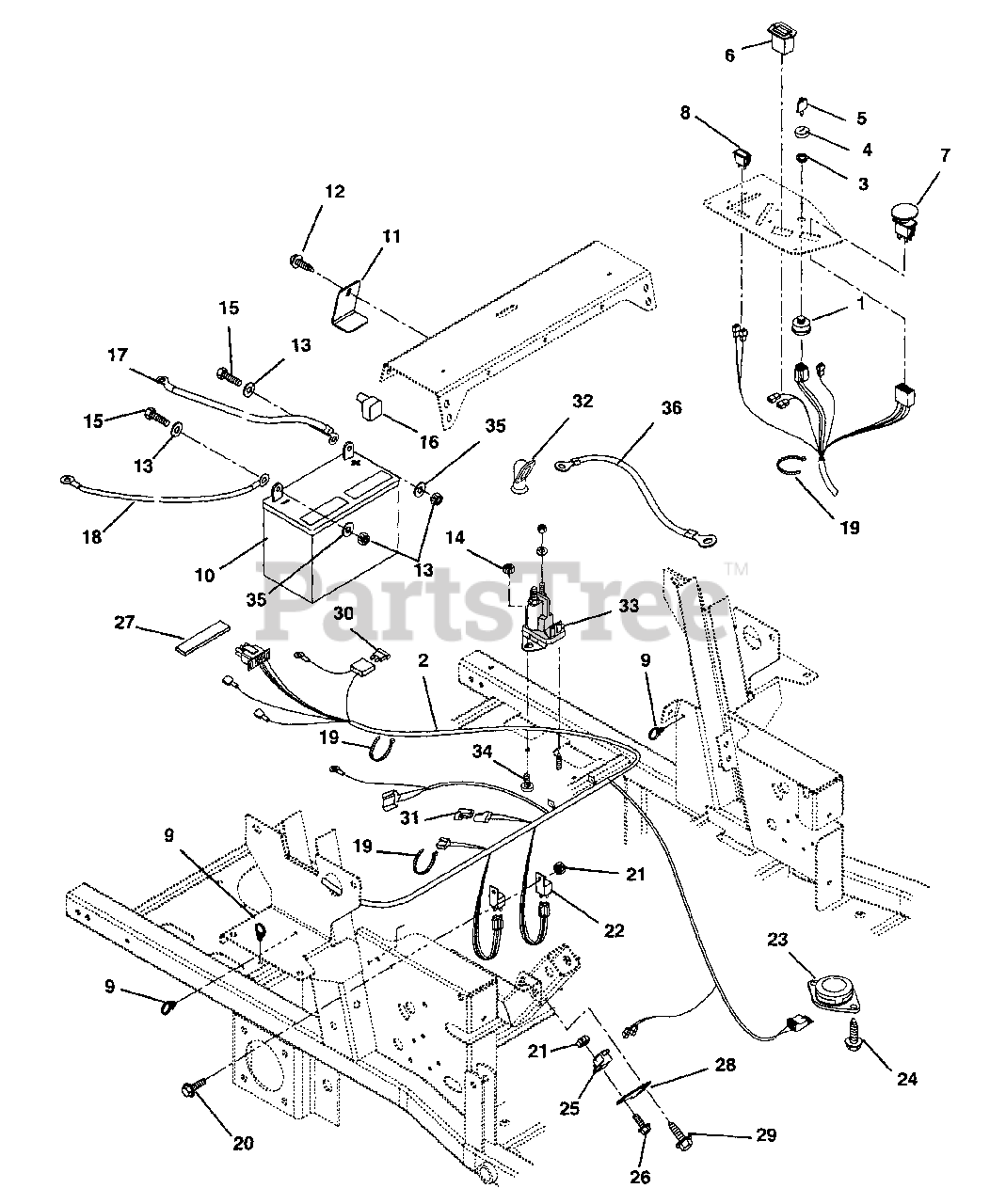

Electrical System Parts Diagram

  • Title

1

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

2

Ariens 09217800

HARNESS, Z 6-PIN WIRING
(Superseded to 09286301)

$335.99

$

Usually ships in 4-12 days

0

3

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

4

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 9

0

5

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

6

Ariens 03492700

HOUR METER
(Superseded to 09497400)

Note: (Optional)

$23.99

$

In Stock, only 2 left!

0

7

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

8

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

Note: (Optional)

$6.99

$

In Stock, only 1 left!

0

9

Ariens 09236500

TUBE CLIP 3/4 (4158)

$

$

Not available

10

Ariens 03621100

BATTERY W/ TUBE

$

$

Not available

11

Ariens 09236400

CLAMP - BATTERY

$

$

Not available

12

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

15

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

17

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 1 left!

0

18

Ariens 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

19

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

20

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03042800

RELAY
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

23

Ariens 03490500

SEAT SWITCH

$15.99

$

In Stock, only 1 left!

0

24

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

25

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 1 left!

0

26

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

27

Ariens 08800600

PAD,BATTERY

$

$

Not available

28

Ariens 09237500

PLATE - SWITCH

$

$

Not available

29

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$

$

Not available

31

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$26.99

$

In Stock, only 1 left!

0

32

Ariens 03384700

BOOT, INSULATOR

$

$

Not available

33

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

34

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 1 left!

0
