992028 (2050) - Ariens Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Deck Lift Circuit Parts Diagram

Zoom 50" Zero-Turn Mower, 20hp Briggs & Stratton

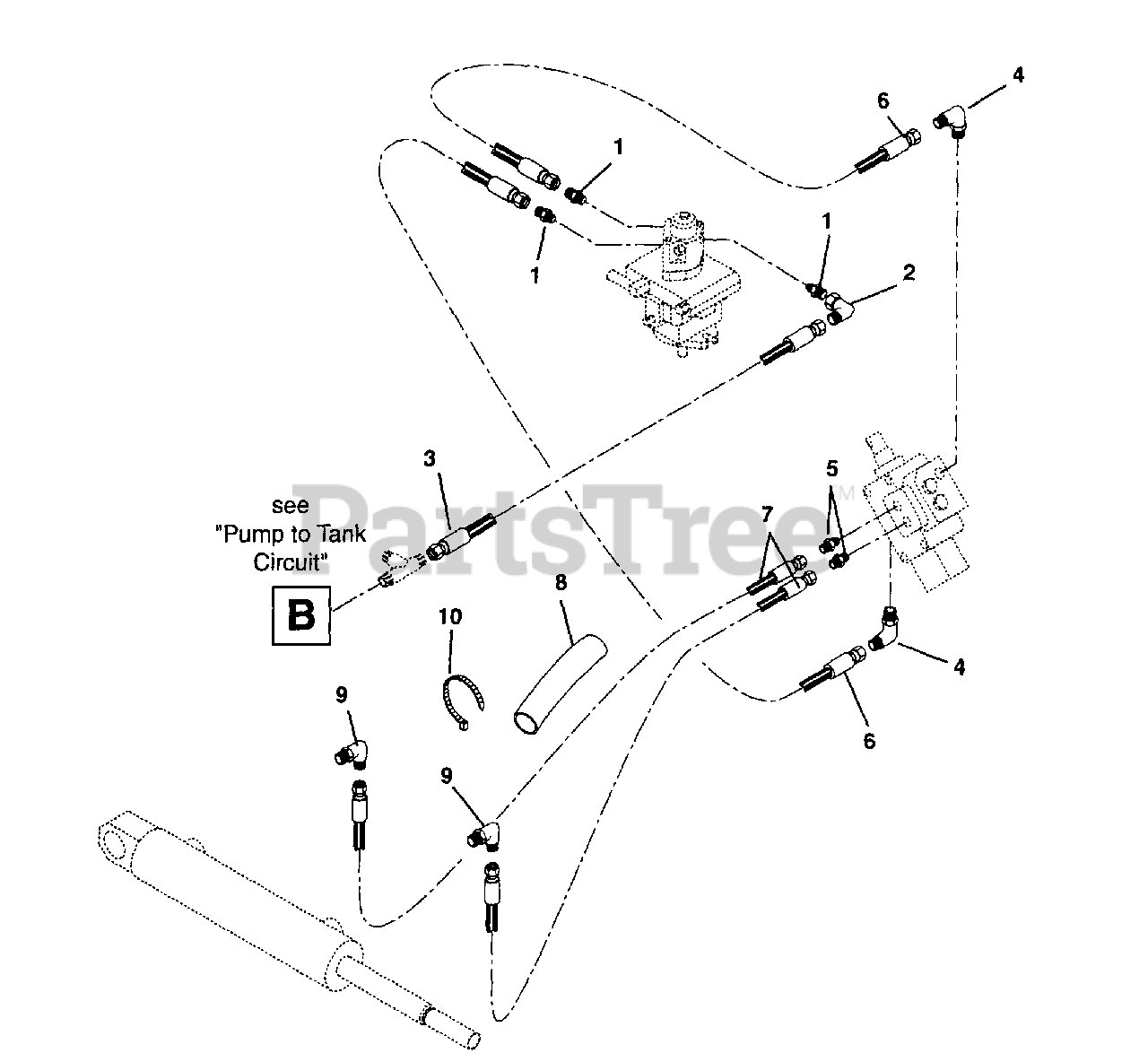

Deck Lift Circuit Parts Diagram

  • Title
1

Ariens 09234700

ADP 0503-4-6

$6.99

$

Usually ships in 4-12 days

0

2

Ariens 08901000

ADPT 3903-6-6

$20.99

$

Usually ships in 4-12 days

0

3

Ariens 08811300

HOSE,HYD VALVE TO TANK

$39.99

$

Usually ships in 4-12 days

0

4

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 08801500

ADPT 0503-4-4

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 09236000

HOSE HYDRAULIC 3/8 27.75 LONG

$137.99

$

Usually ships in 4-12 days

0

7

Ariens 09237300

HOSE-HYDRAULIC 1/4 40.5" LONG

$116.99

$

Usually ships in 4-12 days

0

8

Ariens 09249400

SLEEVE, PROTECTIVE

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 08800700

ADPT 2503-4-4

$22.99

$

Usually ships in 4-12 days

0

10

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
