992023 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 012000 - 012082) 50" Discharge Chute And Baffles Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

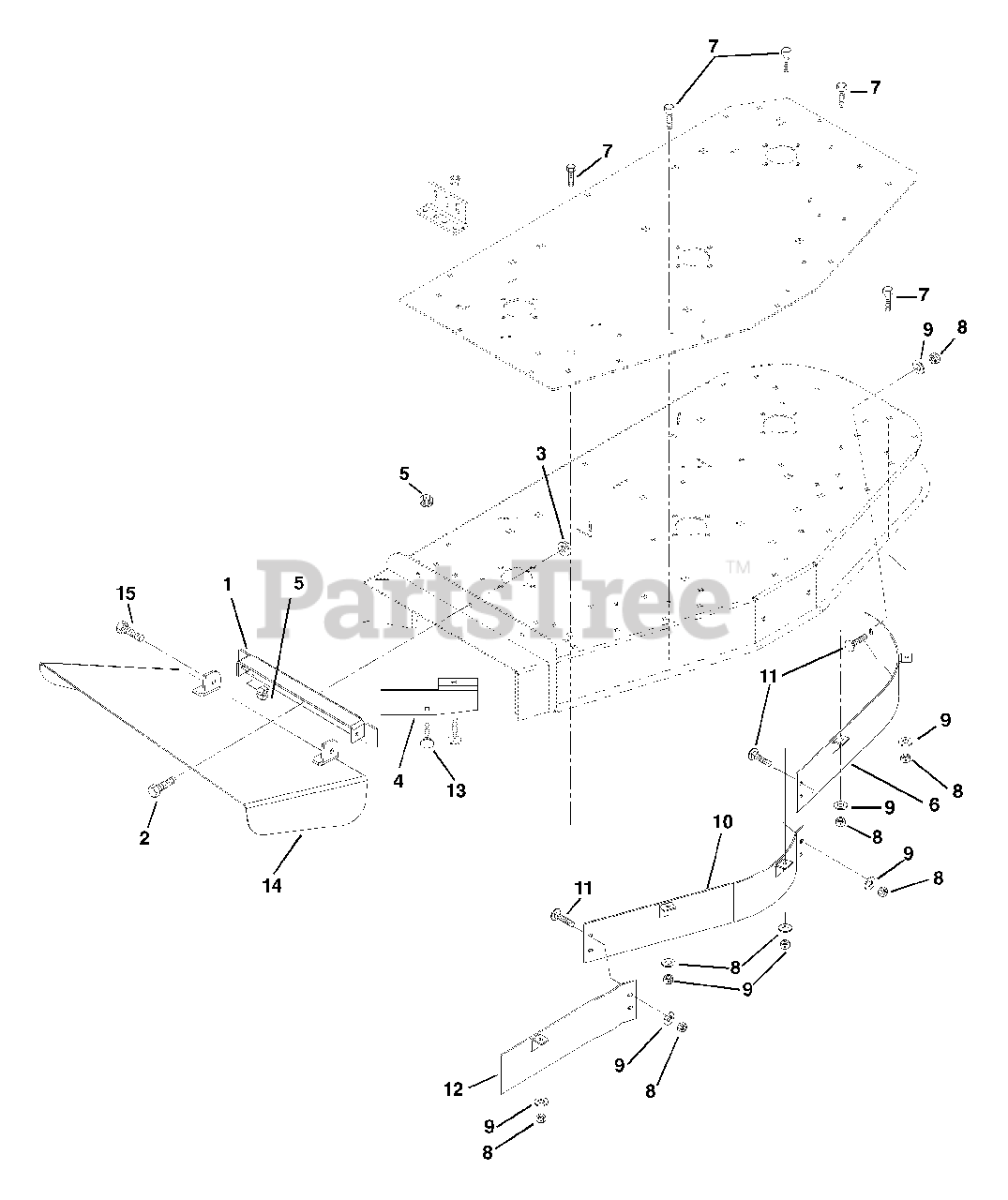

50" Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09238353

Weldment, Discharge Chute Bracket
(Superseded to 00253253)

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt-Hex .38 - 16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06534900

Nut-Locking-Flange .38 - 16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09242251

Deflector

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 06529600

Nut-Locking-Center .38 - 16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09242351

Weldment, 50" Left Hand Baffle-Upper

$93.99

$

Usually ships in 4-12 days

0

7

Gravely 05946900

Bolt-Hex .31 - 18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530200

Nut-Locking-Nylon .31 - 18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 09242451

Weldment, 50" Center Baffle-Up

$93.99

$

Usually ships in 4-12 days

0

11

Gravely 06215700

Bolt-Round Head Square Neck .31 - 18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 09247351

Weldment, 50" Right Hand Baffle-Upper

$71.99

$

Usually ships in 4-12 days

0

13

Gravely 06215500

Bolt-Round Head Square Neck .38 - 16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

14

Gravely 09250853

Weldment, Discharge Chute 50"

$

$

Not available

15

Gravely 07056500

Bolt-Hex .38 - 16 x 1.00 Grade 5
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

16

Gravely 79200600

50" Discharge Cover

$

$

Not available

17

Gravely 79200500

50" Mulch Kit

$

$

Not available
