992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) Motors And Wheels Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

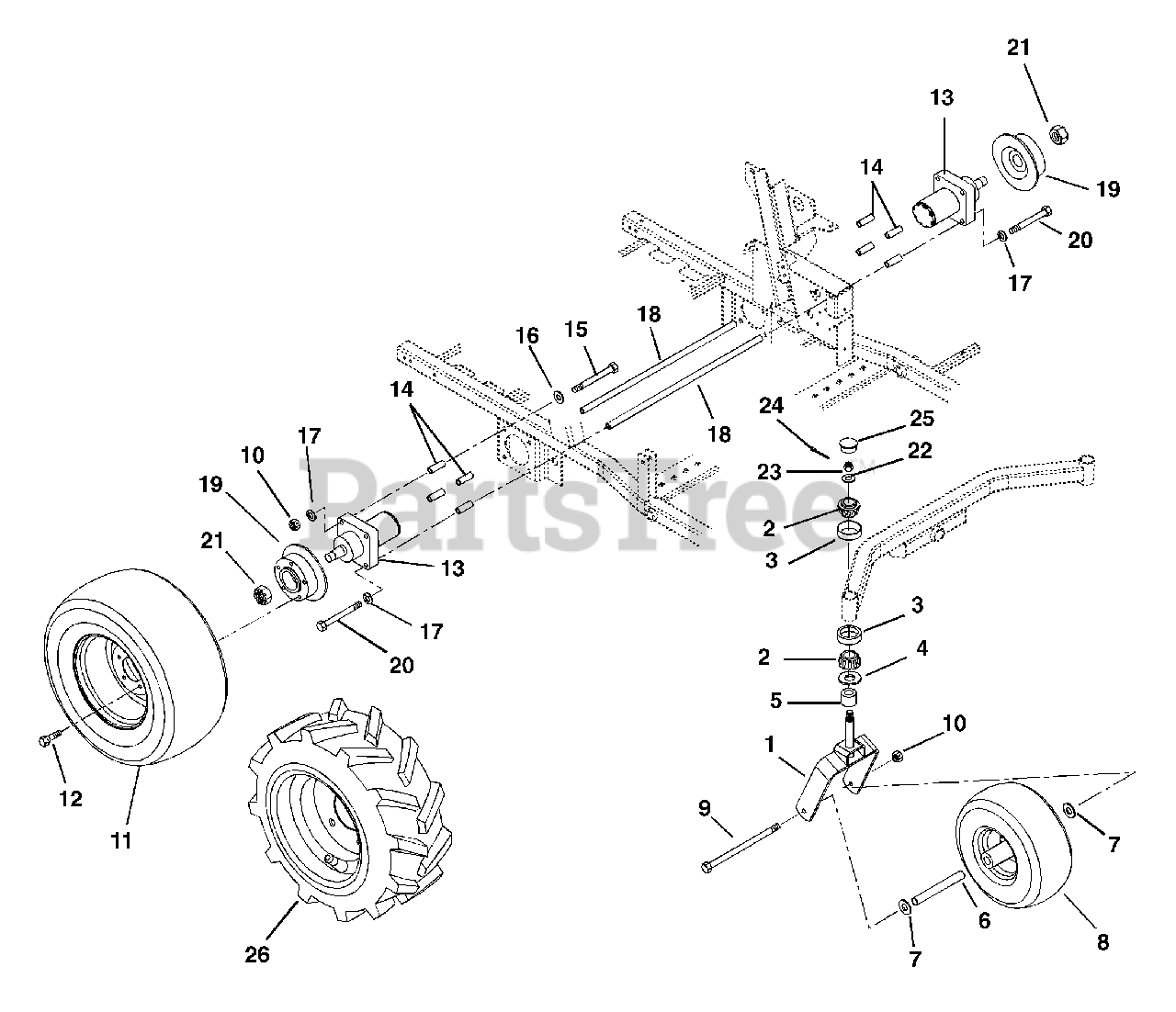

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09247453

Fork-Front

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing-Cone w/ Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing-Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 3 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 6

0

6

Gravely 09231800

Spacer-Wheel

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

8

Gravely 07147100

Tire, 15 x 6 - 6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Gravely 05961200

Bolt-Hex .50 - 13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

Nut-Locking-Center .50 - 13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 07148900

Wheel-Tire 23 x 10.50 - 12 Multi-Trac
(Superseded to 07101116)

Note: (Model 020, 021, 022, 024, 305)

$290.99

$

In Stock, only 1 left!

0

11

Gravely 07149000

Tire 23 x 10.50

Note: (Model 020, 021, 022, 024, 305)

$

$

Not available

11

Gravely 07152300

Wheel-Tire Assembly 23 x 10 50-12
(Superseded to 59101000)

Note: (Model 027)

$271.99

$

Usually ships in 4-12 days

0

11

Gravely 07150700

Wheel-Tire 23 x 8.50 Multi-Trac

Note: (Model 023)

$

$

Not available

11

Gravely 07150000

Tire 23 x 8.50
(Superseded to 07150700)

Note: (Model 023)

$

$

Not available

12

Gravely 07014600

Bolt-Lug .50-20 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Gravely 09232300

Hydraulic Wheel Motor

Note: (Includes 21)

$905.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.129

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 05962200

Bolt-Hex .50 - 13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 00211100

Spacer .500 x .750 x .321

$3.49

$

In Stock, only 3 left!

0

17

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

18

Gravely 09236200

Rod-Motor Connecting

$94.99

$

In Stock, only 1 left!

0

19

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

20

Gravely 05962300

Bolt-Hex .50 - 13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

21

Gravely 06541900

Nut -Lock Jam Patch

Note: (Included with 13)

$30.99

$

In Stock, only 1 left!

0

22

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

23

Gravely 00595500

Nut-Slotted .75 - 16

$3.49

$

In Stock, only 3 left!

0

24

Gravely 06712300

Pin-Cotter .16 x 1.00

$2.49

$

In Stock, Qty 5

0

25

Gravely 20655400

Cap-Dust

$10.99

$

In Stock, Qty 20+

0

26

Gravely 79200700

Wheel/Tire Kit, 260Z L. & R.

Note: (Optional); (Includes 1 L.H. & 1 R.H.)

$

$

Not available

26

Gravely 07149100

Wheel/Tire-L.H. 23 x 10.5 - 12 Tru Power

Note: (Optional)

$

$

Not available

26

Gravely 07149200

Wheel/Tire-R.H. 23 x 10.5 - 12 Tru Power

Note: (Optional)

$

$

Not available

26

Gravely 07149300

Wheel/Tire 23 x 10.50 - 12 Tru Power

$

$

Not available
