992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 009999) Tank And Filter Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

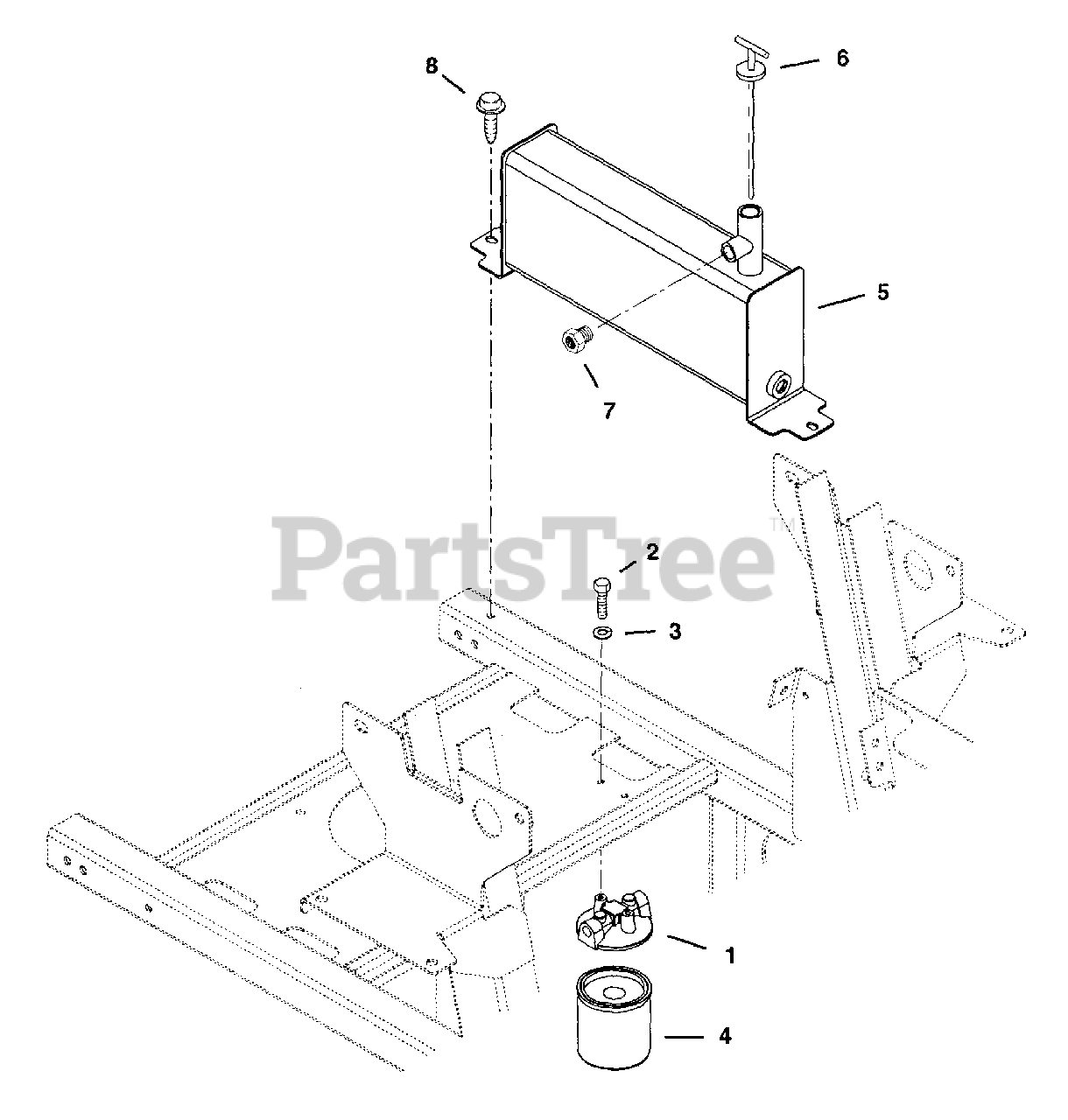

Tank And Filter Parts Diagram

  • Title

1

Gravely 09072100

Head-Filter

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09246900

Oil Filter

$23.99

$

In Stock, only 2 left!

0

5

Gravely 092331053

Tank-Hydraulic Weldment

$

$

Not available

6

Gravely 00566400

Hydraulic Tank Dipstick

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 07050600

Plug-Breather .38

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
