992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 009999) Belts, Idlers And Blades Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

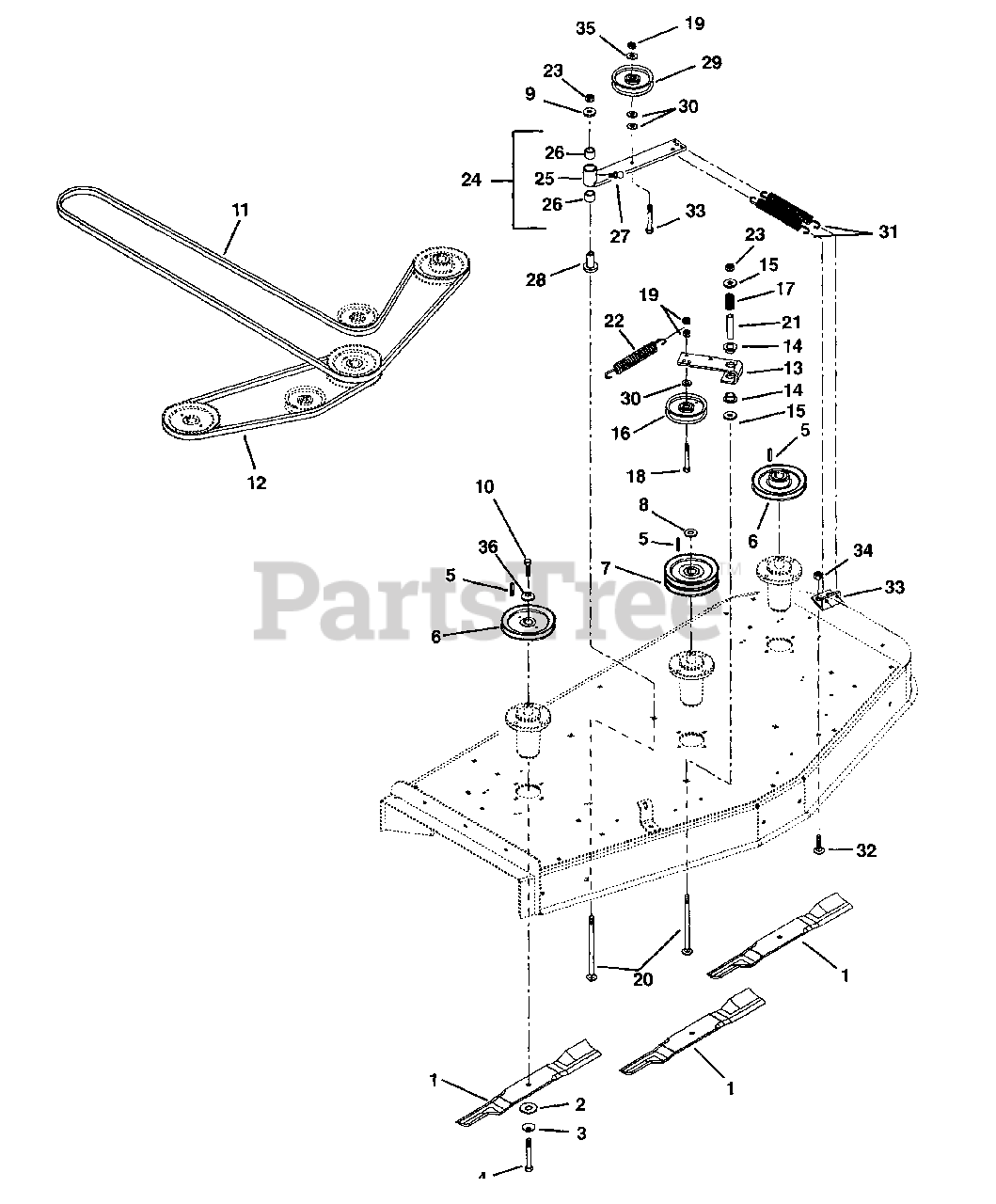

Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 09246600

Blade, 60" Mower Tungsten Hi-Lift
(Superseded to 09081200)

$29.99

$

In Stock, Qty 20+

0

1

Gravely 09246700

Blade, 50" Mower Tungsten Hi-Lift
(Superseded to 09082400)

$30.99

$

In Stock, Qty 20+

0

2

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

3

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

4

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0

5

Gravely 06605500

Key-Straight .25 x .75 x .25

$2.99

$

In Stock, only 1 left!

0

6

Gravely 09238500

Weldment, Spindle Sheave 6.00 (60" Deck)

Note: (60" Deck)

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 09242500

Weldment, Spindle Sheave 5.00 (50" Deck)
(Superseded to 07331067)

Note: (50" Deck)

$119.99

$

In Stock, only 1 left!

0

7

Gravely 09238600

Weldment, Spindle Sheave (Double) 6.00 (60" Deck)
(Superseded to 59202200)

Note: (Double) 6.00 (60" Deck)

$

$

Not available

7

Gravely 09242600

Weldment, Spindle Sheave-Double 5.00 (50" Deck)
(Superseded to 59202300)

Note: (50" Deck)

$

$

Not available

8

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 00095552

Washer-Flat-Steel .531 x 1.250 x .100

$

$

Not available

10

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07235100

V-Belt, B-RMA 63.40 x .625 (60" Deck)

Note: (60" Deck)

$142.99

$

In Stock, only 2 left!

0

11

Gravely 07234600

V-Belt, B-RMA 58.70 x .625 (50" Deck)

Note: (50" Deck)

$126.99

$

In Stock, only 3 left!

0

12

Gravely 07235000

V-Belt, B-RMA 23.94 x .625 (60" Deck)

Note: (60" Deck)

$52.99

$

In Stock, only 1 left!

0

12

Gravely 07234900

V-Belt, B-RMA 18.13 x .625 (50" Deck)

Note: (50" Deck)

$52.99

$

In Stock, only 2 left!

0

13

Gravely 00092215

Arm,Idler Pivot

$

$

Not available

14

Gravely 00099550

Bushing-Flange .762 x 1.0 x .580 x 1.48 Nylon

$

$

Not available

15

Gravely 00095552

Washer-Flat-Steel .531 x 1.250 x .100

$

$

Not available

16

Gravely 07325200

Idler-V 4.00 x .377
(Superseded to 07327600)

$38.99

$

In Stock, Qty 20+

0

17

Gravely 00090332

Spring-Compression .085 x .80 x 1.00 WLD 36

$

$

Not available

18

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06223000

Bolt-Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

21

Gravely 00092097

Spacer .560 x .750 x 2.437 Steel

$

$

Not available

22

Gravely 08334700

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

23

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 09248400

Assembly, Idler Pivot Arm
(Superseded to 09286500)

Note: (Contains items 25 & 26)

$164.99

$

In Stock, only 1 left!

0

25

Gravely 09248500

Weldment, Idler Pivot Arm
(Superseded to 09286451)

$170.99

$

Usually ships in 4-12 days

0

26

Gravely 05434800

Bearing 1.000 x 1.125 x 1.00
(Superseded to 05435800)

$9.49

$

In Stock, only 4 left!

0

27

Gravely 0411027

Fitting-Lube .25-28 x,256

$

$

Not available

28

Gravely 07053100

Bearing, Pedistal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

29

Gravely 07317700

Idler-Flat 4.00 x .38 (2.00 W)
(Superseded to 07327800)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

30

Gravely 00092073

Bushing .406 x .750 x .188

$

$

Not available

31

Gravely 08335100

Spring, Extension
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

32

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 09248353

Bracket, Spring

$40.99

$

In Stock, only 2 left!

0

34

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

37

Gravely 08899200

50" Mulching Blade-Tungsten
(Superseded to 08866800)

Note: (Optional)

$33.99

$

In Stock, Qty 20+

0

38

Gravely 08899100

60" Mulching Blade-Tungsten

Note: (Optional)

$

$

Not available
