992022 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 009999) 60" Deck And Spindles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

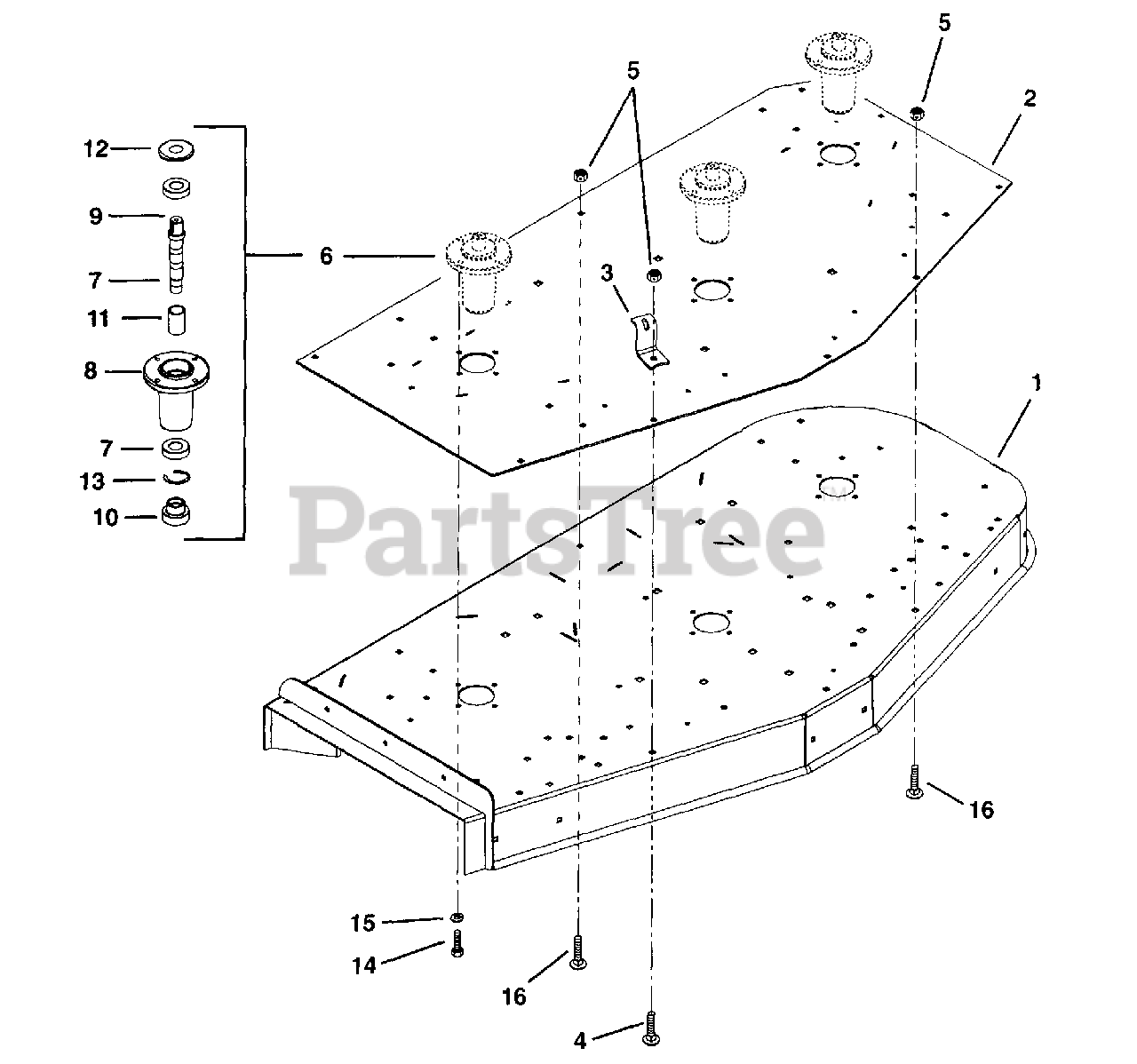

60" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09237653

Weldment, 60" Deck (Side Discharge)

Note: (Side Discharge)

$

$

Not available

2

Gravely 09239753

Plate, 60" Reinforcing

$

$

Not available

3

Gravely 09075853

Spring, Bracket
(Superseded to 09245353)

$

$

Not available

4

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 59201000

Assembly, Spindle L-Hub
(Superseded to 59114000)

Note: (Contains Items 7-13)

$262.99

$

In Stock, only 4 left!

0

7

Gravely 05434700

Bearing-Wide Inner Ring 1.00 x 2.0467
(Superseded to 05400730)

$19.99

$

In Stock, only 2 left!

0

8

Gravely 09237800

Housing-Bearing

$

$

Not available

9

Gravely 09237900

Shaft-Spindle

$

$

Not available

10

Gravely 09238000

Hub

$

$

Not available

11

Gravely 09238100

Spacer 1.010 x 1.250 x 1.845

$

$

Not available

12

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0

13

Gravely 05714200

Ring, Retaining-Internal 2.210 x .062

$2.99

$

In Stock, Qty 5

0

14

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0
