992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 035000 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

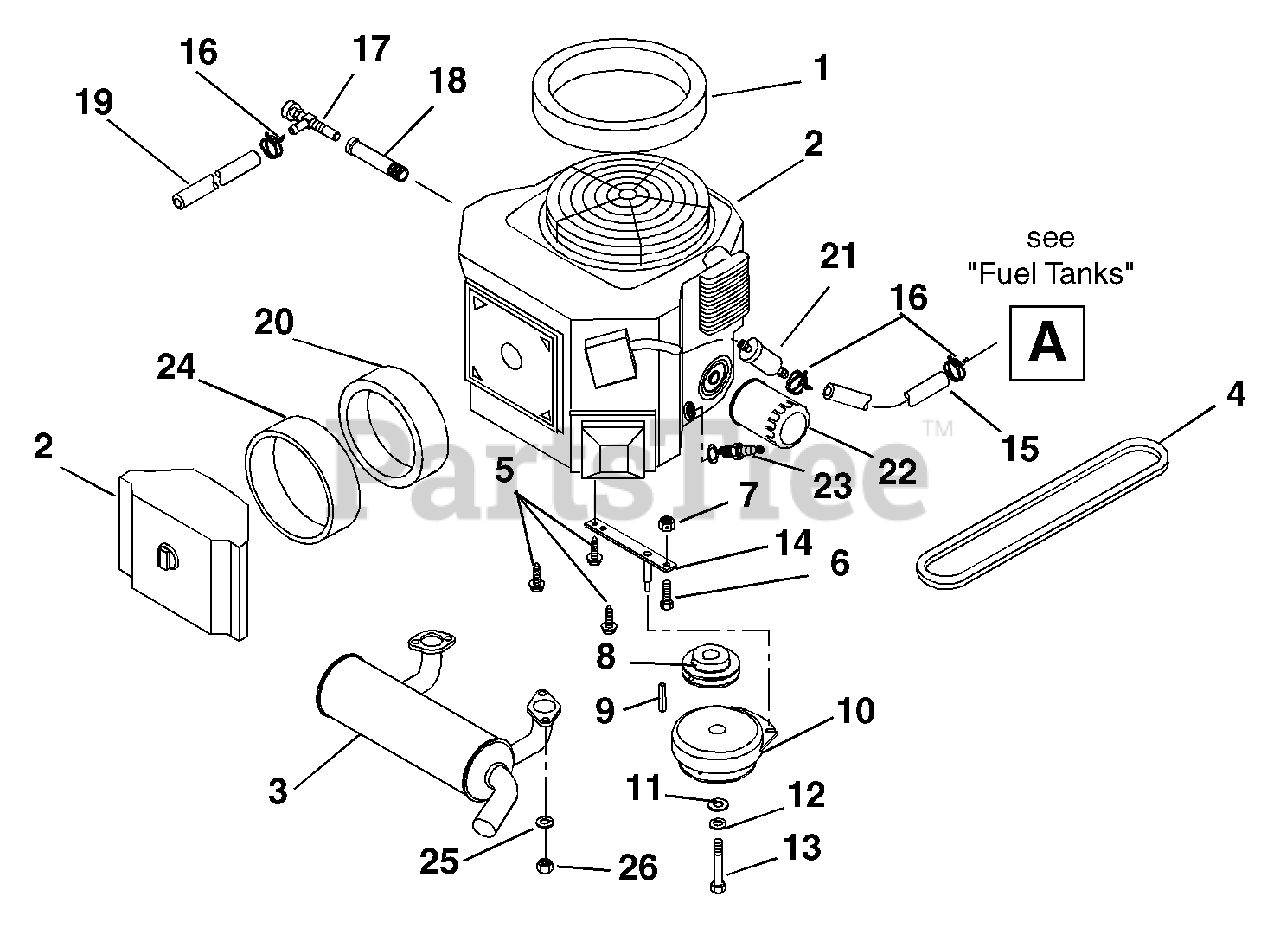

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09231400

Seal-Foam

$58.99

$

Usually ships in 4-12 days

0

2

Gravely 08264900

25HP-Kohler Command Vertical (020)

Note: (020)

$

$

Not available

2

Gravely 08263000

Engine, 25 HP Kawasaki (029, 030)

Note: (029, 030)

$

$

Not available

2

Gravely 08265300

Engine, Kawasaki 19HP (034)

Note: (034)

$

$

Not available

2

Gravely 08265400

Engine, Kawasaki 23HP (035)

Note: (035)

$

$

Not available

3

Gravely 09257400

Muffler, Kohler Command (020)
(Superseded to 00470400)

Note: (020)

$198.99

$

In Stock, only 1 left!

0

3

Gravely 09259300

Muffler- Kawasaki (029, 030, 034, 035)
(Superseded to 09256000)

Note: (029, 030, 034, 035)

$366.99

$

Usually ships in 4-12 days

0

4

Gravely 07239200

V-Belt, A-Section 28.29 x .531

$43.99

$

In Stock, only 1 left!

0

5

Gravely 07414100

Screw-Tapping Hex-Washer-Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07321700

Pulley-V 4.00 x 1.125 with Key

$107.99

$

Usually ships in 4-12 days

0

9

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

10

Gravely 09232700

Clutch, Electric
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

11

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 4 left!

0

12

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 04907200

Anchor-Clutch

$68.99

$

In Stock, only 1 left!

0

15

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 15

0

17

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 21535900

Air Filter (029, 030, 034, 035)

Note: (029, 030, 034, 035)

$29.99

$

Usually ships in 4-12 days

0

20

Gravely 21536400

Air Filter (020)

Note: (020)

$23.99

$

In Stock, only 3 left!

0

21

Gravely 21410800

Fuel Filter
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

22

Gravely 21397200

Oil Filter (020)
(Superseded to 20715100)

Note: (020)

$18.99

$

In Stock, only 4 left!

0

22

Gravely 21535800

Oil Filter (029, 030, 034, 035)
(Superseded to 49065-0724)

Note: (029, 030, 034, 035)

$18.99

$

In Stock, Qty 20+

0

23

Gravely 21525900

Spark Plug (020)
(Superseded to 21541700)

Note: (020)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 21536100

Spark Plug (029, 030, 034, 035)

Note: (029, 030, 034, 035)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 21536000

Element, Precleaner (029, 030, 034, 035)

Note: (029, 030, 034, 035)

$18.99

$

Usually ships in 4-12 days

0

24

Gravely 21536300

Element, Pre-Cleaner (020)

Note: (020)

$6.99

$

In Stock, only 4 left!

0

25

Gravely 06308600

Washer-Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06538600

Nut-Hex M8-1.25

$

$

Not available
