992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 022477 - 029999) Hood Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

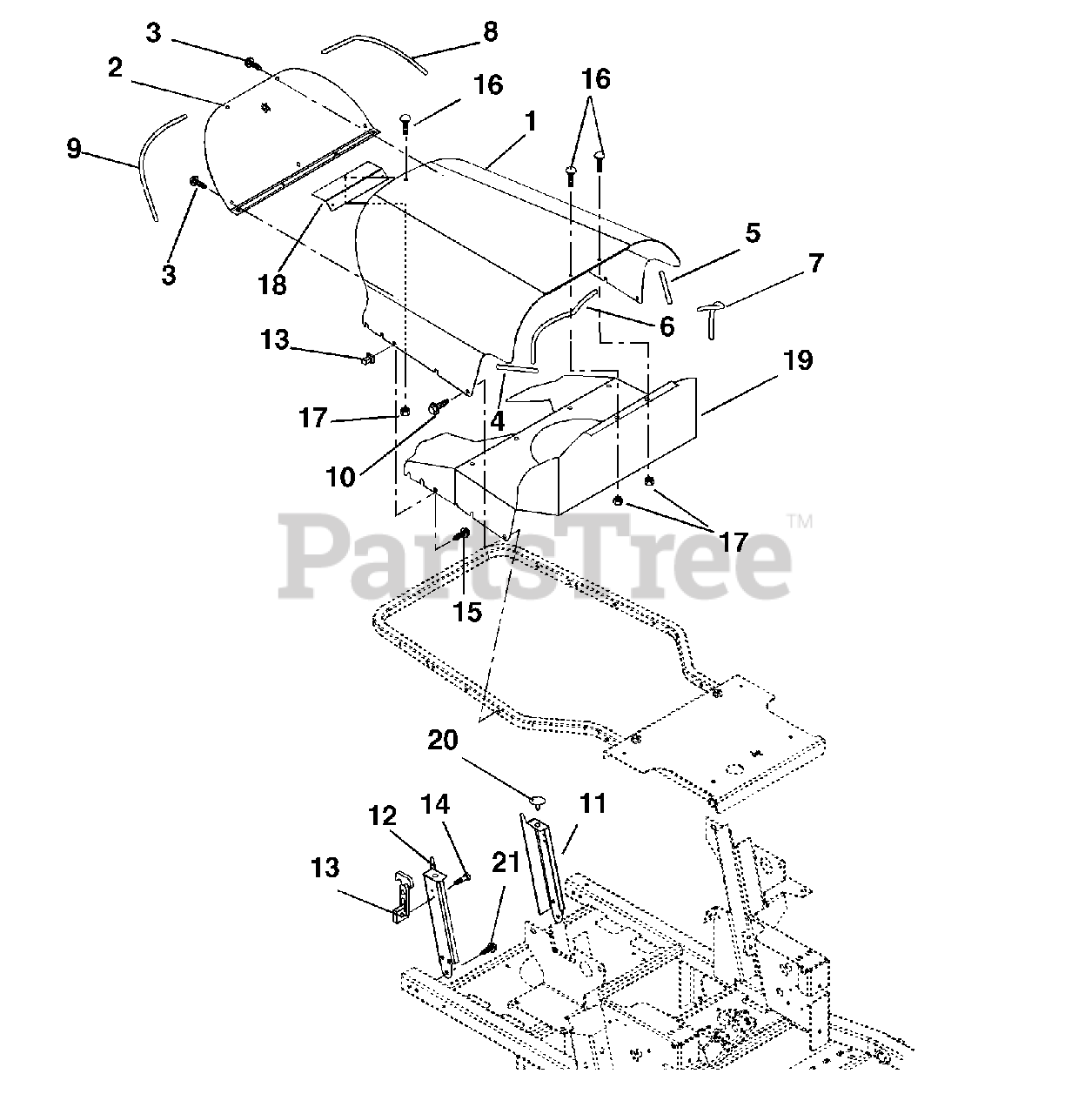

Hood Parts Diagram

  • Title

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 09252951

Screen-Hood

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 00929000

Seal-Trim-Lok Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09253953

Hood Support Left-Hand

$50.99

$

Usually ships in 4-12 days

0

12

Gravely 09254253

Hood Support Right-Hand

$50.99

$

Usually ships in 4-12 days

0

13

Gravely 09079500

Latch-Rubber

$34.99

$

In Stock, only 1 left!

0

14

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06118200

Screw Machine 10-24 x .50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06220600

Bolt-Round Head Square Shank .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 09244700

Bracket-Screen Support

$

$

Not available

19

Gravely 09252851

Weldment, Plenum

$

$

Not available

20

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

21

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
