992020 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) BELTS, IDLERS AND BLADES Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

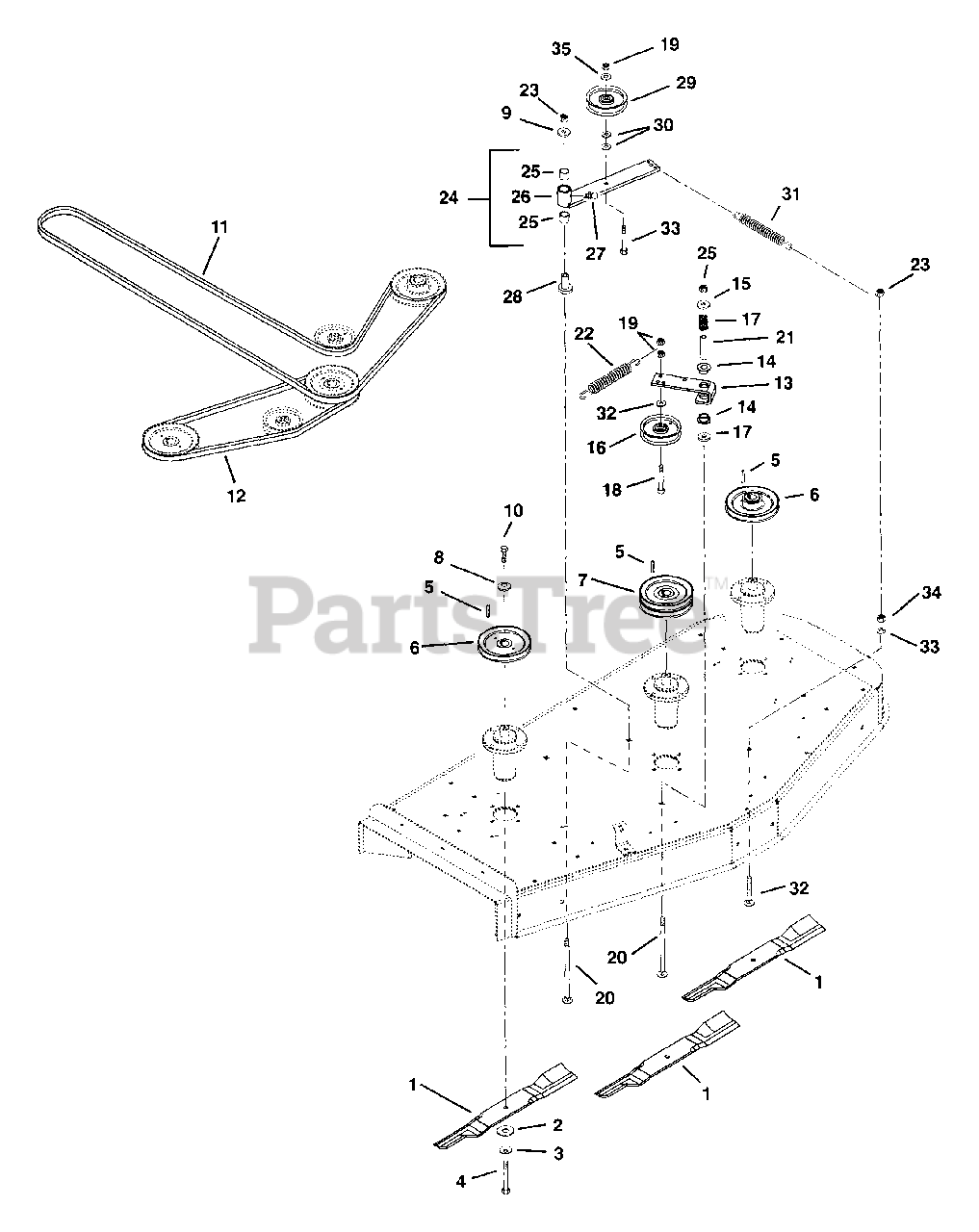

BELTS, IDLERS AND BLADES Parts Diagram

  • Title

1

Gravely 09246600

Blade, Mower 60"
(Superseded to 09081200)

$29.99

$

In Stock, Qty 20+

0

1

Gravely 09246700

Blade, 50" Mower Hi-Lift
(Superseded to 09082400)

$30.99

$

In Stock, Qty 20+

0

2

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

3

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

4

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0

5

Gravely 06605500

Key-Straight .25 x .75 x .25

$2.99

$

In Stock, only 1 left!

0

6

Gravely 09238500

Weldment, Spindle Sheave 6.00 (60" Deck)

Note: (60" Deck)

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 09242500

Weldment, Spindle Sheave 5.00 (50" Deck)
(Superseded to 07331067)

Note: (50" Deck)

$119.99

$

In Stock, only 1 left!

0

7

Gravely 09238600

Weldment, Spindle Sheave (Double) 6.00 (60" Deck)
(Superseded to 59202200)

Note: (Double) 6.00 (60" Deck)

$

$

Not available

7

Gravely 09242600

Weldment, Spindle Sheave-Double 5.00 (50" Deck)
(Superseded to 59202300)

Note: (50" Deck)

$

$

Not available

8

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

10

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07235100

V-Belt, B-RMA 63.40 x .625 (60" Deck)

Note: (60" Deck)

$142.99

$

In Stock, only 2 left!

0

11

Gravely 07234600

V-Belt, B-RMA 58.70 x .625 (50" Deck)

Note: (50" Deck)

$126.99

$

In Stock, only 3 left!

0

12

Gravely 07235000

V-Belt, B-RMA 23.94 x .625 (60" Deck)

Note: (60" Deck)

$52.99

$

In Stock, only 1 left!

0

12

Gravely 07234900

V-Belt, B-RMA 18.13 x .625 (50" Deck)

Note: (50" Deck)

$52.99

$

In Stock, only 2 left!

0

13

Gravely 034120

Arm,Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

14

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

16

Gravely 07325200

Idler-V 4.00 x .377
(Superseded to 07327600)

$38.99

$

In Stock, Qty 20+

0

17

Gravely 020444

Spring-Compression .085 x .80 x 1.00 WLD 36
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

18

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06223000

Bolt-Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

21

Gravely 034119

Spacer .560 x .750 x 2.437 Steel
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

22

Gravely 08334700

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

23

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 09244500

Assembly, Idler Pivot Arm

Note: (Contains Items 27, 28)

$158.99

$

Usually ships in 4-12 days

0

25

Gravely 09244400

Weldment, Idler Pivot Arm
(Superseded to 09244451)

$

$

Not available

26

Gravely 05434800

Bearing 1.000 x 1.125 x 1.00
(Superseded to 05435800)

$9.49

$

In Stock, only 4 left!

0

27

Gravely 0411027

Fitting-Lube .25-28 x .256

$

$

Not available

28

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

29

Gravely 034286

Idler-Flat 4.00 x .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

30

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

31

Gravely 08335100

Spring, Extension
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

32

Gravely 06223100

Bolt-Round Head Square Neck .50-13 x 1.50 Grade 5 (50" Deck)
(Superseded to 06200421)

Note: (50" Deck)

$4.49

$

Usually ships in 4-12 days

0

32

Gravely 06223300

Bolt-Round Head Square Neck .50-13 x 1.75 Grade 5 (60" Deck)
(Superseded to 06224800)

Note: (60" Deck)

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

34

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

35

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
