992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 012000 & Above) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

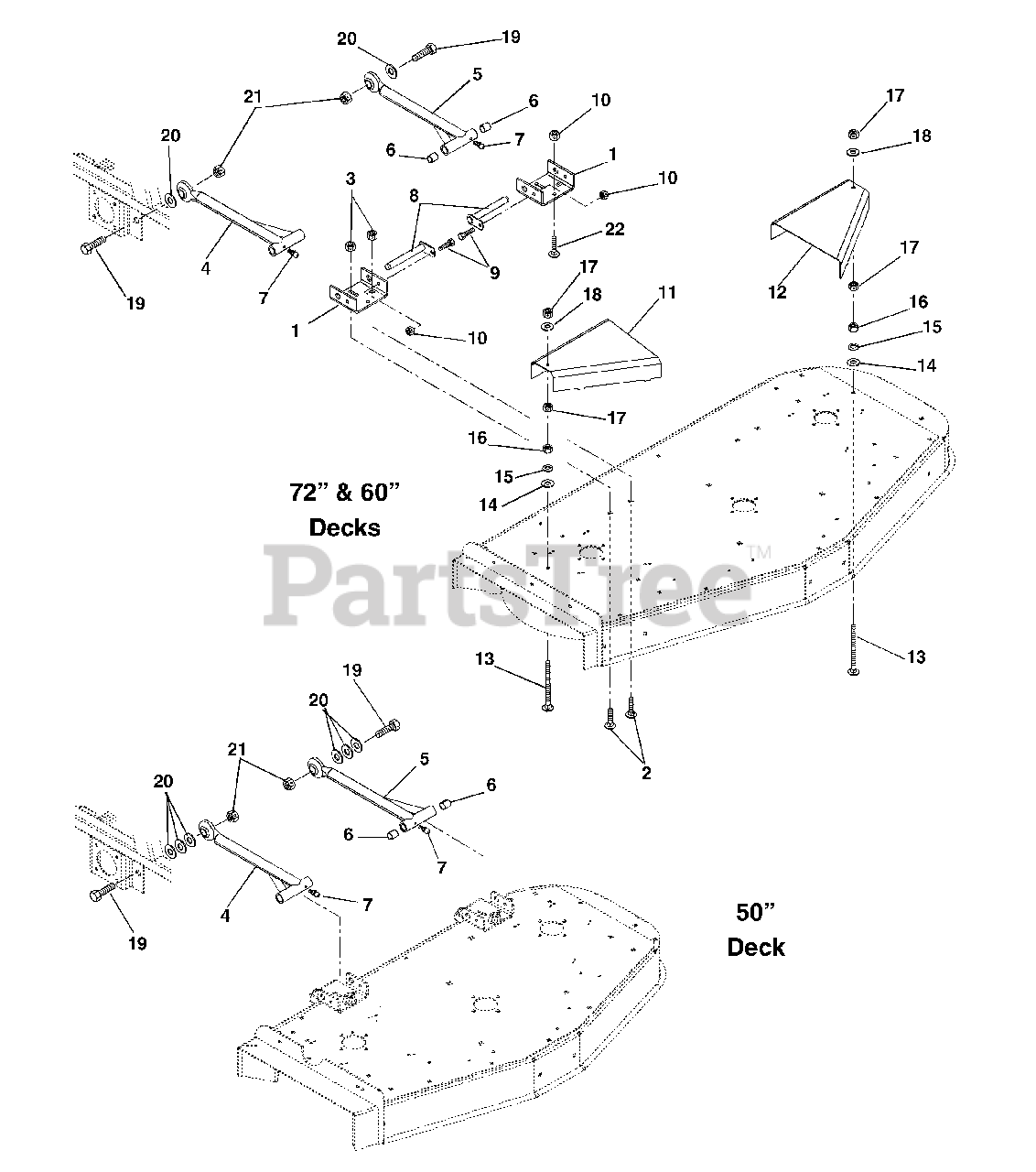

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (60" & 72" Deck)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 06215600

Bolt-Round Head Square Neck .50-13 x 1.00 Grade 2
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 09247800

Assembly, Mower Mounting Arm

Note: (Contains Items 5, 6)

$270.99

$

Usually ships in 4-12 days

0

Gravely 09250400

UNKNOWN

$

$

Not available

5

Gravely 09247953

Weldment-Mower Mounting Arm
(Superseded to 09247951)

$255.99

$

Usually ships in 4-12 days

0

6

Gravely 05433400

Bearing .75 x .875 x 1.00
(Superseded to 05435900)

$5.99

$

In Stock, only 3 left!

0

7

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

8

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

9

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09240753

Guard, Pulley Right Hand
(Superseded to 09240751)

Note: (60" Deck)

$46.99

$

In Stock, only 2 left!

0

11

Gravely 09246300

Guard, Pulley Right Hand
(Superseded to 09246351)

Note: (50" Deck)

$62.99

$

Usually ships in 4-12 days

0

11

Gravely 09252553

Guard, Pulley Right Hand

Note: (72" Deck)

$93.99

$

Usually ships in 4-12 days

0

12

Gravely 09240853

Guard, Pulley Left Hand
(Superseded to 09240851)

Note: (60" Deck)

$62.99

$

Usually ships in 4-12 days

0

12

Gravely 09246200

Guard, Pulley Left Hand

Note: (50" Deck)

$

$

Not available

12

Gravely 09252453

Guard, Pulley Left Hand

Note: (72" Deck)

$103.99

$

Usually ships in 4-12 days

0

13

Gravely 06221300

Bolt-Round Head Square Neck .31-18 x 3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

17

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05969500

Bolt-Hex .875-9 x 2.75 Grade 5

$7.99

$

In Stock, only 1 left!

0

20

Gravely 06444700

Washer-Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

Note: (60" & 72" Deck)

$3.99

$

In Stock, Qty 16

0

20

Gravely 06444700

Washer-Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

Note: (50" Deck)

$3.99

$

In Stock, Qty 16

0

21

Gravely 06539700

Nut-Locking-Center .875-9

$5.99

$

In Stock, Qty 11

0

22

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (60" & 72" Deck)

$2.49

$

In Stock, Qty 10

0

22

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (50" Deck)

$2.49

$

In Stock, Qty 10

0
