992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) MOTOR AND WHEELS Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

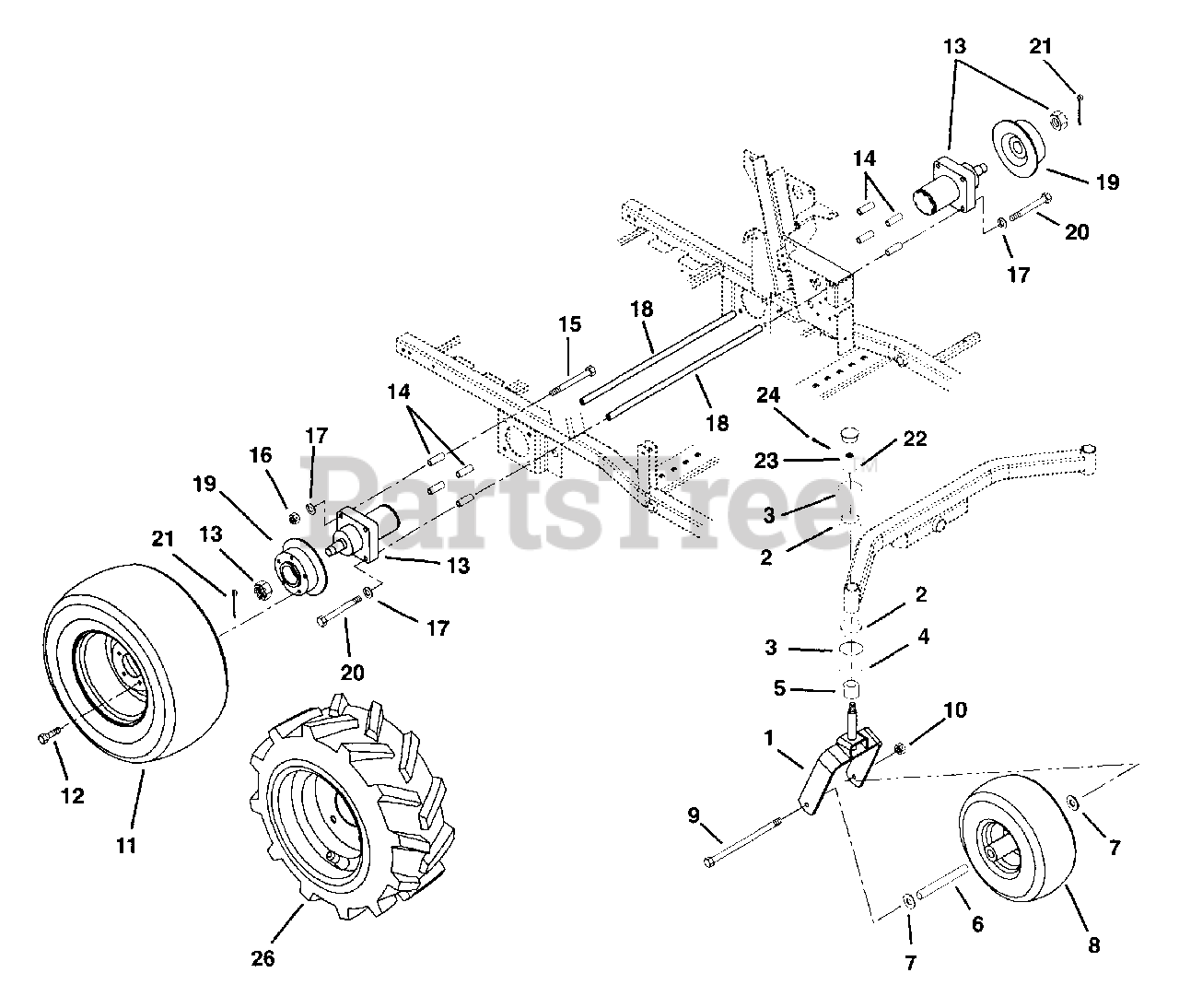

MOTOR AND WHEELS Parts Diagram

  • Title

1

Gravely 09247400

Fork-Front
(Superseded to 09247453)

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 05406900

Bearing-Cone 1.0 x .58

$18.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing-Cup 1.980 x .420

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, only 4 left!

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$7.99

$

In Stock, Qty 7

0

6

Gravely 09231800

Spacer-Wheel

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

Note: (Standard)

$193.99

$

In Stock, Qty 5

0

9

Gravely 05961200

Bolt-Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 07148900

Wheel-Tire 23 x 10.50 Multi-Trac
(Superseded to 07101116)

$290.99

$

In Stock, only 2 left!

0

12

Gravely 07014600

Bolt-Lug .50-20 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Gravely 09232300

Hydraulic Wheel Motor

$905.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.129

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

18

Gravely 09236200

Rod-Motor Connecting

$94.99

$

In Stock, only 1 left!

0

19

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

20

Gravely 05962300

Bolt-Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

21

Gravely 06714300

Pin-Cotter .12 x 1.50

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 00595500

Nut-Slotted .75-16

$3.49

$

In Stock, only 3 left!

0

24

Gravely 06712300

Pin-Cotter .16 x 1.00 EXTPRSQCT

$2.49

$

In Stock, Qty 5

0

25

Gravely 20655400

Cap-Dust

$10.99

$

In Stock, Qty 20+

0

26

Gravely 79200700

Wheel/Tire Kit, 260Z L. & R.

Note: (Optional). (Includes 1 L.H. & 1 R.H.)

$

$

Not available

26

Gravely 07149100

Wheel/Tire-L.H. 23 x 10.5-12 Tru Power

$

$

Not available

26

Gravely 07149200

Wheel/Tire-R.H. 23 x 10.5-12 Tru Power

$

$

Not available
