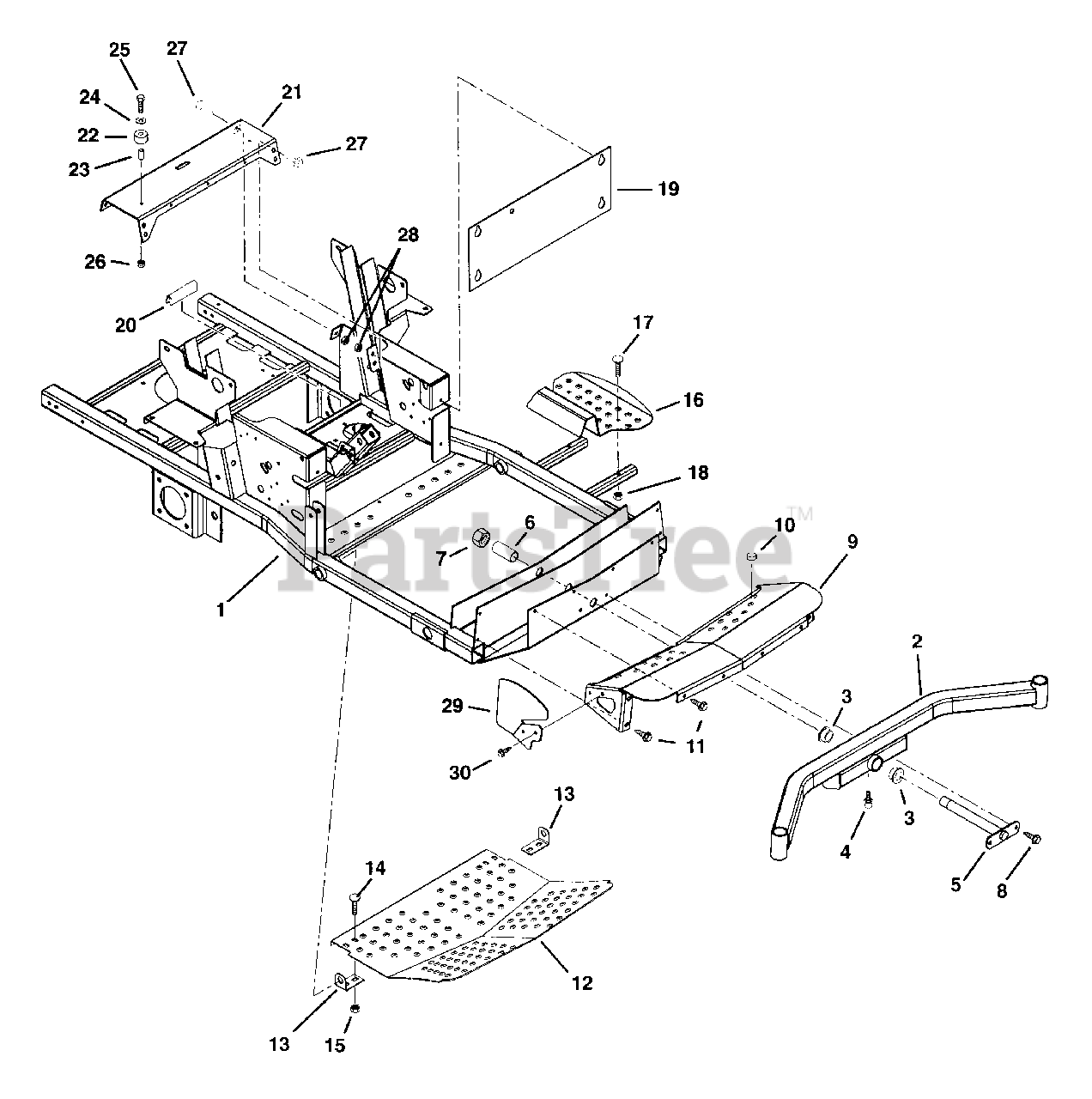

992018 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000500) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 25hp Kohler

FRAME Parts Diagram

  • Title

1

Gravely 09233000

Frame

$

$

Not available

2

Gravely 09247500

Axle-Front
(Superseded to 09247551)

$

$

Not available

3

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 12

0

4

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

5

Gravely 09232000

Pin-Axle

$68.99

$

In Stock, only 1 left!

0

6

Gravely 09231900

Spacer

$20.99

$

In Stock, only 2 left!

0

7

Gravely 06538400

Nut-Locking 1.0-14
(Superseded to 00181818)

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09233400

Cover-Axle

$

$

Not available

10

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

11

Gravely 07415400

Screw-Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09233300

Panel-Inspection
(Superseded to 09233353)

$112.99

$

Usually ships in 4-12 days

0

13

Gravely 09231000

Mount-Inspection Panel

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 09231200

Step-Ingress
(Superseded to 09231251)

$

$

Not available

17

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

18

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09234000

Plate-Kick

$

$

Not available

20

Gravely 049767

Strip-Cowl
(Superseded to 00918200)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 09246400

Channel-Cross

$

$

Not available

22

Gravely 024357

Bumper-Seat
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 034723

Bushing-Sleeve Steel .265 x .375 x .250
(Superseded to 08708300)

$12.99

$

Usually ships in 4-12 days

0

24

Gravely 06435800

Washer-Flat-Steel .312 x. 734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

26

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07004100

Screw-Flange Wiz Lock Hex Head

$

$

Not available

28

Gravely 07053300

Nut-Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

29

Gravely 09245000

Cover, Cylinder Rod End

$

$

Not available

30

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
