992015 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kohler (SN: 000124 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kohler

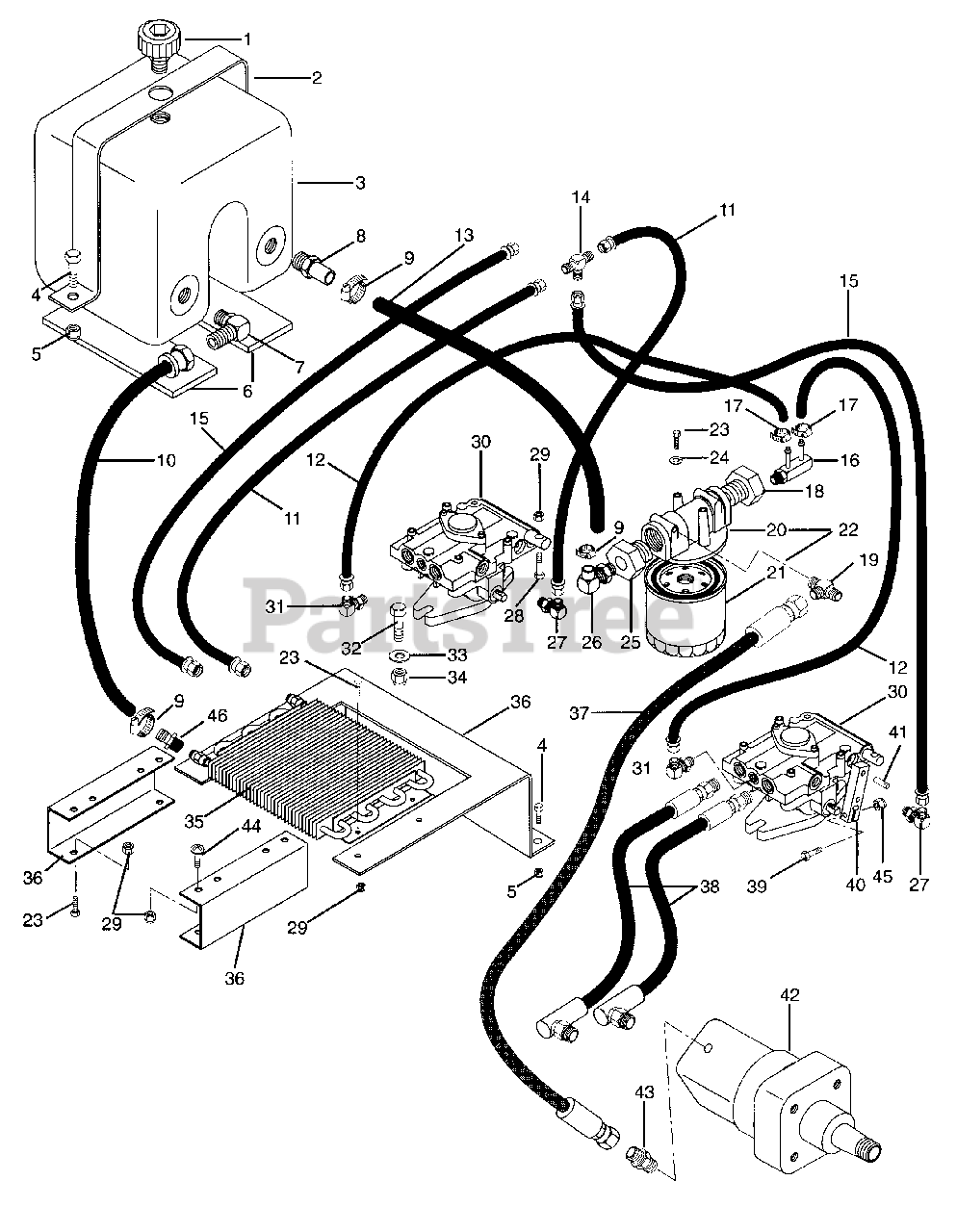

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 050507

Cap-Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

2

Gravely 050525

Strap-Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 050272

Tank-Hydraulic
(Superseded to 09032900)

$

$

Not available

4

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 031884

Pad-Gas Tank
(Superseded to 03301900)

$

$

Not available

7

Gravely 046072

Adapter .37 x .875
(Superseded to 07020000)

$

$

Not available

8

Gravely 045226

Fitting-Adapter 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021247

Clamp .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

10

Gravely 09106100

Hose-Hydraulic Cooler to Tank

Note: (015,016)

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 09223800

Hose-Hydraulic (Oil Cooler to Tank)

Note: (013,014)

$33.99

$

Usually ships in 4-12 days

0

11

Gravely 039847

Hose-Hydraulic Valve to Tank
(Superseded to 08811300)

Note: (015,016)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 039847

Hose-Hydraulic Valve to Tank
(Superseded to 08811300)

Note: (013,014)

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 09221300

Hose-Oil Filter to Pump

$

$

Not available

13

Gravely 046379

Hose .50 Inside Diameter x .75 OD
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 021799

Adapter-Tee .56-18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

15

Gravely 053103

Hose-Pump to Tee
(Superseded to 08856400)

Note: (015,016)

$45.99

$

Usually ships in 4-12 days

0

15

Gravely 053103

Hose-Pump to Tee
(Superseded to 08856400)

Note: (013,014)

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 081178

Fitting-Pipe .563-18

$

$

Not available

17

Gravely 052577

Clamp-Hose 1.50 x .81 x 1.42
(Superseded to 06922100)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 07026500

Adapter-Hydraulic 6410-12-06

$

$

Not available

19

Gravely 07027500

Adapter-Hydraulic 2601-04-04-04 1

$

$

Not available

20

Gravely 09221100

Head-Oil Filter

$

$

Not available

21

Gravely 04108100

Replacement Element 921999

$50.99

$

Usually ships in 4-12 days

0

22

Gravely 09204900

Assembly-Filter

$

$

Not available

23

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07020600

Adapter-Hydraulic .88-14

$

$

Not available

26

Gravely 050192

Fitting
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

27

Gravely 018828

Adapter 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 053330

Variable Displace Pump 2
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

31

Gravely 040723

Adapter 2503-6-4
(Superseded to 08936400)

$

$

Not available

32

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 053101

Cooler-Oil
(Superseded to 08856200)

$

$

Not available

36

Gravely 09224900

Bracket-Oil Cooler
(Superseded to 09224951)

Note: (015,016)

$

$

Not available

36

Gravely 09222100

Bracket-Oil Cooler
(Superseded to 09222151)

Note: (013,014)

$

$

Not available

37

Gravely 092219000

Hose Assembly-Motor to Oil Filter

$

$

Not available

38

Gravely 09220500

Assembly-Hose Wheel Motor to Pump

$

$

Not available

39

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

40

Gravely 08880700

Arm-Pump Actuating

$

$

Not available

41

Gravely 051889

Pin-Dowel .312 x 1.25
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0

42

Gravely 09200500

Motor-Wheel

$879.99

$

Usually ships in 4-12 days

0

43

Gravely 021286

Adapter 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 06118000

Screw-Machine-Hex-Washer-Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 07032400

Adapter-Male .38 x .50

$3.49

$

Usually ships in 4-12 days

0
