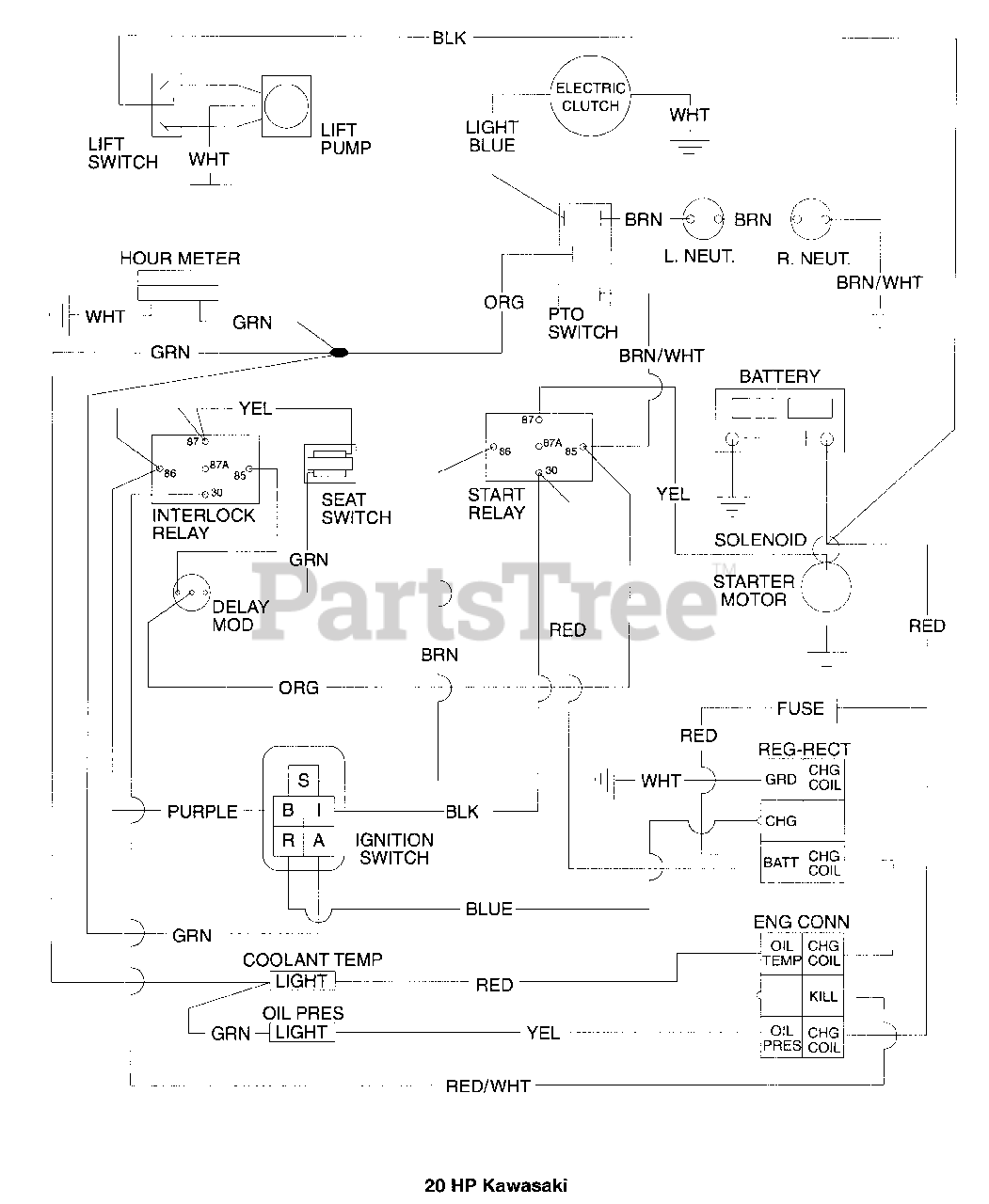

992013 (PM 200) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki (SN: 000101 & Above) WIRING DIAGRAM (20 HP KAWASAKI) Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Kawasaki

WIRING DIAGRAM (20 HP KAWASAKI) Parts Diagram
