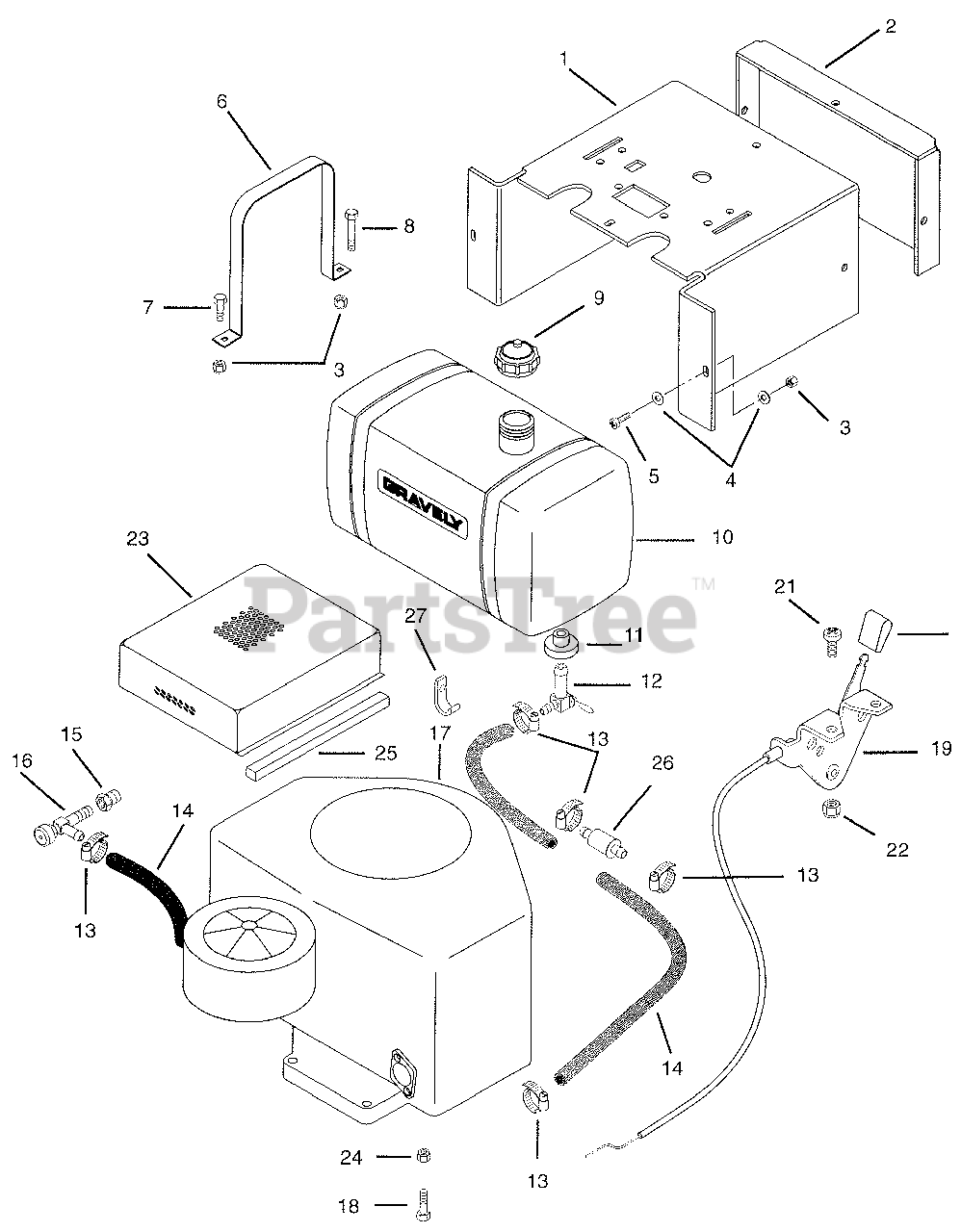

992009 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000175) Fuel & Exhaust System Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

Fuel & Exhaust System Parts Diagram

  • Title

1

Gravely 09102200

Panel, Silkscreen (007, 008, 009, 012, 302)
(Superseded to 59100300)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 09222500

Panel, Silkscreen (010, 011)

Note: (010, 011)

$

$

Not available

2

Gravely 09106700

Cover, Instrument Panel

$

$

Not available

3

Gravely 06506600

Nut Locking Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 06412700

Washer Flat Steel .281 X .620 X .065
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06113500

Screw Machine .25-20

$2.99

$

In Stock, only 3 left!

0

6

Gravely 09220700

Strap, Fuel Tank
(Superseded to 09220751)

$

$

Not available

7

Gravely 05932000

Bolt Hex .25-20 X .63

$1.99

$

In Stock, only 1 left!

0

8

Gravely 05908300

Bolt Hex .25-20 X 1.00 Grade 5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

9

Gravely 07533400

Cap, Fuel Tank

$22.99

$

In Stock, only 1 left!

0

10

Gravely 09220600

Tank, Fuel PM 200
(Superseded to 59200400)

$

$

Not available

11

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

12

Gravely 09203000

Fitting, Tank

$

$

Not available

13

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 00924300

Gas Line Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03493100

Adapter, Oil Drain (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$5.99

$

Usually ships in 4-12 days

0

Gravely 09222300

Adapter, Oil Drain (010, 011)

Note: (010, 011)

$33.99

$

Usually ships in 4-12 days

0

16

Gravely 03493200

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 08238100

Engine, 20 HP Kohler CV20S (008,9,302)

Note: (008,9,302)

$

$

Not available

Gravely 08240000

Engine, Kaw 20 HP (010, 011)

Note: (010, 011)

$

$

Not available

Gravely 08242300

Engine, 25 HP Kohler CV25S (007)

Note: (007)

$

$

Not available

Gravely 08245700

Engine, Kohler Command 22 HP (012)

Note: (012)

$

$

Not available

18

Gravely 07403000

Screw Tapping .375-16 X 1.0 (007, 008, 009, 012, 302)
(Superseded to 07417500)

Note: (007, 008, 009, 012, 302)

$3.99

$

In Stock, only 2 left!

0

Gravely 05931300

Bolt Hex M8 X 1.25 X 25 MM (010, 011)
(Superseded to 05964900)

Note: (010, 011)

$2.49

$

Usually ships in 4-12 days

0

Gravely 05946600

Bolt Hex M8 X 1.25 X 55 MM (010, 011)
(Superseded to 05969600)

Note: (010, 011)

$

$

Not available

19

Gravely 06923300

Assembly, Throttle Control (007, 008, 009, 012, 302)

Note: (007, 008, 009, 012, 302)

$

$

Not available

Gravely 06925000

Assembly, Throttle Control (010, 011)
(Superseded to 06941100)

Note: (010, 011)

$45.99

$

Usually ships in 4-12 days

0

20

Gravely 07501900

Knob

$

$

Not available

21

Gravely 06113300

Screw Machine 10-32 X .50

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06502800

Nut Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 09223100

Weldment, Pre Cleaner Screen (010, 011)
(Superseded to 09223151)

Note: (010, 011)

$

$

Not available

24

Gravely 06528900

Nut Hex M8 X 1.25 (010, 011)
(Superseded to 06541700)

Note: (010, 011)

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 09201700

Pad, Pre Cleaner Screen (010, 011)

Note: (010, 011)

$

$

Not available

26

Gravely 08811700

Filter, Fuel (010, 011)

Note: (010, 011)

$10.99

$

Usually ships in 4-12 days

0

27

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 5

0
