992009 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 - 000175) 50" Mower Deck Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

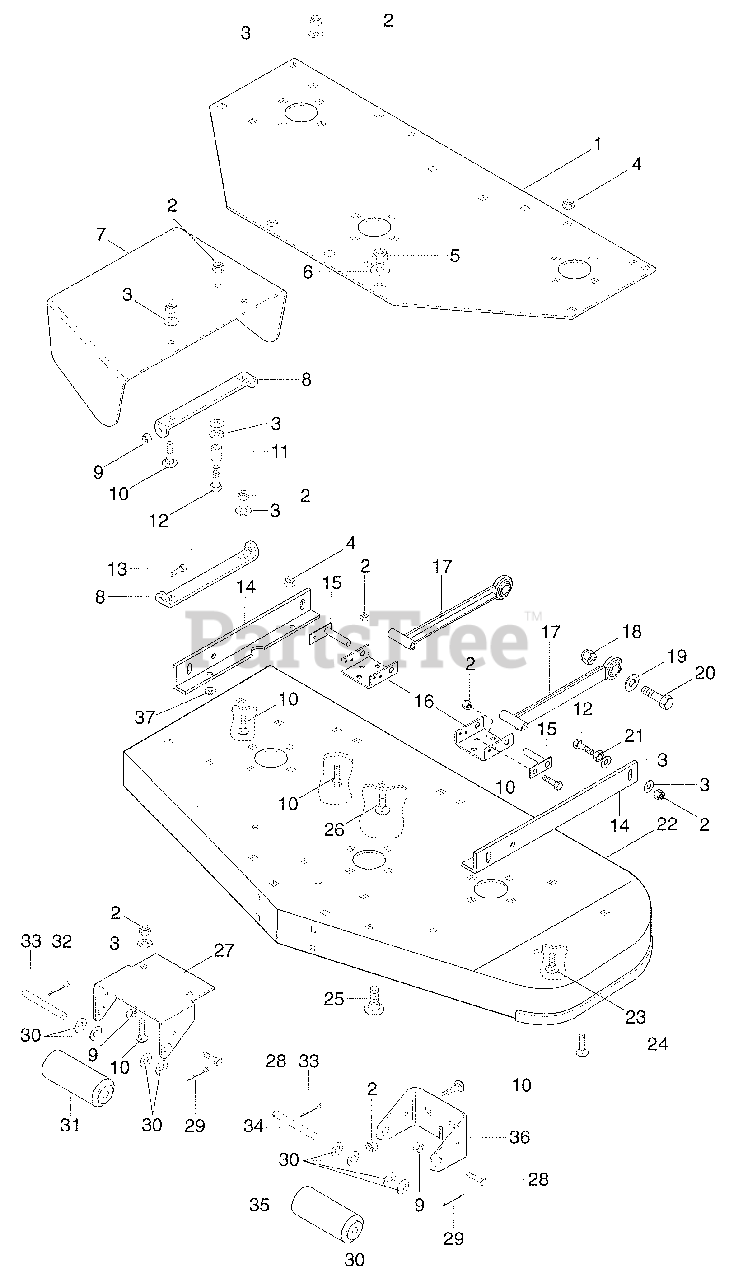

50" Mower Deck Parts Diagram

  • Title

1

Gravely 08850100

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 06513500

Nut Locking Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06404300

Washer Flat Steel .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06506200

Nut Locking Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06512900

Nut Locking Nylon .50-13 Grade 2
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06430200

Washer Flat Steel .531 X 1.250 X .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 08850600

Shield, Safety External 50" Mower

$

$

Not available

8

Gravely 08827600

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

9

Gravely 06506600

Nut Locking Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 06202900

Bolt Round Head Square Neck .38-16 X 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

11

Gravely 05525700

Bushing Sleeve .407 X .625 X .750

$7.49

$

In Stock, only 1 left!

0

12

Gravely 05915100

Bolt Hex .38-16 X 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

13

Gravely 05934000

Bolt Hex .25-20 X .875

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 09209700

Bracket 50" Mower Mounting LH
(Superseded to 09209753)

$22.99

$

Usually ships in 4-12 days

0

Gravely 09209600

Bracket 50" Mower Mounting RH
(Superseded to 09209653)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 09213700

Weldment, Mower Mounting Pin

$

$

Not available

16

Gravely 09209800

Bracket, Mower Mounting Rear
(Superseded to 09209853)

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 09209500

Weldment, Mower Mounting Arm
(Superseded to 09209553)

$113.99

$

Usually ships in 4-12 days

0

18

Gravely 06528100

Nut Locking .875-9

$

$

Not available

19

Gravely 06416300

Washer Flat Steel .875 X 1.500 X .1196
(Superseded to 06444700)

$3.99

$

In Stock, Qty 16

0

20

Gravely 05945900

Bolt Hex .87-9 2.75 Grade 5
(Superseded to 05969500)

$7.99

$

In Stock, only 1 left!

0

21

Gravely 06501800

Nut Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 08849100

Weldment, 50" Mower Fabricated

$

$

Not available

23

Gravely 06216500

Bolt Round Head Square Neck .31-18 X .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06217200

Bolt Round Head Square Neck .31-18 X 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06218100

Bolt Round Head Square Neck .50-13 X 1.00
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

26

Gravely 06216700

Bolt Round Head Square Neck .375-16 X .75 Grade 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 09012300

Bracket, Roller RH

$77.99

$

In Stock, only 2 left!

0

28

Gravely 05908200

Bolt Hex .25-20 X .75 Grade 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06705000

Pin Cotter .250 X 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06400400

Washer Flat Steel .656 X 1.312 X .095
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 08803300

Roller, Gage

$37.99

$

In Stock, only 1 left!

0

32

Gravely 06706100

Pin Cotter .25 X 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

33

Gravely 08598800

Shaft, Center Roller

$60.99

$

In Stock, only 1 left!

0

34

Gravely 08966900

Rod

$56.99

$

Usually ships in 4-12 days

0

35

Gravely 07520100

Roller, Gage

$26.99

$

Usually ships in 4-12 days

0

36

Gravely 08966800

Bracket, Roller
(Superseded to 08966853)

$

$

Not available

37

Gravely 03488200

Bushing .406 X .750 X .188

$5.99

$

In Stock, Qty 6

0
