992007 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) 60" Mower Drive Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

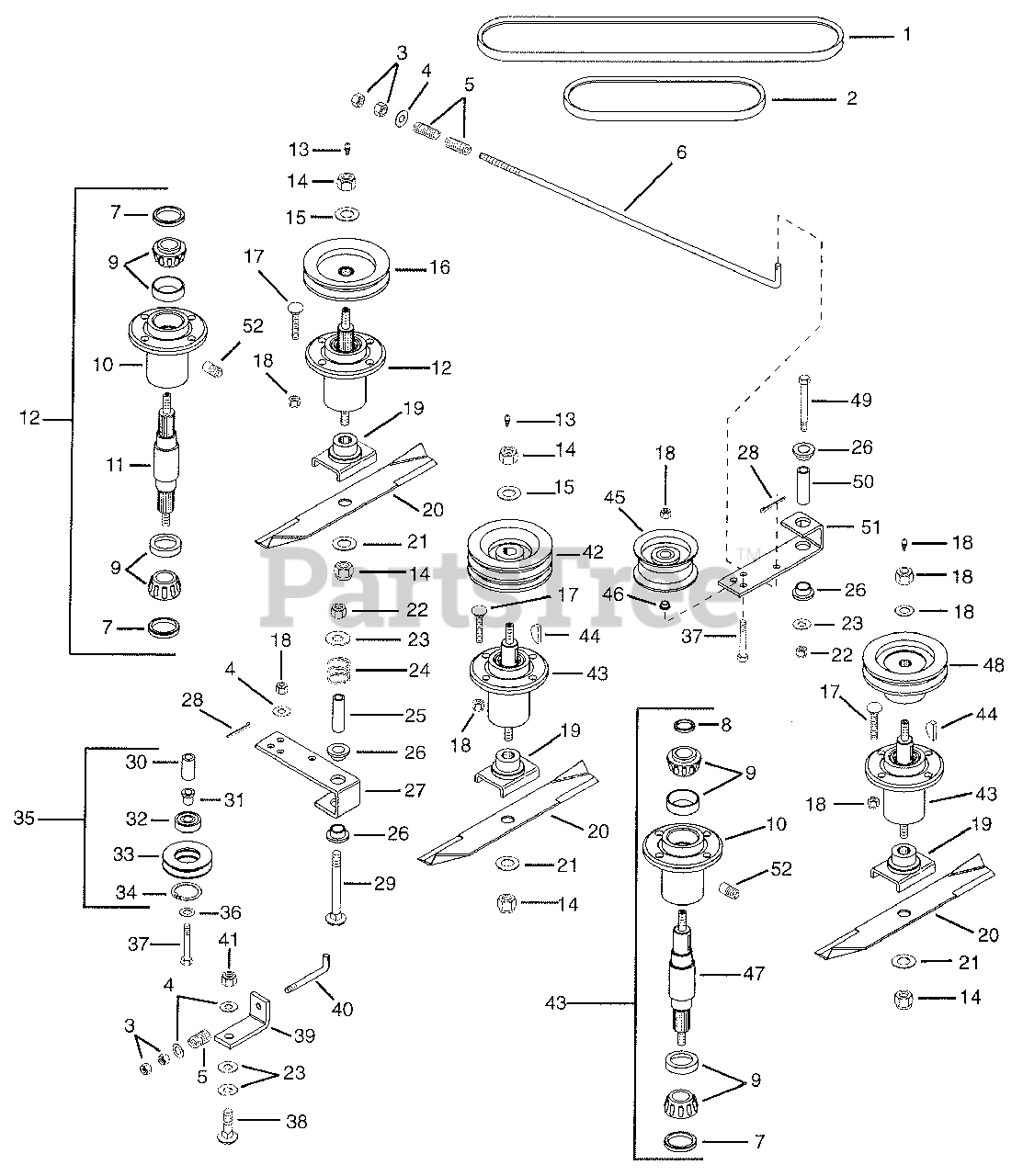

60" Mower Drive Parts Diagram

  • Title

1

Gravely 07228800

Drive Belt 56.60 X 17/32

$92.99

$

Usually ships in 4-12 days

0

2

Gravely 07224300

Right Spindle Belt 24.90 X .500/.031

$42.99

$

In Stock, only 2 left!

0

3

Gravely 06501800

Nut Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06404300

Washer Flat Steel .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 08327000

Spring Compression .125 X .78 X 1.00

$15.99

$

In Stock, only 2 left!

0

6

Gravely 09220000

Rod, Idler

$

$

Not available

7

Gravely 05613000

Seal 1.987 X 1.375 X .313

$10.99

$

In Stock, only 2 left!

0

8

Gravely 05611400

Seal 1.987 X 1.500 X .313

$15.99

$

In Stock, only 1 left!

0

9

Gravely 21245800

Assembly, Bearing Cup & Cone
(Superseded to 00145555)

$25.99

$

In Stock, Qty 20+

0

10

Gravely 08894500

Bearing Housing

$

$

Not available

11

Gravely 08722800

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

12

Gravely 58801800

Service Kit Apindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

13

Gravely 07012500

Fitting, Lube 1/8

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06515800

Nut Locking Nylon .625-11 Grade 2
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06427400

Washer Flat Steel .687 X 1.312 X .135

$2.49

$

In Stock, only 2 left!

0

16

Gravely 08895100

Sheave

$168.99

$

Usually ships in 4-12 days

0

17

Gravely 06217600

Bolt Round Head Square Neck .38-16 X 1.375
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06513500

Nut Locking Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 08798700

Weldment Blade Cradle

$124.99

$

Usually ships in 4-12 days

0

20

Gravely 08979600

Blade, 60 Inch Mower

$35.99

$

Usually ships in 4-12 days

0

21

Gravely 06400400

Washer Flat Steel .656 X 1.312 X .095
(Superseded to 06442800)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06525800

Nut Locking .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 06430200

Washer Flat Steel .531 X 1.250 X .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 08329100

Spring Compression .085 X 1.00

$13.99

$

In Stock, only 1 left!

0

25

Gravely 08820500

Bushing Steel .560 X .750 X 2.44

$17.99

$

In Stock, only 1 left!

0

26

Gravely 05518400

Bushing Flange .762 X 1.0 X .580 X 1.48

$4.99

$

In Stock, Qty 20+

0

27

Gravely 08905900

Arm Idler Pivot

$82.99

$

Usually ships in 4-12 days

0

28

Gravely 06700200

Pin Cotter .09 X 1.0

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 06218500

Bolt Round Head Square Neck .50-16 X 3.50

$5.99

$

In Stock, only 1 left!

0

30

Gravely 08836500

Bushing Steel .406 X .625 X .480

$16.99

$

Usually ships in 4-12 days

0

31

Gravely 05521500

Bushing Flange .786 X 1.0 X .79

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 05425100

Bearing Ball 1.85 X .787 X .55

$

$

Not available

33

Gravely 08744300

Sheave Idler

$129.99

$

Usually ships in 4-12 days

0

34

Gravely 05713100

Ring Retaining Internal 2.054 X .062

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 08930300

Assembly Idler Sheave

$242.99

$

Usually ships in 4-12 days

0

36

Gravely 06425500

Washer Flat Steel .375 X 1.125 X .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

37

Gravely 05924300

Bolt Hex .38-16 X 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 06217500

Bolt Round Head Square Neck .38-16 X 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

39

Gravely 08928800

Bracket Belt Tensioner

$

$

Not available

40

Gravely 08812600

Rod Idler

$109.99

$

Usually ships in 4-12 days

0

41

Gravely 06513500

Nut Locking Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 08896100

Sheave

$297.99

$

Usually ships in 4-12 days

0

43

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

44

Gravely 06608900

Key, Woodruff .25 X 1

$3.99

$

In Stock, Qty 18

0

45

Gravely 07317700

Idler Flat 4-.687 X .38
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

46

Gravely 05515800

Bushing Flange .406 X .88 X .270 X .140

$9.49

$

In Stock, only 4 left!

0

47

Gravely 08910600

Shaft Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

48

Gravely 08895800

Sheave

$219.99

$

Usually ships in 4-12 days

0

49

Gravely 05936100

Bolt Hex .50-13 X 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

50

Gravely 08815100

Bushing Steel .560 X .745 X 2.04

$21.99

$

In Stock, only 1 left!

0

51

Gravely 09202000

Weldment Idler Arm
(Superseded to 09202051)

$54.99

$

Usually ships in 4-12 days

0

52

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0
