992007 (PM 200) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) 60" Mower Deck Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

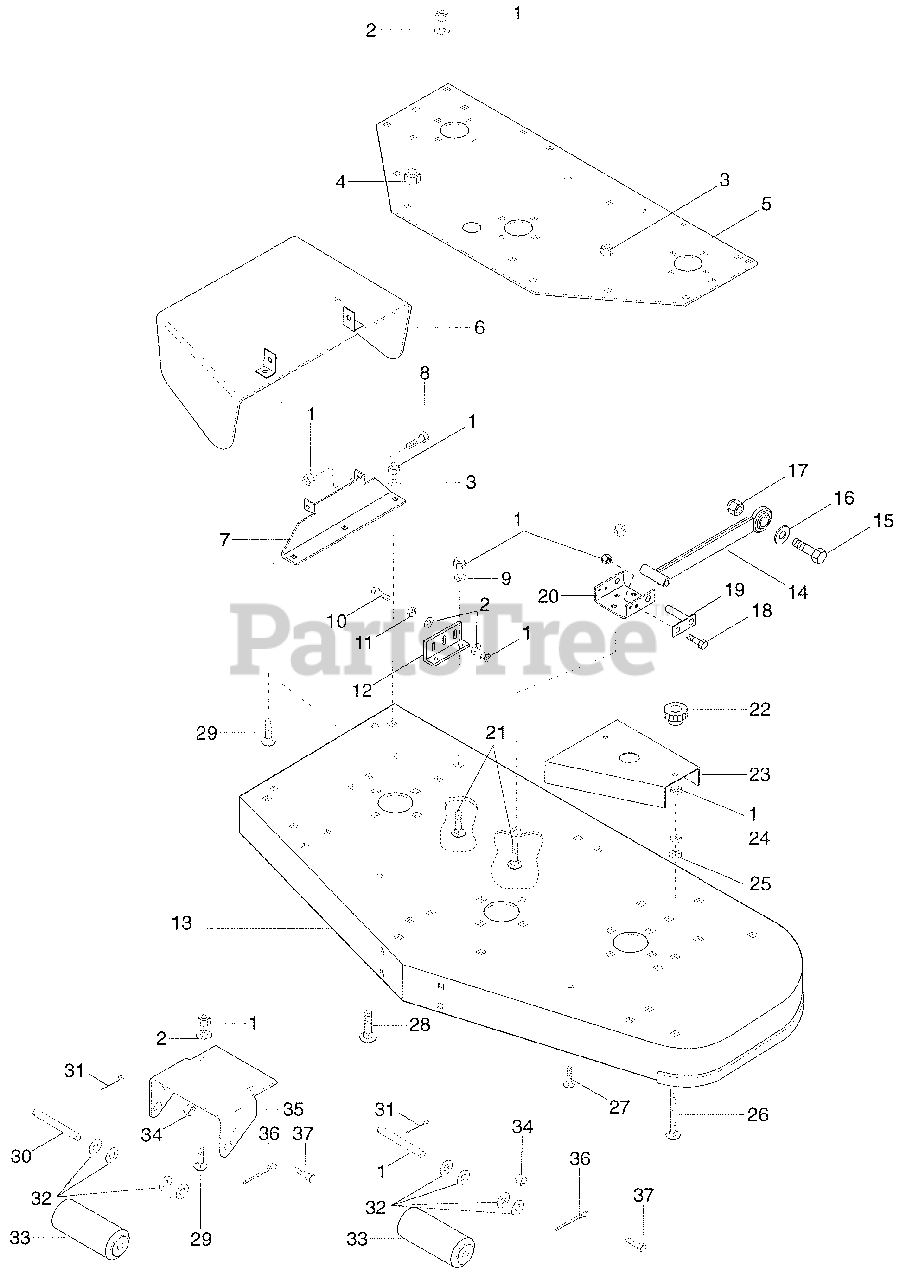

60" Mower Deck Parts Diagram

  • Title

1

Gravely 06513500

Nut Locking Nylon .375-16 Grade 2
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 06404300

Washer Flat Steel .406 X .812 X .065
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06506200

Nut Locking Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06512900

Nut Locking Nylon .50-13 Grade 2
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 09012900

Plate, 60" Support

$

$

Not available

6

Gravely 09012600

Weldment, Discharge Chute

$

$

Not available

7

Gravely 08990400

Bracket, Discharge

$54.99

$

Usually ships in 4-12 days

0

8

Gravely 05914500

Bolt Hex .38-16 X 1.00 Grade 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03488200

Bushing .406 X .750 X .188

$5.99

$

In Stock, Qty 6

0

10

Gravely 05915100

Bolt Hex .38-16 X 1.50 Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 15

0

11

Gravely 06501800

Nut Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 09210100

Bracket, Mower Mounting (60" Mower)
(Superseded to 09210153)

Note: (60" Mower)

$

$

Not available

13

Gravely 09210000

Weldment, Deck 60" Mower PM200
(Superseded to 09210053)

$

$

Not available

14

Gravely 09209500

Weldment, Mower Mounting Arm
(Superseded to 09209553)

$113.99

$

Usually ships in 4-12 days

0

15

Gravely 05945900

Bolt Hex .87-9 X 2.75 Grade 5
(Superseded to 05969500)

$7.99

$

In Stock, only 1 left!

0

16

Gravely 06414300

Washer Flat Steel .094 X .250 X .020

$

$

Not available

17

Gravely 06528100

Nut Loxking .875-9

$

$

Not available

18

Gravely 05915400

Bolt Hex .38-16 X .75 Grade 5I
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09213700

Weldment, Mower Mounting Pin

$

$

Not available

20

Gravely 09209800

Bracket, Mower Mounting (Rear)
(Superseded to 09209853)

Note: (Rear)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 06217500

Bolt Round Head Square Neck .38-16 X 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 07526600

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 09220400

Guard Pulley LH 60" Mower
(Superseded to 09220453)

$

$

Not available

Gravely 09220300

Guard Pulley RH 60" Mower
(Superseded to 09220353)

$

$

Not available

24

Gravely 06501500

Nut Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 06303600

Washer Lock .313 X .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06205200

Bolt Round Head Square Neck .31-18 X 3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06216500

Bolt Round Head Square Neck .31-18 X .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 06218100

Bolt Round Head Square Neck .50-13 X 1.00
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 06202900

Bolt Round Head Square Neck .38-16 X 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

30

Gravely 08598800

Shift, Center Roller

$60.99

$

In Stock, only 1 left!

0

31

Gravely 06706100

Pin Cotter .25 X 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

32

Gravely 06400400

Washer Flat Steel .656 X 1.312 X .095
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 08803300

Roller, Gage

$37.99

$

In Stock, only 1 left!

0

34

Gravely 06506600

Nut Locking Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 09012300

Bracket Roller RH

$77.99

$

In Stock, only 2 left!

0

36

Gravely 06705000

Pin Cotter .250 X 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 05908200

Bolt Hex .25-20 X .75 Grade 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0
